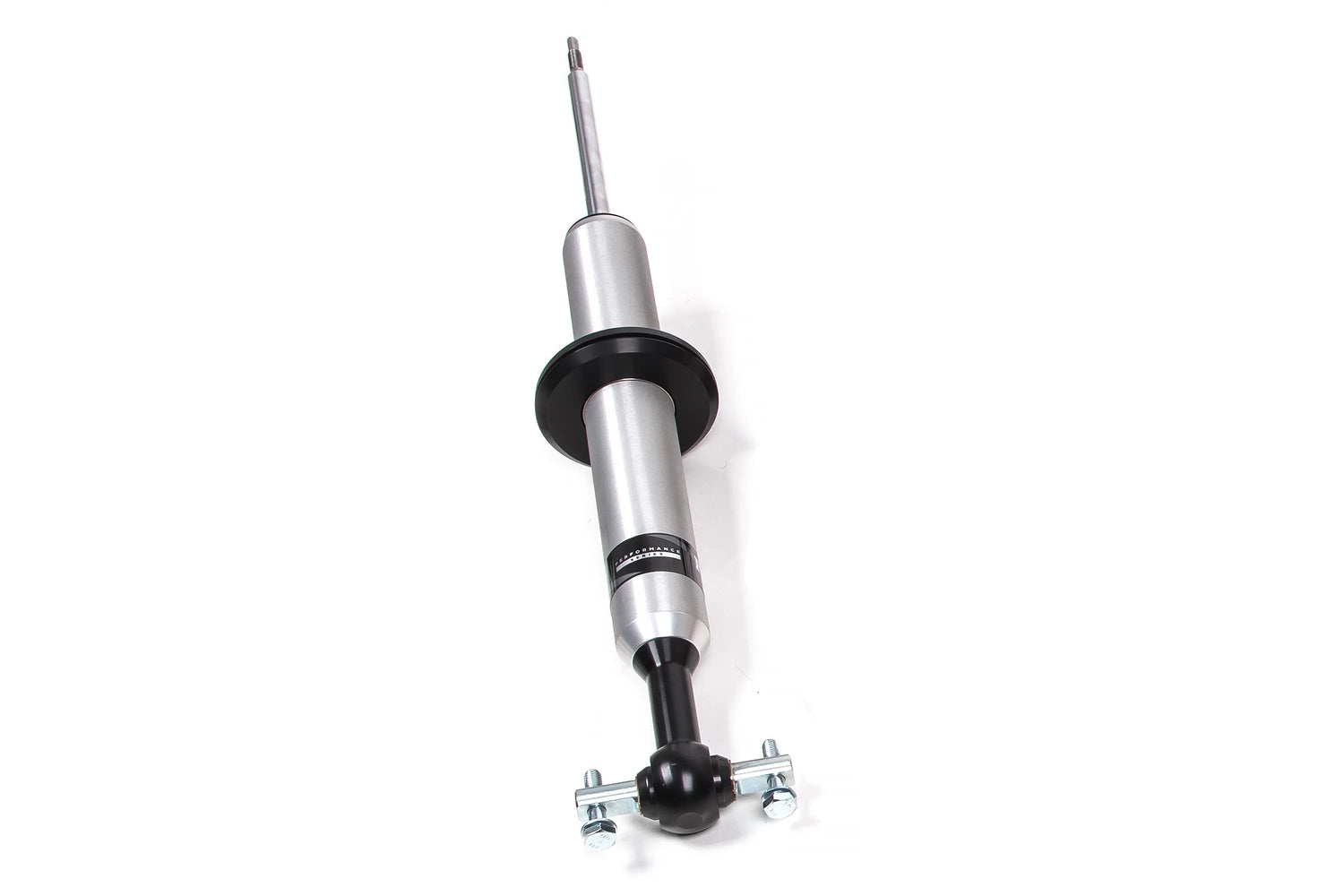

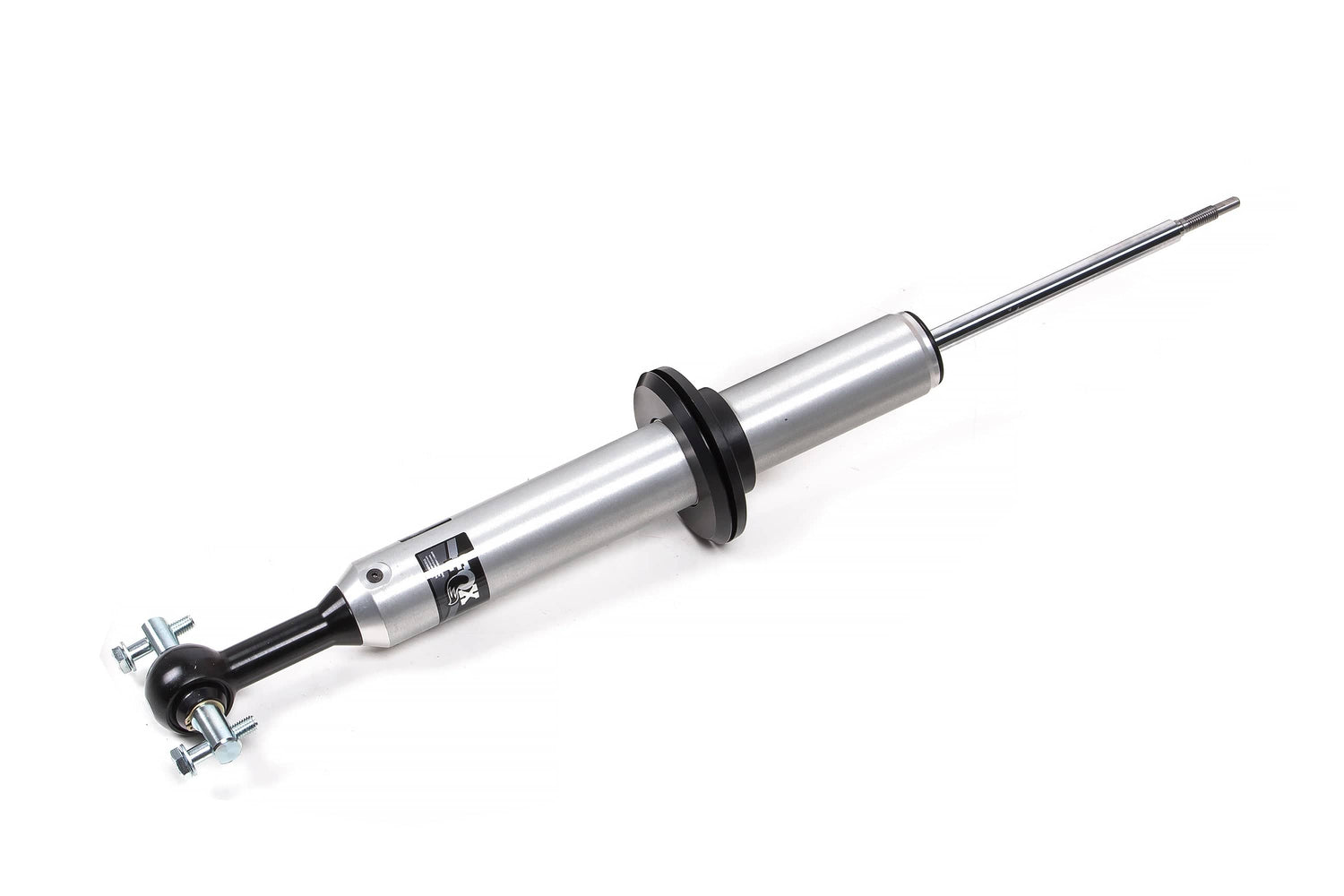

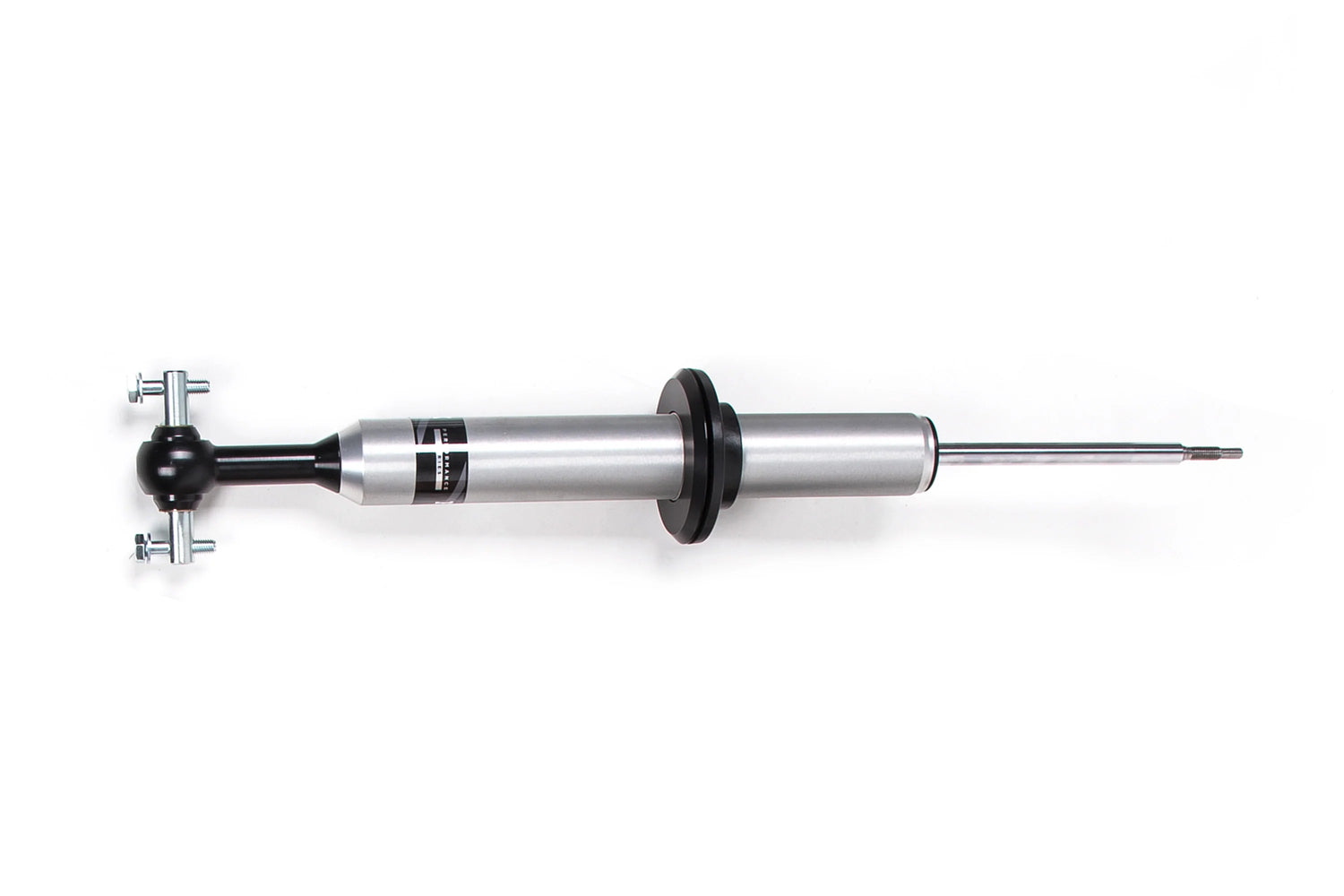

2007-2013 GM 1500 2.0 Series Front Strut 0-2" Lift (FOX98562004)

Improve on-road comfort and off-road control of your 2007-2013 Chevy Silverado or GMC Sierra 1500 with FOX Performance Series 2.0 Snap Ring IFP (internal floating piston) shocks. The mono-tube design’s internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

Features

• Custom-molded spring seat so you can reuse the stock spring and mounting hardware
• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Adjustable Damping : No
• Compressed Length : 15.46
• Extended Length : 19.79
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : BP7
• Lower Mount Type : Bar Pin
• Shaft Diameter : 5_8
• Travel Length : 4.33
• Type : Snap Ring Coil-Over
• Upper Mount Code : OEM
• Upper Mount Type : OEM
