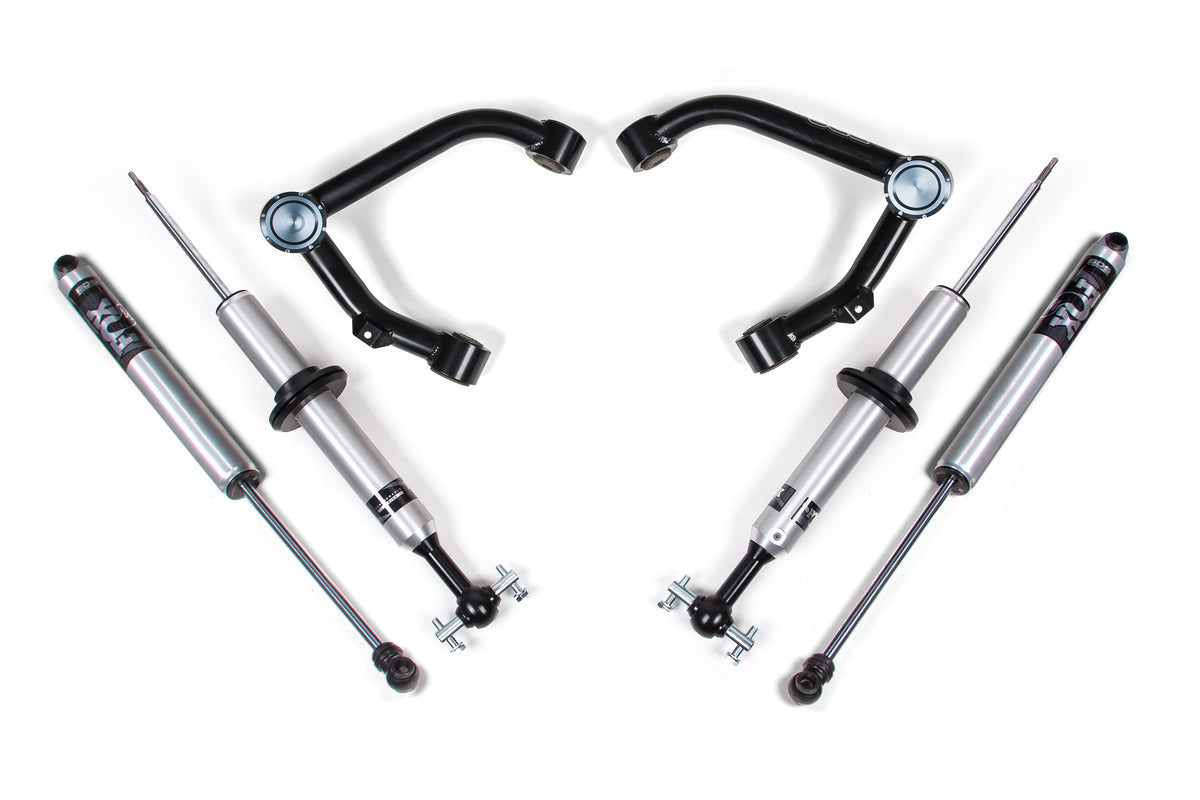

2007-2013 GM 1500 2" Lift Kit (BDS759FSR)

Upgrade your 2007-2013 Chevy Silverado and GMC Sierra 1500 with this BDS 2" lift kit featuring FOX 2.0 Snap Ring Struts, with clearance for up to 33" tires. Up front are FOX 2.0 Performance Series struts and heavy duty tubular upper control arms, with a matching set of FOX 2.0 Performance shocks in the rear. The mono-tube struts use an Internal Floating Piston to eliminate oil aeration, a custom-molded spring seat that reuses your stock spring, and three preload settings for 0", 1" or 2" of lift. The UCAs use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup, durometer-specific bushings and greaseable ball joints, finished in black powder coat.

Features

• FOX 2.0 Performance Series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

Recommended Tire & Wheel Fitment

• Tire Size: 285/70, 33x12.5
• Wheel Diameter: 20x9, 20x94.53

Notes

• Strut compressor required for installation.
• Snap ring strut kits will reuse factory top mounting hardware AND coil spring.
• 33x12.50 tires will require a weld-on steering stop and inner fender well modification to clear this width tire.
• Will not fit MagneRide magnetic ride control equipped models.

Includes

• BDS121151, 07-18 Chevy 1500 UCA Kit -Cast Steel UCA (UPC 658848618880)
• FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• FOX98562004, NF: 07-13 GM 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 4.3 inch, 0-2 inch Lift (UPC 711745603080)
