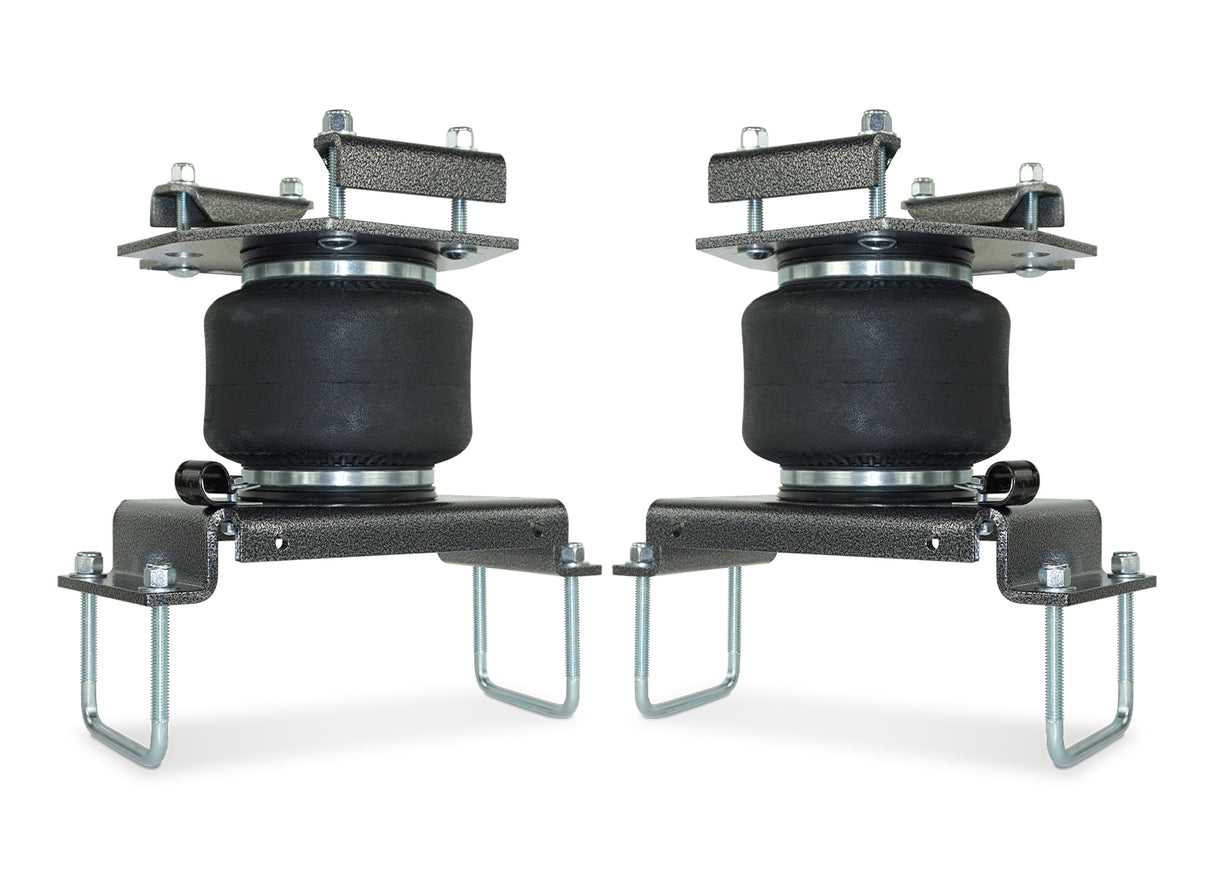

2007-2014 Sprinter Alpha HD Pro S Air Suspension Kit (HP10147-J-S)

Description

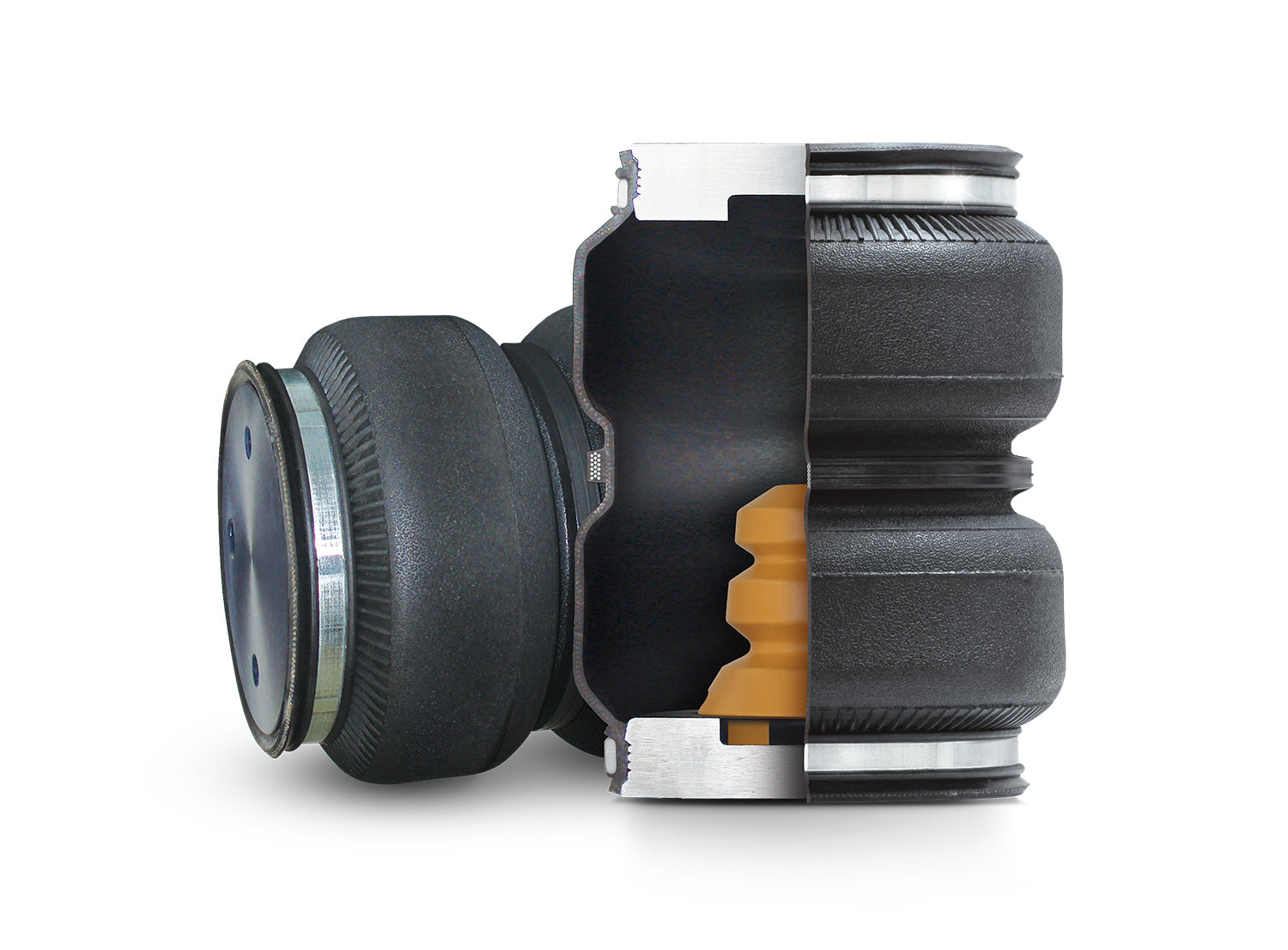

Eliminate truck sag, sway, and bottoming out with the ALPHA HD PRO S Air Suspension Kit for 2007-2014 Sprinters. Featuring durable air helper springs with corrosion-resistant end caps and strong support wires, it includes an internal polyurethane bumper to prevent damage. Designed for added strength and comfort, this kit allows use without air pressure when not towing. Options are available with or without the in-bag bump stop for tailored performance.

Part Number: HP10147-J-S

Features

• 5,000 lbs of load leveling capacity
• 2.5 hour install time
• Lifetime warranty
• Can be run at 0 psi

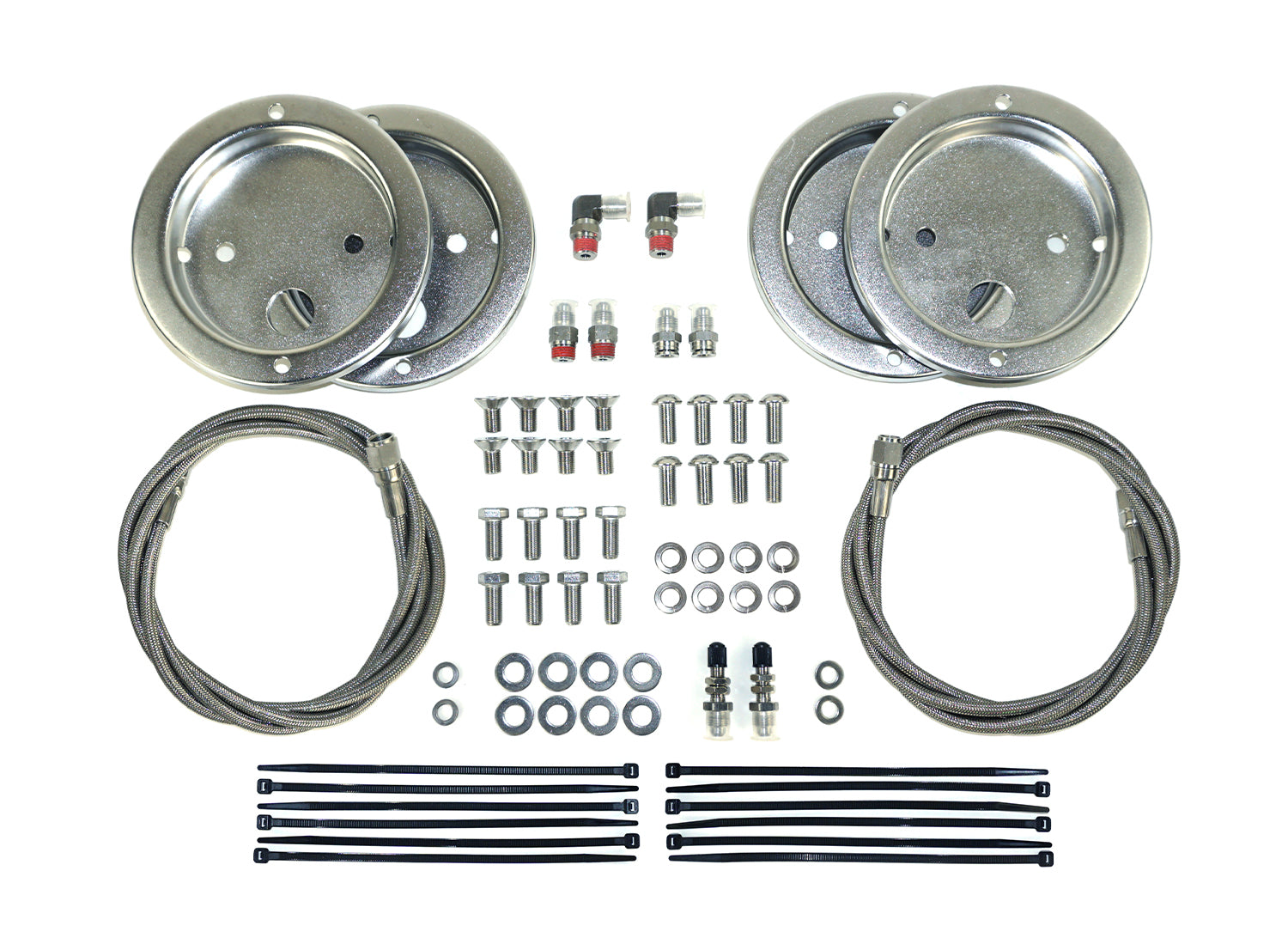

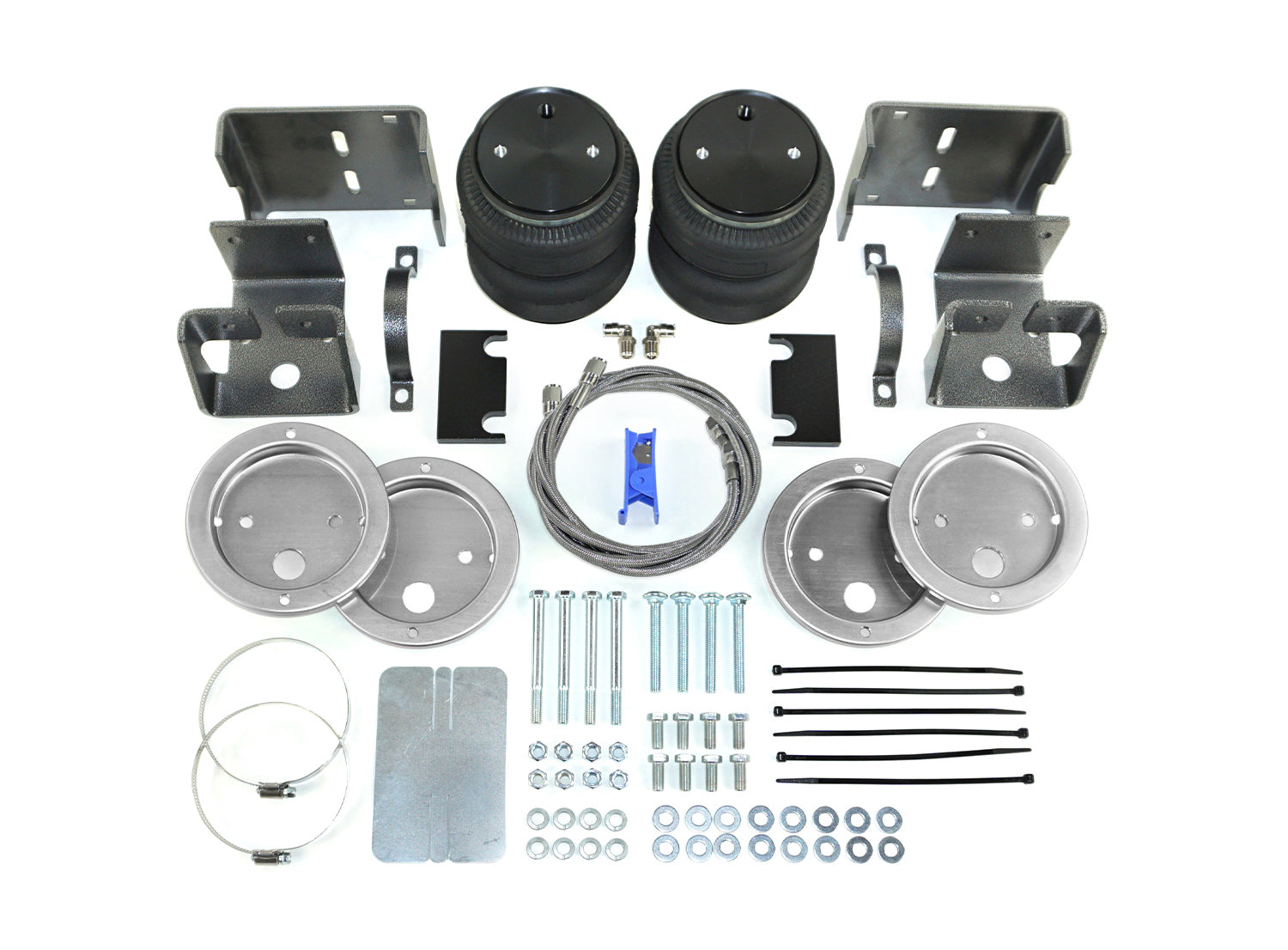

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

Installation

• Click Here
• Click Here - Stainless Steel Hardware
• Application Guide

Notes

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Additional Info

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP100147 ALPHA HD air bag.

Warranty

Parts Only

• Click Here
