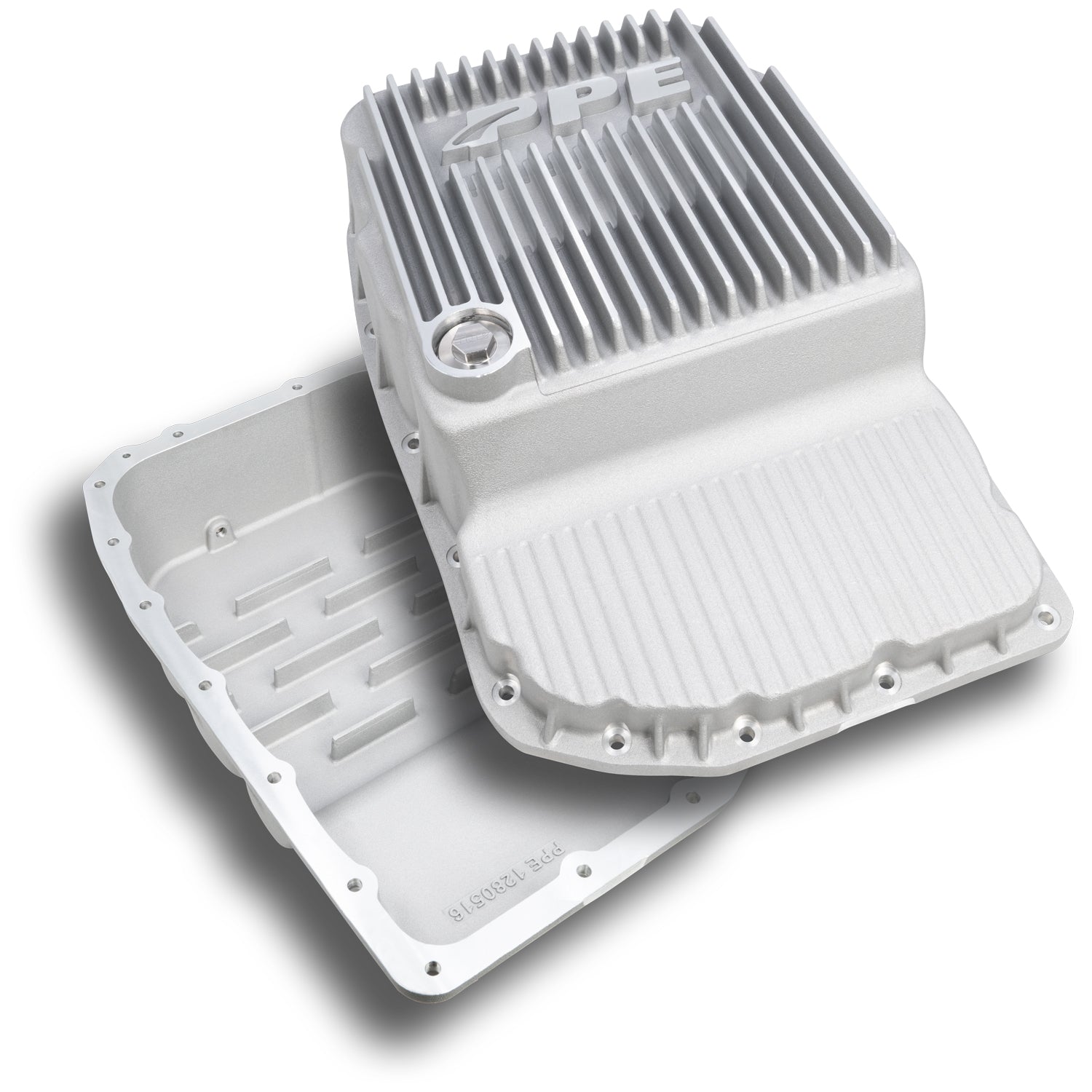

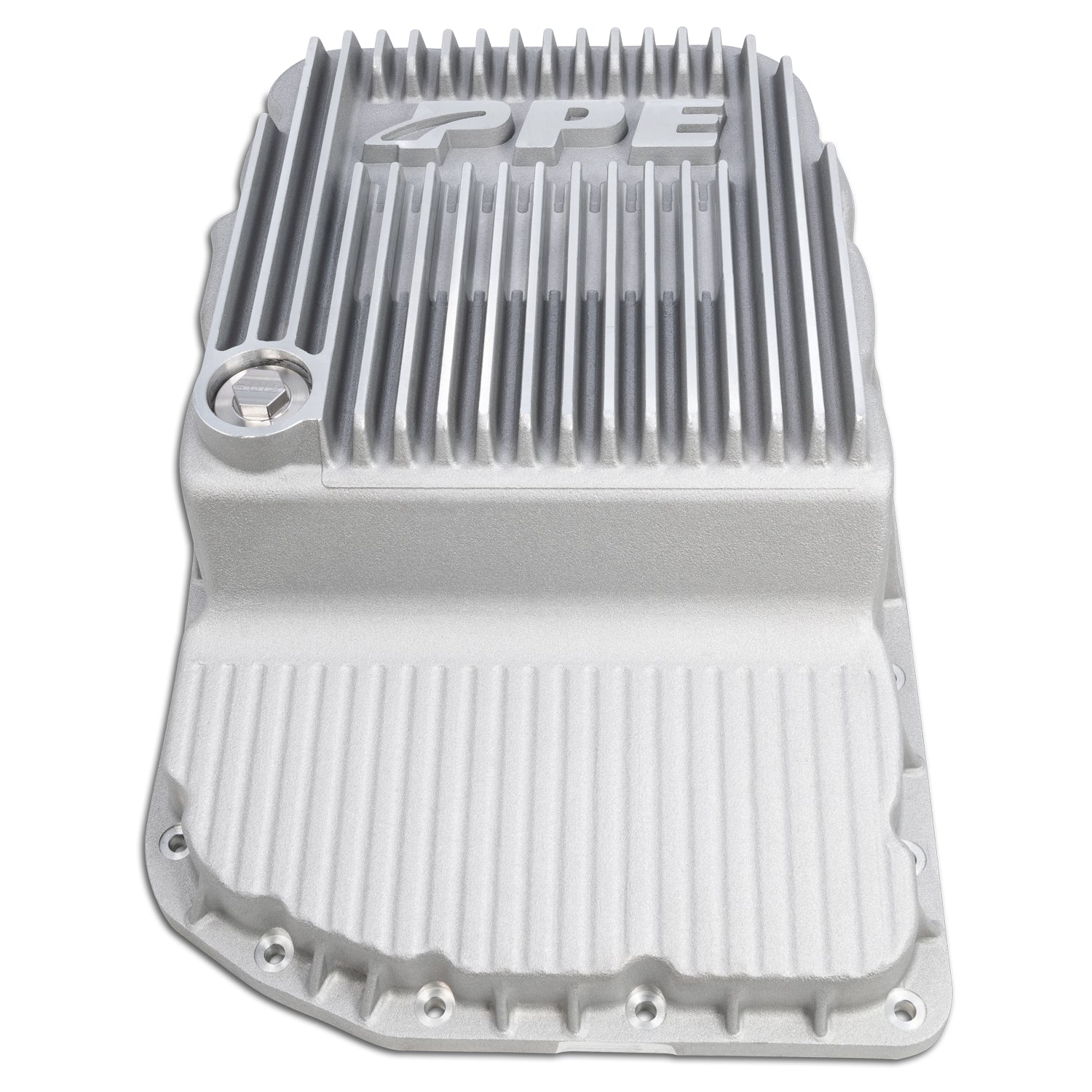

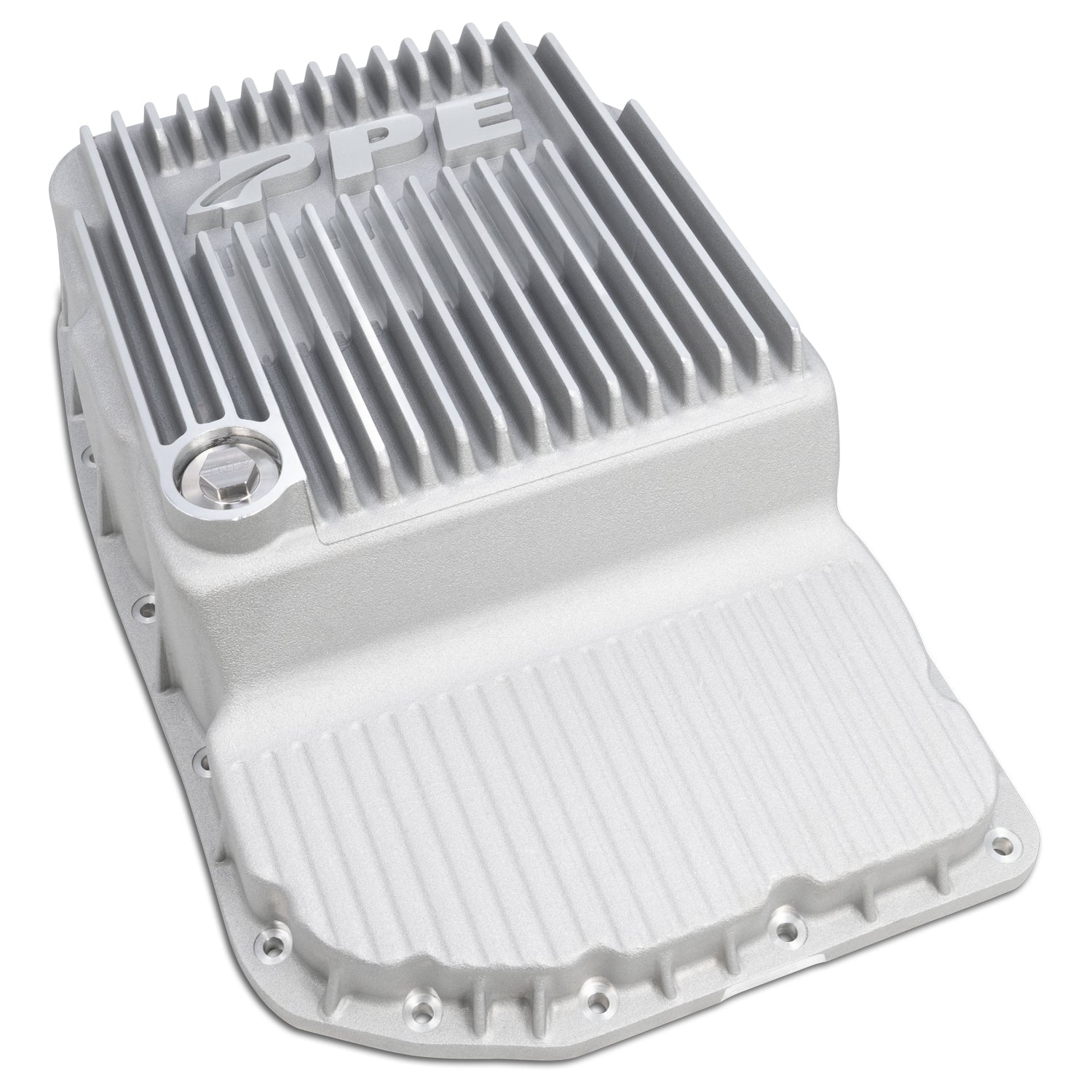

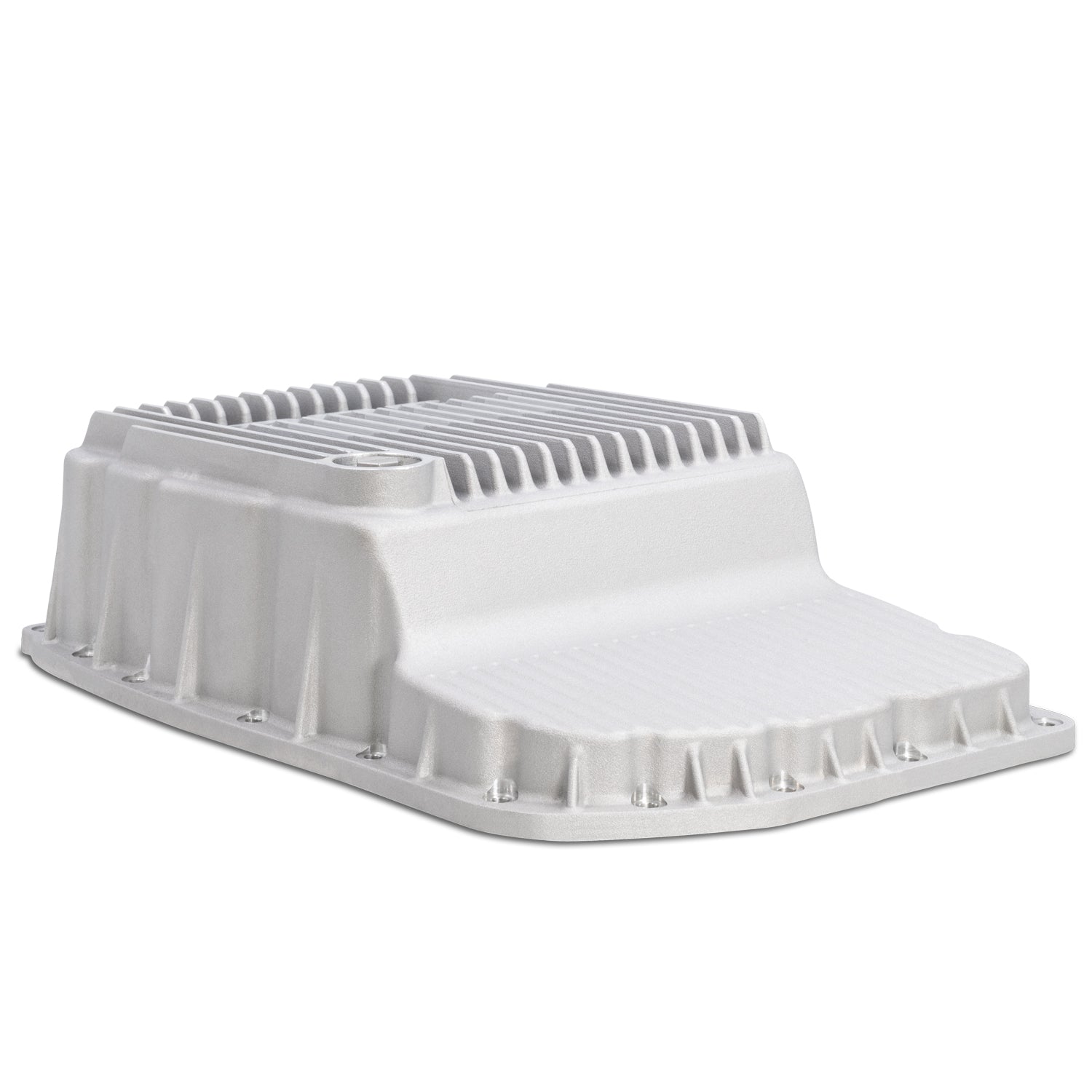

2007-2015 w/ 6L80 Heavy-Duty Cast Aluminum Transmission Pan Raw (128051600)

Description

Ditch the grit. Get rid of the dirtiest oil left in the valley of your stock pan from all your previous transmission oil changes. Upgrade the stock stamped steel pan to the PPE Heavy-Duty Cast Aluminum Pan. A conveniently located one-inch drain plug promotes a full transmission fluid drain.

Holding 1.5 quarts of extra fluid, the high-strength A356.0 cast aluminum features external cooling fins for optimal heat dissipation. Cooler transmission fluid lubricates better, which helps increase transmission life.

The PPE Heavy-Duty Transmission Pan also features a billet stainless steel drain plug with an integrated neodymium magnet. It keeps harmful ferrous metal particles out of the transmission internals.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 1.5 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

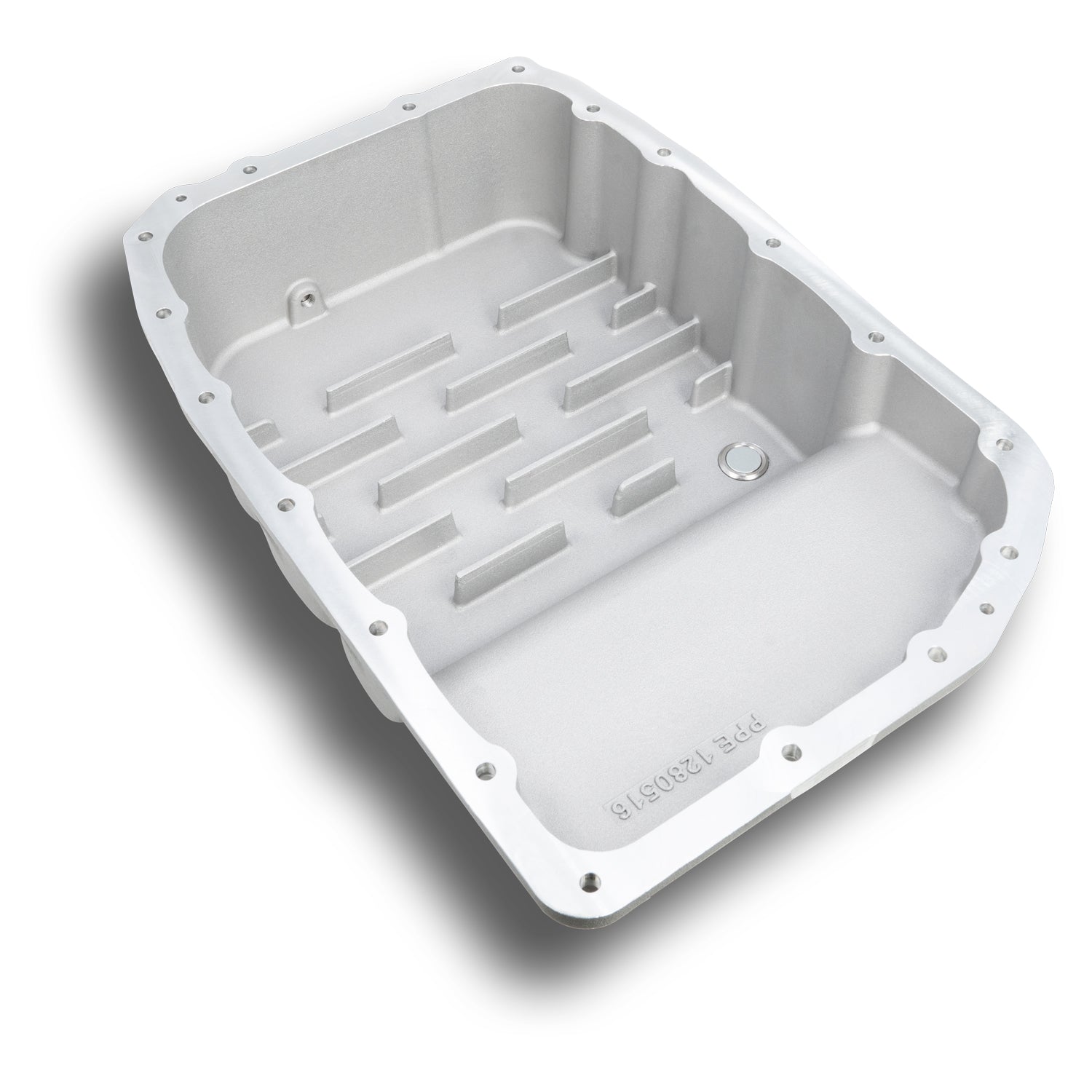

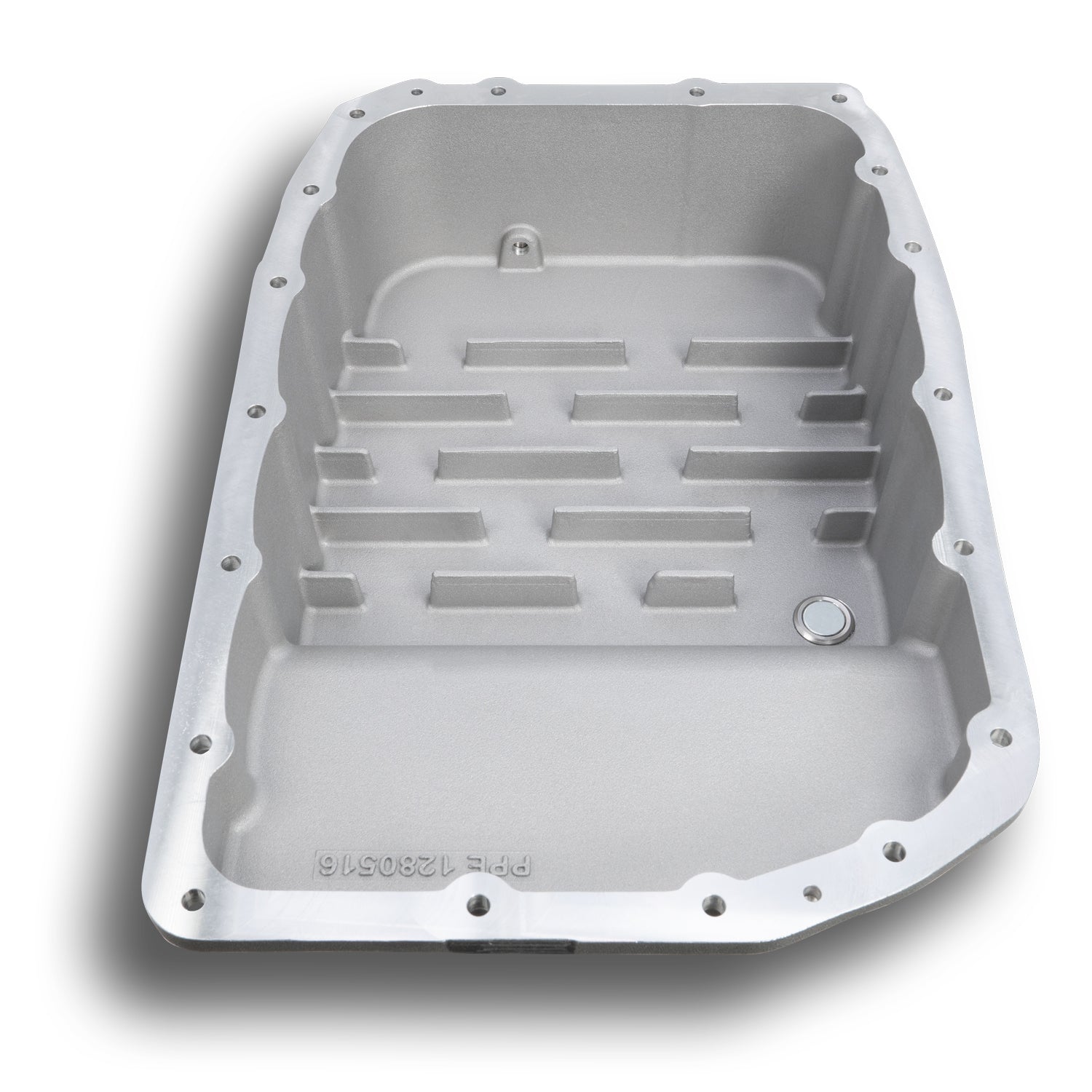

• Deep 11/16-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Compatible with OEM gasket and filter

Notes

Note: This pan is not compatible with OEM pan that has a level check plug.
