2007-2017 Wrangler JK Squadron R Sport Fog Pocket Kit (BAJ587503)

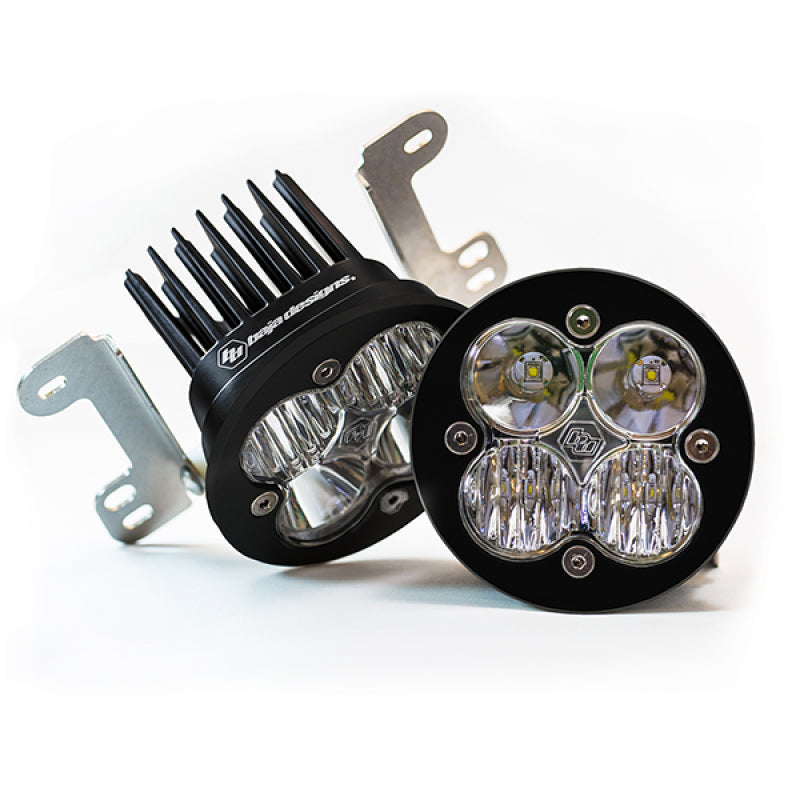

The Squadron-R Sport Fog Pocket Light Kit is a high-performance LED upgrade designed to replace factory-installed auxiliary lighting with professional-grade illumination. This kit features two Squadron-R Sport pods utilizing the Driving/Combo beam pattern, which integrates 42-degree wide cornering and 9-degree spot optics for a seamless blend of peripheral and distance lighting. The round bezel design provides a clean, integrated aesthetic, while the ClearView optics ensure maximum light transmission. Built with powder-coated cast aluminum housings and hard-coated polycarbonate lenses, these units are engineered to maintain peak output in the most punishing environments.

Features

• Driving/Combo beam pattern delivers a versatile spread for both near-field and mid-range visibility.
• ClearView optics project a crisp, high-fidelity light beam precisely where it is needed.
• uService technology allows for user-replaceable lenses and optics to quickly adapt to changing conditions.
• MoistureBlock system provides a permanent waterproof and submersible seal for extreme environmental protection.
• CopperDrive thermal management maximizes LED output while maintaining internal board stability.
• 5000K daylight color temperature replicates natural sunlight to reduce eye fatigue and improve contrast.

Specifications

• Brightness: 3,162 Lumens (per light)
• Wattage: 30 Watts (per light)
• Amperage: 2.2 Amps (per light)
• LED Life Expectancy: 49,930 Hours
• Housing Material: Powder Coated Cast Aluminum
• Bezel Material: Billet Machined Aluminum
• Lens Material: Hard Coated Polycarbonate
• Hardware Material: Stainless Steel

Notes

• Exceeds MIL-STD810G requirements for thermal shock, vibration, and mechanical impact.
• IP69K certified for total dust protection and resistance to high-pressure washdowns.
• IK10 compliant for high-energy mechanical impact resistance from debris or roost.
• Limited Lifetime Warranty provides complete purchase protection against manufacturer defects.
• Includes heavy-duty mounting brackets and stainless steel hardware for a secure installation.
