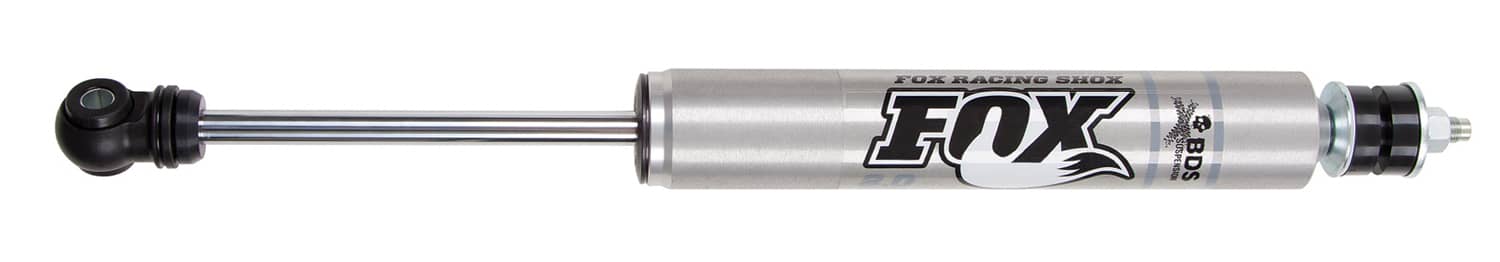

2007-2018 Wrangler Rear 2.0 Performance Series Fox Shock 3" Lift (FOX98224951)

Fox and BDS have joined forces to tailor each application to work perfectly with each BDS suspension system. The basic shock design is based on Fox Racing Shock products, but redesigned to turn your BDS-equipped truck or Jeep into an off-road machine. The shock body, made of 6061 T6 cold forged aluminum, dissipates heat three times faster than a conventional steel shock. The 2.0 Performance Series shock works as well as a 2.5 diameter shock on the same application. FOX Racing Shox formulated racing shock oil was developed for ultimate performance at varying temperatures.

Features

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Adjustable Damping : No
• Compressed Length : 16.75
• Extended Length : 26.35
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : EB1
• Lower Mount Type : Eyelet
• Shaft Diameter : 5_8
• Travel Length : 9.6
• Type : Smooth Body
• Upper Mount Code : BP18
• Upper Mount Type : Bar Pin
