2007-2018 GM 1500 2" Lift Kit (BDS757FSL)

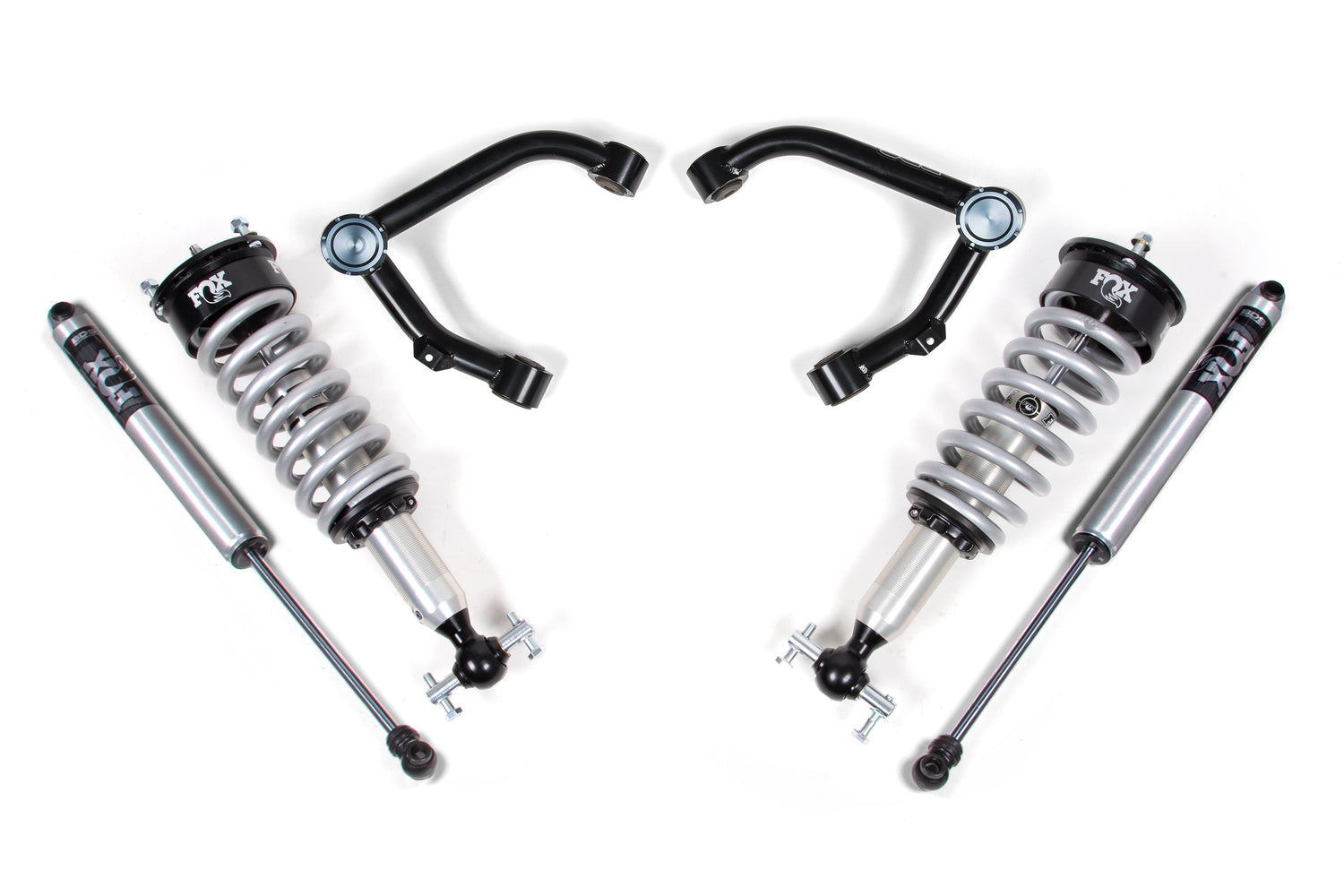

Level out your 2007-2018 Chevy Silverado and GMC Sierra 1500 with this BDS 2" leveling kit, with clearance for up to 33" tires. Up front it includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for added strength, and the rear runs a matching set of FOX 2.0 Performance shocks. The coil-overs feature a 2.0" machined 6061-T6 aluminum body for better heat dispersion, an internal floating piston to eliminate oil aeration, and a 5/8" hard chrome plated alloy shaft, preloaded with springs and top-plate for easy install.

Features

• FOX 2.0 Performance Series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

Recommended Tire & Wheel Fitment

• Tire Size: 285/70, 33x12.5
• Wheel Diameter: 20x9, 20x94.5

Notes

• Will not fit MagneRide magnetic ride control equipped models.
• 33x12.50 tires will require a weld-on steering stop and inner fender well modification to clear this width tire.
• GM produced several knuckle/control arm configurations in 2014-2018 trucks. Cast Steel control arm models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.

Includes

• BDS121151, 07-18 Chevy 1500 UCA Kit -Cast Steel UCA (UPC 658848618880)
• FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• FOX98502018, 07-ON Chevy 1500 Front Coilover, PS, 2.0, Internal Floating Piston, 4.3 inch, 0-2 inch Lift (UPC 714686858809)
