2007-2018 Jeep 8" Long Arm Lift Kit (8034-03)

Description

A version of the Synergy 8" stretch kit that doesn't require converting to coilover shocks. Featuring a coil spring relocation brackets and shock relocation brackets for use with the standard 8" rear stretch brackets for 2-door JK's, this means it can be used with standard coil springs. Allowing for standard coil springs takes much of the guesswork and tuning out of properly setting up a stretched JK. This also allows for more shock options, as it is easier to fit larger 2.5" shocks or even bypass shocks.

Part Number: 8034-03

Features

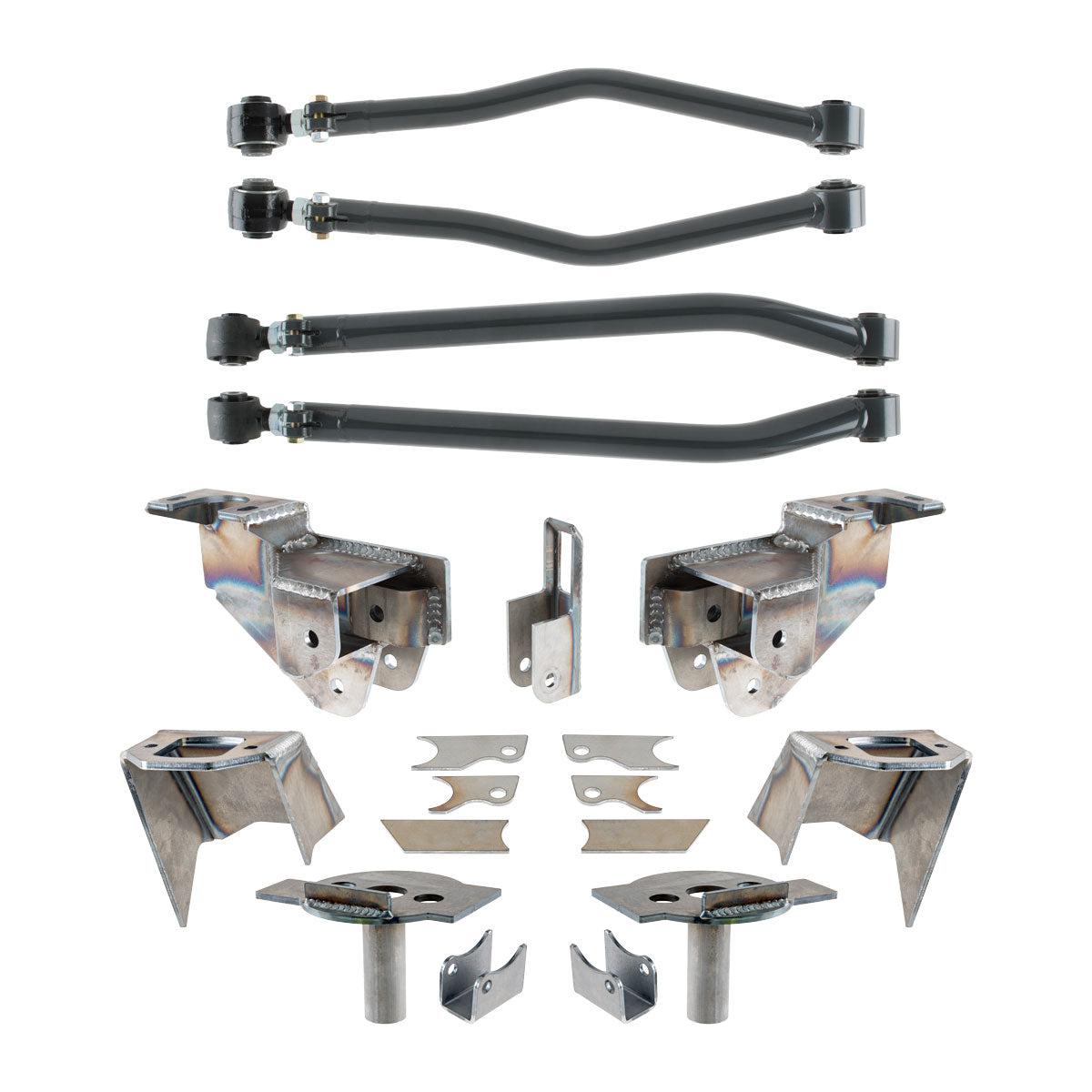

• Adjustable rear upper and lower long arms designed to maximize ground clearance
• Lower control arms are manufactured from high-quality crush resistant 2" X .250 Wall 1026 DOM tubing
• Upper control arms are made from high-quality crush resistant 1 1/2" X .188 Wall 1026 DOM tubing
• Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of control arm link length without removal
• Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance-free design focusing on performance, flex, longevity, and ride quality
• Coil spring relocation brackets move the upper coil spring mounts back 8"

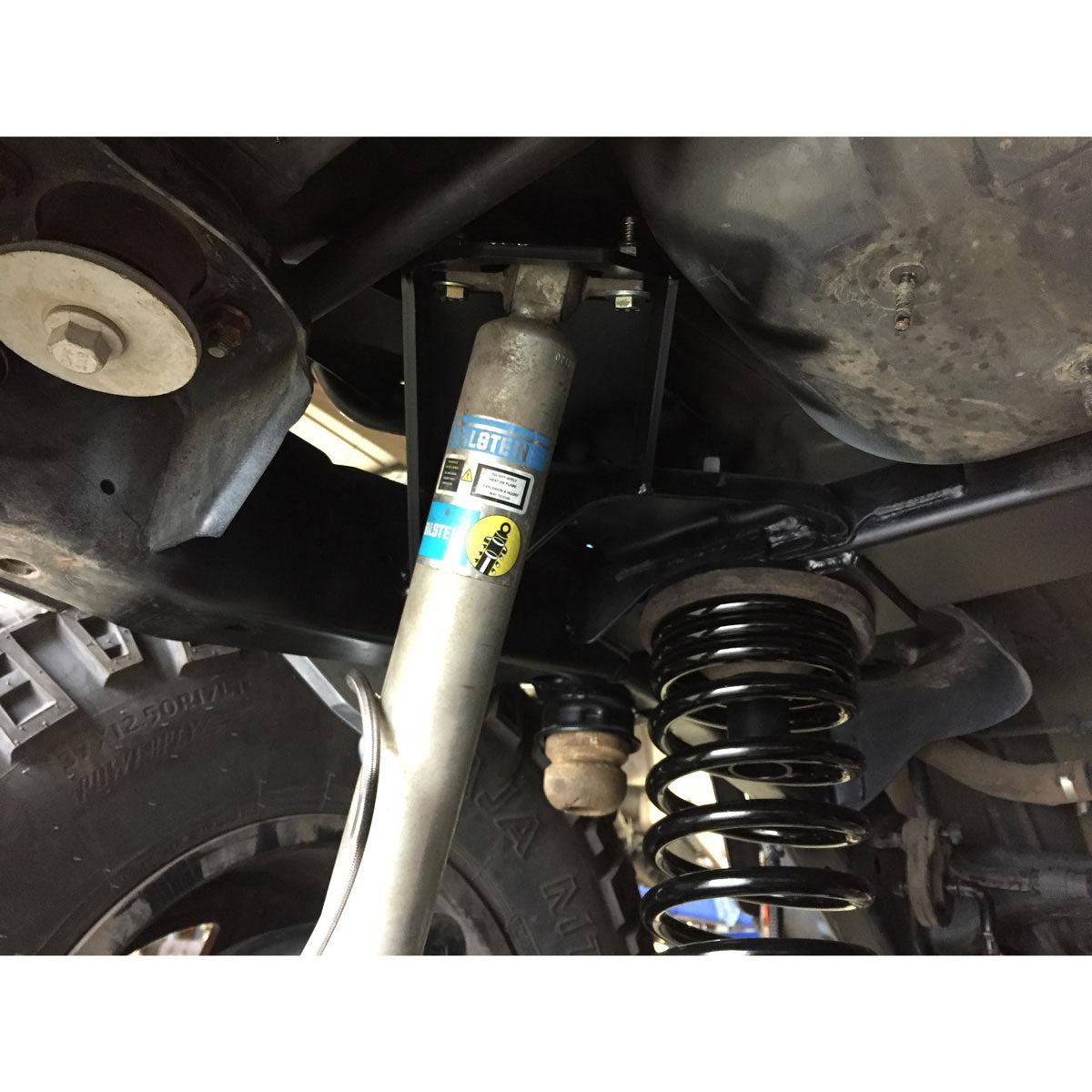

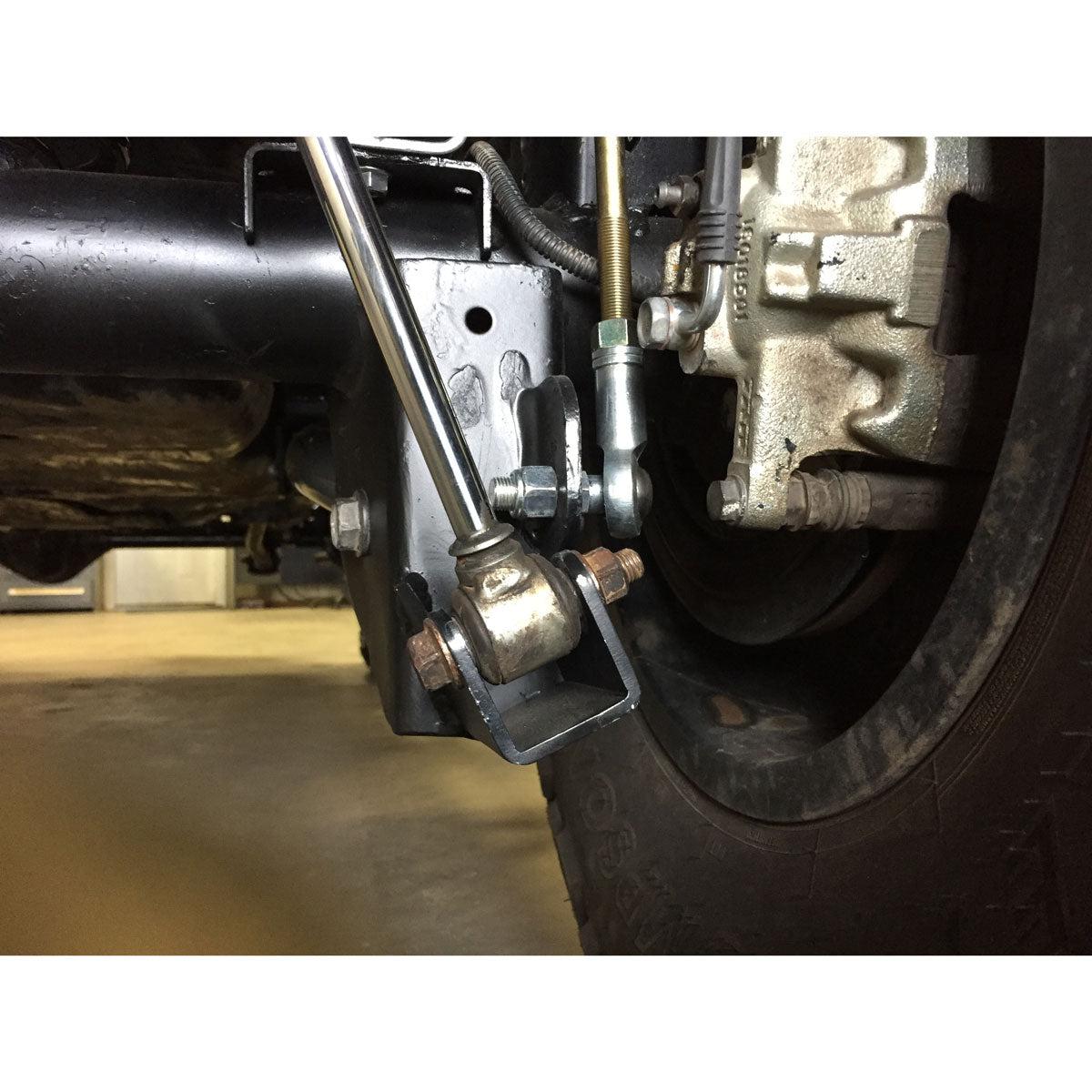

• Shock relocation brackets move the upper shock mounts back 8" and move the lower shock mounts for improved clearance
• Progressive wound coil springs manufactured using the latest in CNC hot winding technology keeps springs from coming unbound at full suspension droop
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

Notes

• Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
• Requires significant fabrication and welding skills to correctly install
• TNT Customs 8" rear stretch corners are designed to work with this kit, part # JCA280 (with rear light pockets) or JCA280NL (no rear light pockets)
• Due to the placement of the rear coil springs, rear coil springs should be two inches shorter than the front coil springs. We recommend 8063-30 front coil springs and 8064-10 rear coil springs for 37-40" tires.
• Installation requires basic hand tools, grinder with cut-off wheel or sawzall, floor jack with jack stands or automobile lift, and a welder. Extensive cutting, grinding, welding, and fabrication skills are required to complete installation.
