2007-2018 Wrangler 4.5" Suspension Lift System (JK45-1X5310-L2)

Description

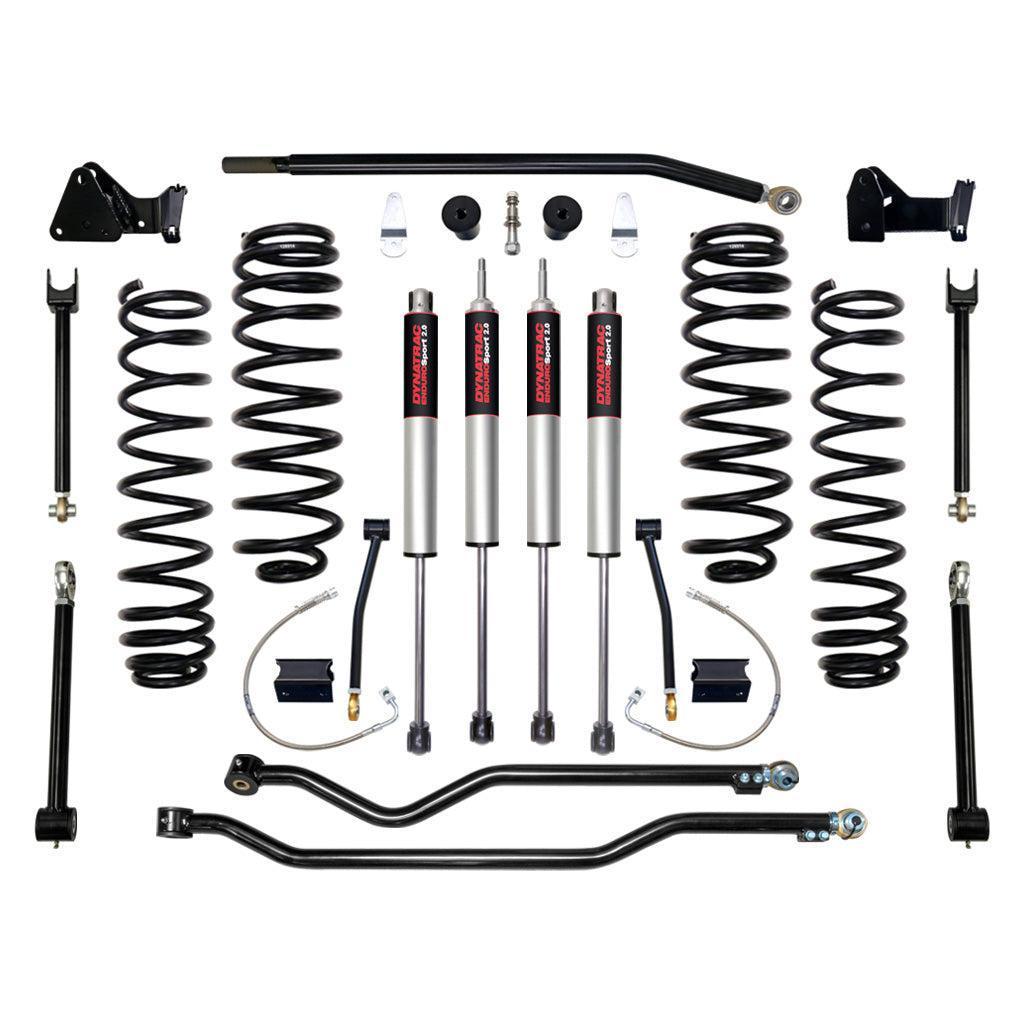

This 4.5” Jeep JK Suspension Lift gives your Wrangler the perfect mix of off-road muscle and on-road smoothness. It includes everything you need—dual-rate coil springs, track bar drop brackets, high-steering components, bumps top spacers, rear brake lines, rear sway bar links, adjustable front upper and rear lower links, front and rear adjustable track bars, and Dynatrac 2 EnduroSport shocks—to handle any off road terrain without losing comfort. Fits 35” tires stock, 37" tires with aftermarket high clearance fenders.

Part Number: JK45-1X5310-L2

Features

• Dual-rate coil springs front and rear
• High-steer flip kit for proper steering geometry
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links utilize dual-rate bushings or PTFE-lined rod ends
• High-performance rebuildable & revalvable Dynatrac 2.0 EnduroSport shocks
• Track bars are on-vehicle adjustable, designed for optimizing axle position
• Increased wheel travel & articulation over stock
• No welding or cutting required
• 100% returnable to stock

Notes

• Dynatrac’s advertised lift heights are based around a typical Jeep JK build, which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock, weighted vehicle.
• Requires aftermarket front drive shaft. Dynatrac part # DT922014 [12-18] or #DT922016 [07-11].35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• 2-door models sit slightly taller than 4-door models but remain level when installed.
• May require rear alignment cam kit, Dynatrac part # DT922013.
• Front driveshaft can hit certain model skid plates at full droop and may require trimming of skid for full articulation.
• Spanner wrench available to aid in track bar length adjustment. Part # DT9191014.

Additional Info

• Bushings Included: Yes
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift Front: 4.5
• Maximum Lift Rear: 4.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Tire Fitment

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
