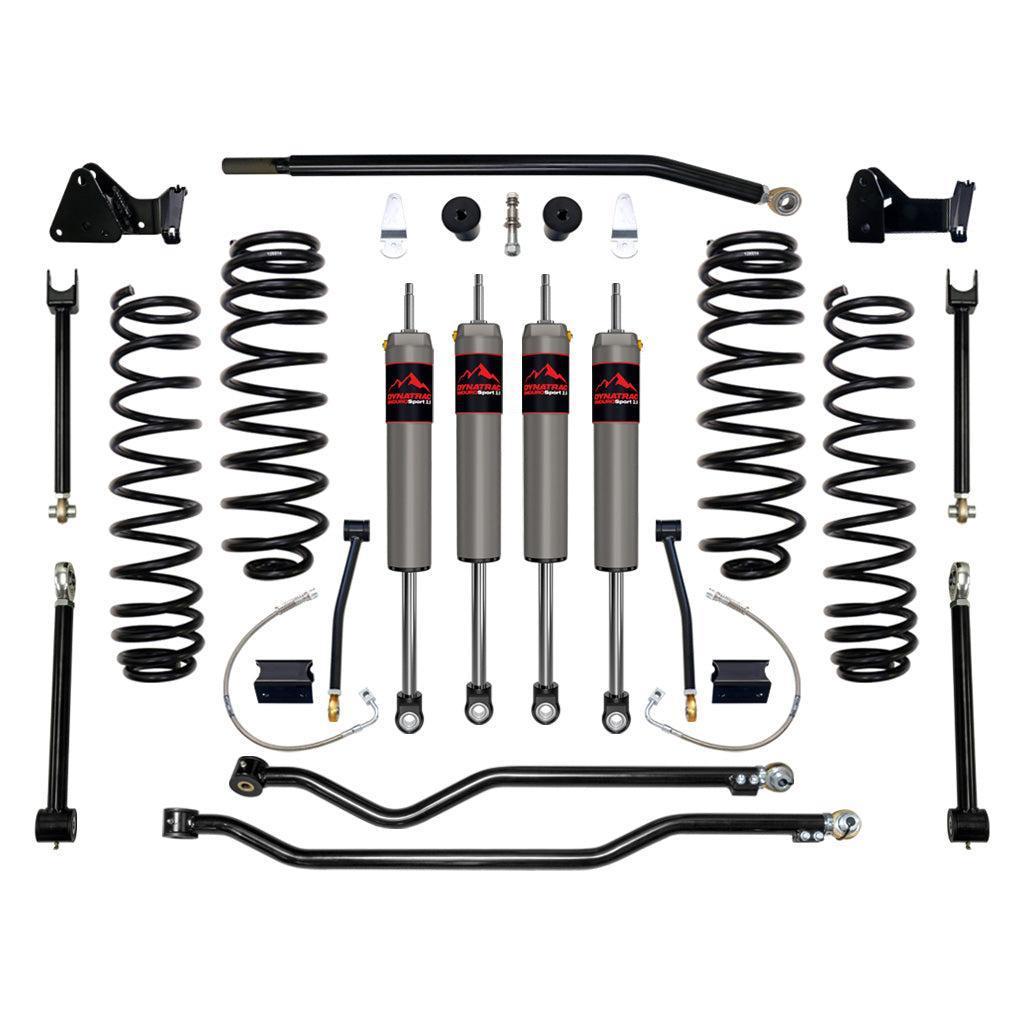

2007-2018 Wrangler EnduroSport 4.5" Lift Kit (JK45-1X5310-L4)

Description

Set yourself up for success! DynaTrac's EnduroSport Lift Kits deliver the most optimal balance between wheel travel, articulation, ground clearance, and capability over any terrain without compromising on-road driving characteristics. Everything in this kit, from the 2.5 series Enduro shocks, adjustable upper and lower links, and trackbar (to name a few), provides unparalleled stability and control so you can enjoy every minute on any adventure you take your Jeep on.

Part Number: JK45-1X5310-L4

Features

• Dual-rate coil springs front and rear are guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Includes high-performance rebuildable and revalvable 2.5 EnduroSport shocks
• Track bars are adjustable, designed for optimizing axle position
• Increased wheel travel and articulation over stock
• No welding or cutting required
• 100% returnable to stock

Additional Info

• Bushings Included: Yes
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift Front: 4.5"
• Maximum Lift Rear: 4.5"
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Wheel and Tire Fitment:

• Compatible with OEM wheels
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended

Notes

• Dynatrac’s advertised lift heights are based around a typical Jeep JK build, which usually includes added weight of accessories such as a heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Requires aftermarket front drive shaft. Dynatrac part # DT922014 [12-18] or #DT922016 [07-11]
• 2-door models sit slightly taller than 4-door models but remain level
• May require rear alignment cam kit, Dynatrac part # DT922013
• The front driveshaft can hit certain model skid plates at full droop and may require trimming of the skid for full articulation
• Spanner wrench is available to aid in track bar length adjustment. Part # DT9191014.
