2007-2018 Wrangler JK HD Steering Kit with FOX IFP Stabilizer (8025-11)

Description

A direct bolt in replacement for the factory JK steering that delivers an immediate upgrade in feel, stiffness, and strength. This 8025-11 configuration adds a Synergy tuned FOX IFP steering stabilizer with the clamp and mount stud to tame bump steer on and off road. Single plane tie rod ends eliminate unwanted drag link and tie rod flop, so your Wrangler tracks straight and stays centered.

Part Number: 8025-11

Features

• Drag link bolts into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using the included flip adapter
• Drag link made from 1.5" x .250 wall DOM tubing
• Tie rod made from 1.5" x .188 wall 4130 chromoly, heat treated for over 200 percent more strength than stock
• Synergy HD metal on metal tie rod ends with grease fittings and replaceable dust boots, single plane at the pitman arm side to eliminate drag link flop
• Synergy Double Adjuster Sleeve allows length adjustment without removing the bar from the vehicle
• Includes a Synergy tuned FOX IFP steering stabilizer with clamp and mount stud
• Abrasion resistant powder coat finish for durability and corrosion resistance
• 100 percent bolt on installation with basic hand tools

What's Included

• 1x HD Adjustable Drag Link (8000-01)
• 1x HD Adjustable Tie Rod (8002-15)
• 1x Steering Stabilizer Clamp (4050-50)
• 1x Steering Stabilizer Mount Stud (8806-01)

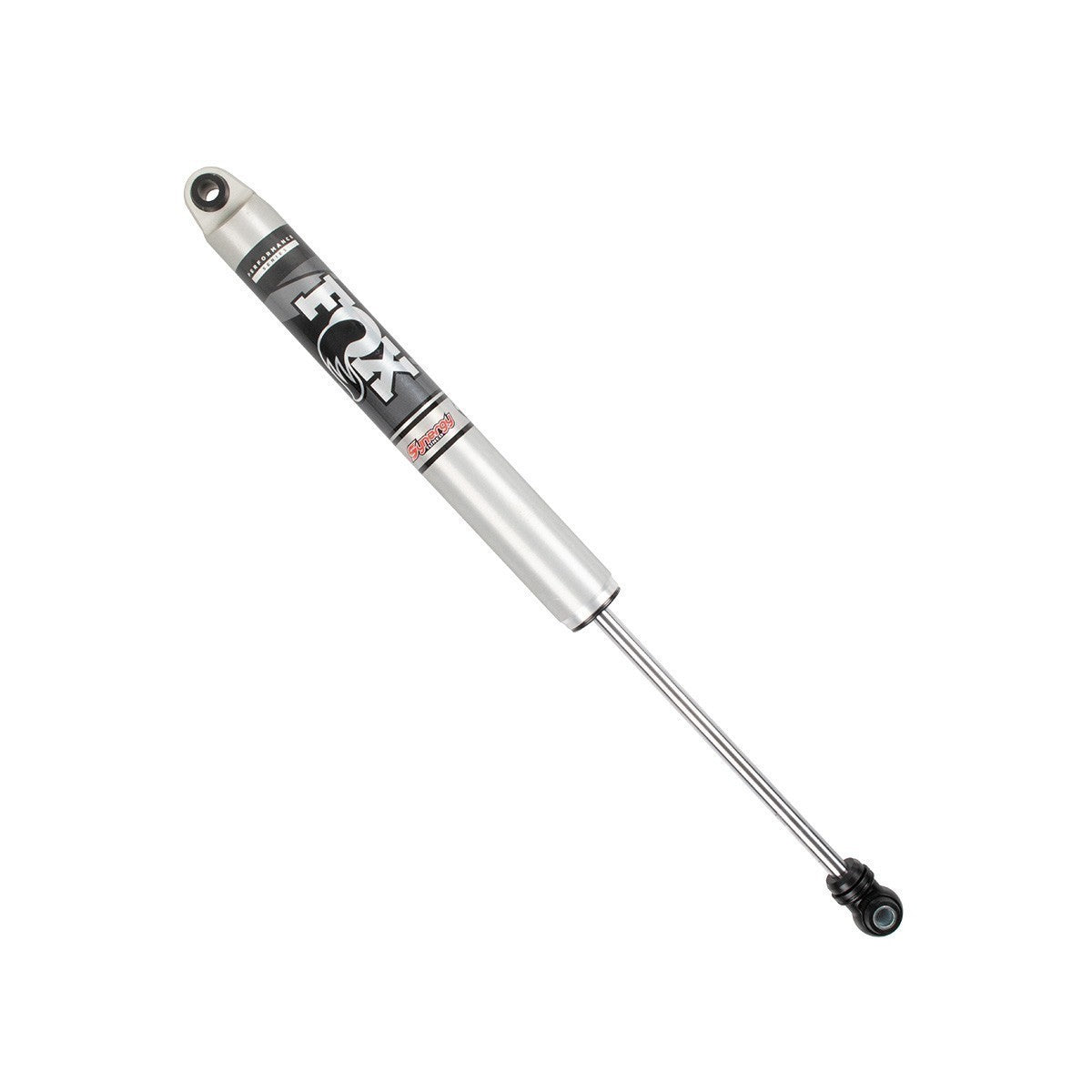

• 1x Synergy Tuned FOX IFP Steering Stabilizer (6401-01)

Notes

• Drag link is used in the stock location for up to 3 inches of lift. For 3 to 6 inches of lift the drag link should be flipped for a high steer setup
• High steer setup requires relocating the drag link to the top of the steering knuckle and a raised front axle side track bar relocation bracket (Synergy 8055, 8012-13, or 8009-01)
• Compatible with right hand drive applications
• Tie rod or flipped drag link requires a 16 inch or larger wheel with a maximum 4 3/4 inch backspacing; 4 1/2 inch backspacing recommended

Warranty

This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.
