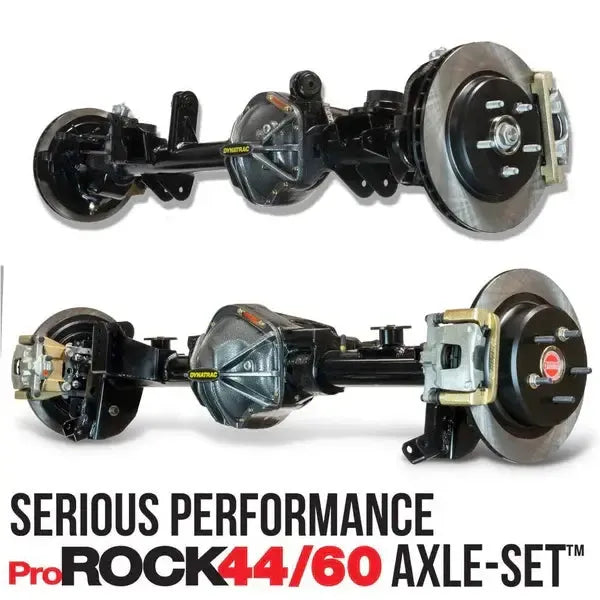

2007-2018 Wrangler Serious Performance ProRock Dana 44/60 Axle Set (DT JKSE-3X3002-H)

Description

Note: This ProRock 44 assembly does not include spindles, hubs, steering knuckles, or brakes. You need to reuse the spindles, hubs, steering knuckles, and brakes

Just like the title states, this ProRock Dana 44/60 axle set is the bulletproof upgrade you need if you want to do some serious off-roading. Worrying about blown-up axles and differentials is a thing of the past. DynaTrac did not hold back with these kits; they come fully assembled with your choice of locker and gear ratio, and wall tubing that is 3 times stronger than the factory Dana44 housing. So if you're looking for 100% American-made, undeniable strength, reliability, and control, this ProRock axle set delivers.

Part Number: DT JKSE-3X3002-H

Features

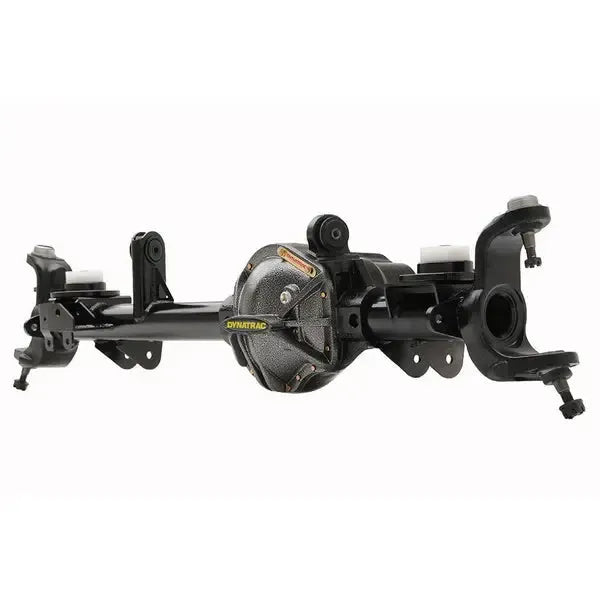

ProRock 44 Unlimited Front Axle:

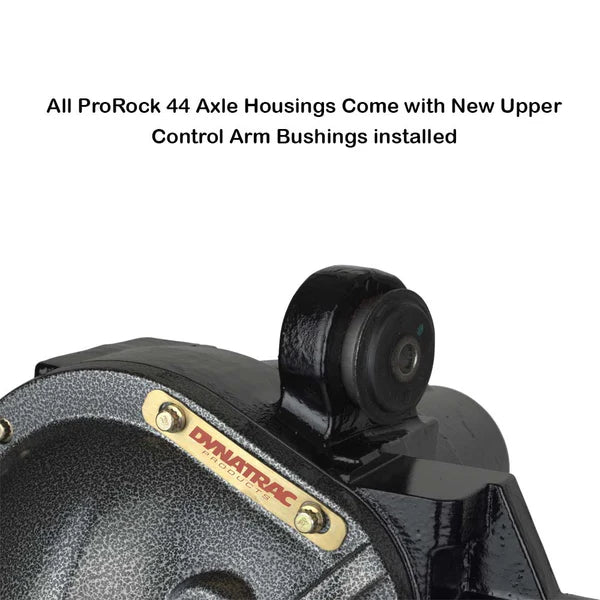

• Dynatrac-exclusive patented ProRock nodular-iron, high-pinion ProRock 44™ centersection with control arm bushings installed.
• Improved ground clearance over Dana30
• 3" diameter x 1/2" thick wall tubing that is 3 times stronger than any stock JK Dana 44 housing
• U.S.-made forged, double-heat-treated 1350 axleshaft assemblies
• Inner and outer 4340 shafts with new U-joints installed

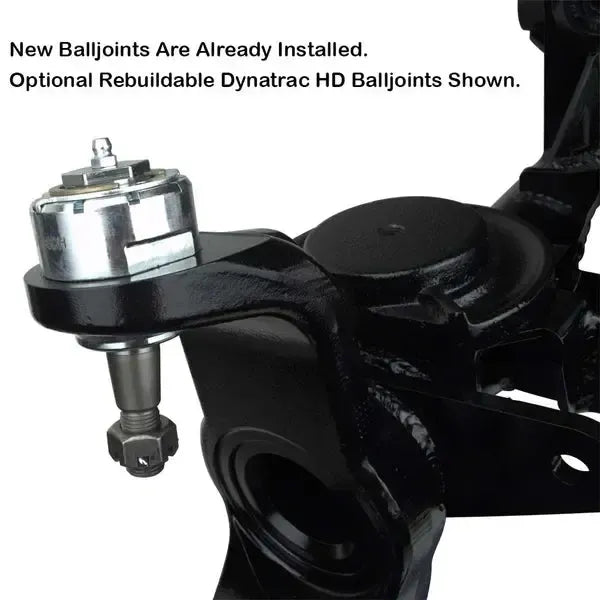

• Pre-installed ball joints
• Integrated raised track-bar and ram-assist steering mounting package
• High-strength steering linkage and integrated ram-assist bracket

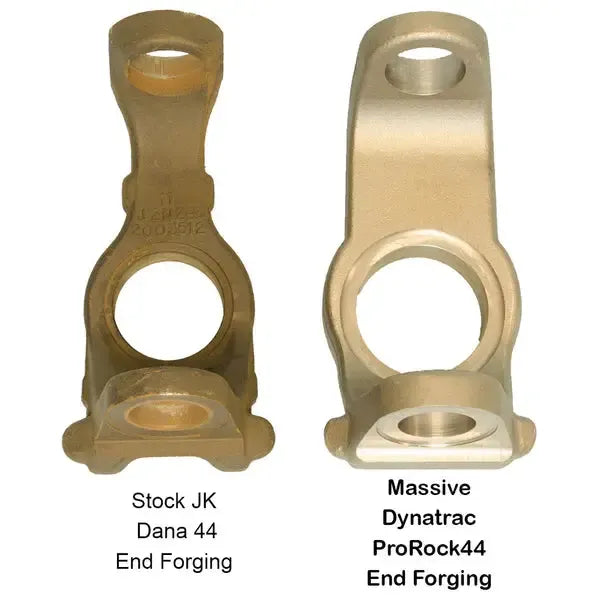

• Precision-aligned alloy-steel end forgings
• Unlimited housing geometry for superior handling and optimal pinion and driveshaft angle
• Rock-proof nodular-iron diff cover
• All HD suspension brackets are CNC laser-cut and professionally welded and installed, including high-mount track-bar bracket setups for lifted JKs with top-down mounted drag links and high-steering packages


ProRock 60 Semi-Float Rear Axle:

• Dynatrac-exclusive patented ProRock nodular-iron, high-pinion ProRock 60 centersection
• More ground clearance than a factory Dana 44
• 3.125" diameter by 0.313" thick wall tubing that’s 2.5 times stronger than any stock JK Dana 44 rear housing
• Dual-Sump High Volume (DSHV) oiling system to ensure the outer pinion bearing is never without lubrication
• U.S.-made forged, heat-treated, 35-spline alloy-steel shafts
• High-pinion housing geometry for long suspension travel, and a 2.75" raised driveshaft height to protect the driveshaft and U-joint from impact with rocks and trail obstacles
• Rock-proof nodular-iron diff cover included
• All HD suspension brackets are CNC laser-cut and professionally welded and installed, including a multiple-position track-bar bracket for long-travel suspension tuning

Additional Info

• ABS Tone Ring Included: Yes
• Brake Type: Disc
• Grade Type: Performance
• Pre-Filled Oil: Yes

Notes

• DOES NOT INCLUDE KNUCKLES OR BRAKES

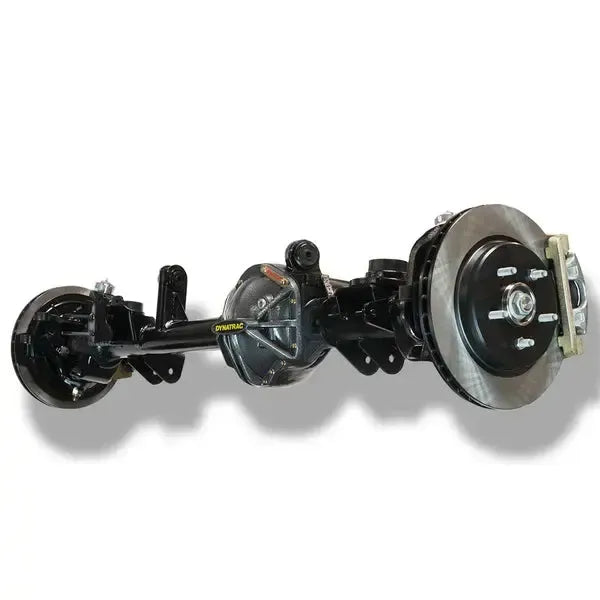

• Axles shown feature OPTIONAL Dynatrac Big Brake Kit - DT JK44-2X1125-A (NOT INCLUDED)
• Using the integrated ram-assist bracket on the ProRock 44 requires that you flip the drag link
• The new RAM assist/steering stabilizer bracket for the ProRock44 is not compatible with Reid Racing knuckles. If you wish to use Reid Racing knuckles, Dynatrac can substitute our first-generation raised trackbar bracket, which does not have the integrated ram assist/steering stabilizer mount
