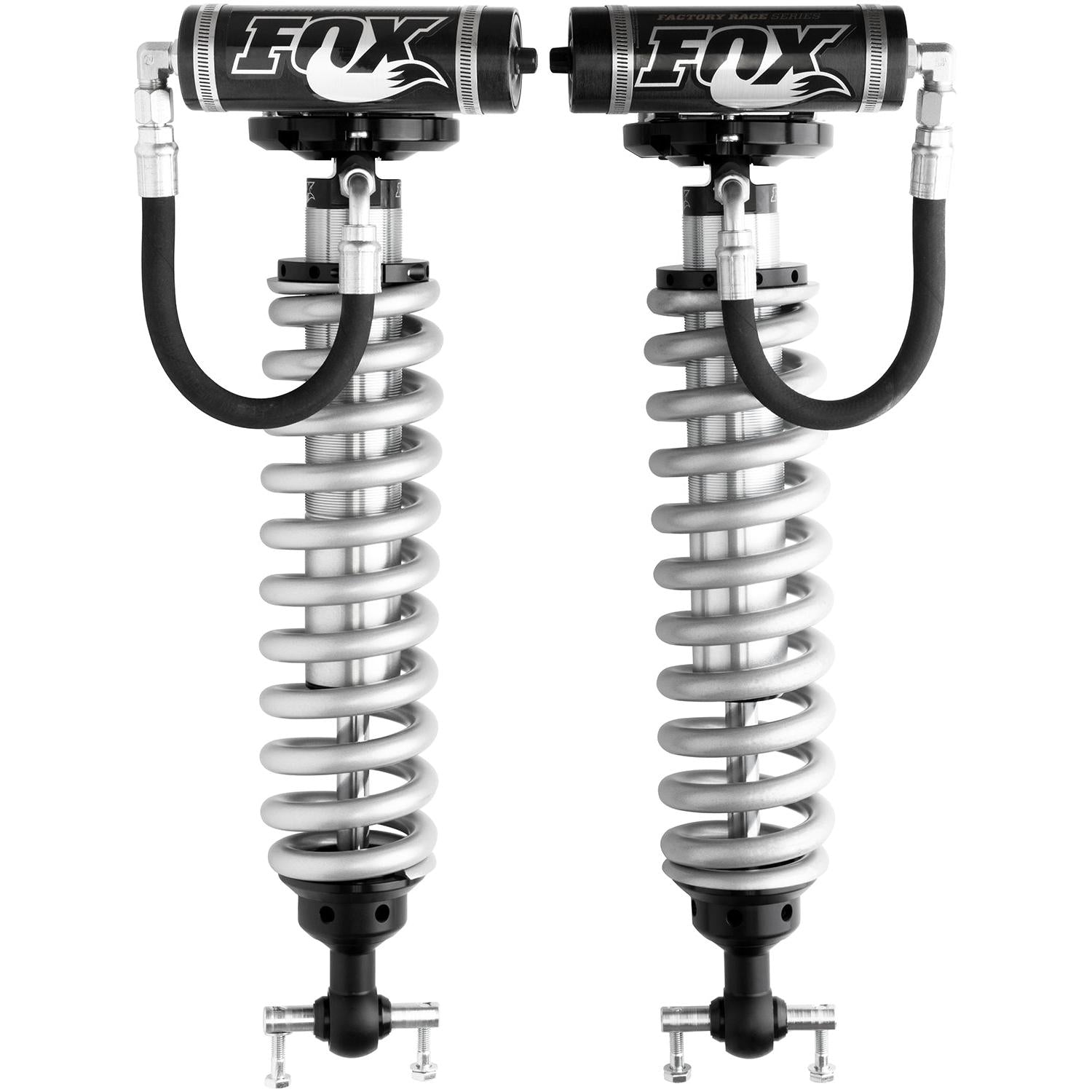

2007-2019 1500 Front 3" Factory Race Coilover (880-02-525)

Description

Note: Requires Upper Control Arm

These bolt-on Factory Race Series Coil-over IFP shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box.

Experience for yourself the incredible performance and precise control that Factory Series Coil-overs IFP shocks deliver.

Part Number: 880-02-525

Features

• 2.5" smooth bore zinc plated seamless steel Body

• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 19.4"
• Compressed Length: 14.1"
• Top Mount: TM
• Bottom Mount: Bar Pin
• Travel: 5.3"
• Front Lift Height: 3"
