2007-2020 Tundra 4" Front Lift SST Lift Kit (69-5475)

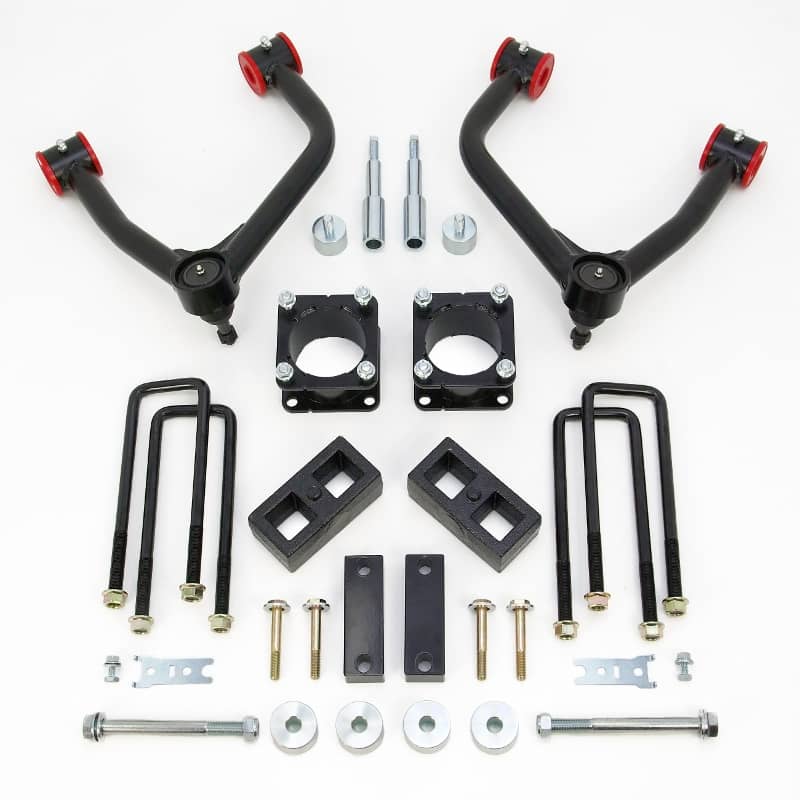

ReadyLIFT is proud to offer a 4"F/2"R SST Lift Kit for Tundra trucks. The overwhelming popularity of the SST Lift Kits fueled the necessity to engineer a similarly proven popular kit for the full size Toyota trucks. This kit is packed full of great features starting with DOM steel tube upper Control Arms with extended duty ball joints and tough TCT urethane bushings. These Control Arms are designed to retain original equipment manufacturer (OEM) ball joint angles while also providing necessary strut/coil over clearance during suspension droop cycling. Also included are a pair of time tested powder-coated steel top mount strut extensions that will provide 4.0" of lift. Differential drop spacers and skid plate spacers with new hardware are also included, as are new rear shock extensions and front bump stop extensions. This kit also includes OEM-style 2.0" rear lift blocks and u-bolts to bring the rear of the trucks up for a really nice and level-but-lifted stance. This SST Kit is easy to install and fully capable of retaining OEM alignment geometry figures. Unlike other kits, the ReadyLIFT 4" SST suspension system requires no cutting or strut spring pre-loading and installs safely using the provided heavy-duty hardware. This kit now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction.

Features

• Max Lift: 4.0" Front, 2.0" Rear
• Includes strong DOM powder-coated tube steel upper Control Arms with new ball joints and TCT bushings
• Precision crafted upper strut extensions designed to position the strut in the same mounting angle position
• Kit includes differential drop brackets which lowers the differential on 4WD models to keep the near factory CV angle specifications
• New ultra strong TCT free floating pivot bushings that are self lubricating and eliminate friction
• Includes OEM-style 2.0" rear lift blocks and u-bolts
• Includes new rear shock extensions and front bump stop extensions
• Includes front sway bar frame mount spacers and brake line bracket extensions
• No Cutting of OEM Parts or Welding required
• Maintains Factory Ride and retains OEM alignment geometry figures

Specs

• Front Lift: 4.0 inches (Strut Extensions)
• Rear Lift: 2.0 inches (OEM-style rear lift blocks)
• Upper Control Arms: DOM steel tube, powdercoated, with extended duty ball joints and TCT urethane bushings
• Rear Blocks: OEM-equivalent tapered cast iron

Compatibility Notes

• Fits Toyota Tundra 2WD/4WD models from 2007 to 2021.
• Not for use on 2015-2021 Tundra TRD Pro with Bilstein TRD Pro shocks.
• Maximum tire diameter is 35 inches.
• 35x12.50 tires are compatible with a 9" wide wheel with +25 offset.

Notes

• The vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
• Tire and wheel choice will generally have a meaningful impact on the ride and handling experience.
