2007-2021 Tundra 3" Lift Kit with FOX 2.0 Performance Shocks (BDS824FSL)

Improve the performance and style of your 2007-2021 Toyota Tundra with this BDS 3" lift kit featuring FOX 2.0 coil-over shocks, with clearance for up to 33" tires. Up front are FOX 2.0 Performance Series coil-overs, heavy duty tubular upper control arms, and 1" front differential drop spacers to reduce CV angles. The rear uses 1" lift shackles to level the truck and a matching set of FOX 2.0 Performance shocks. The UCAs use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup, durometer-specific bushings and greaseable ball joints, finished in black powder coat.

Features

• FOX 2.0 Performance Series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Shackle
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

Notes

• This kit will work on TRD Pro models, but only nets 2" of lift due to the taller factory ride height.
• Can be installed on 2WD models; differential drop brackets are not used during installation.

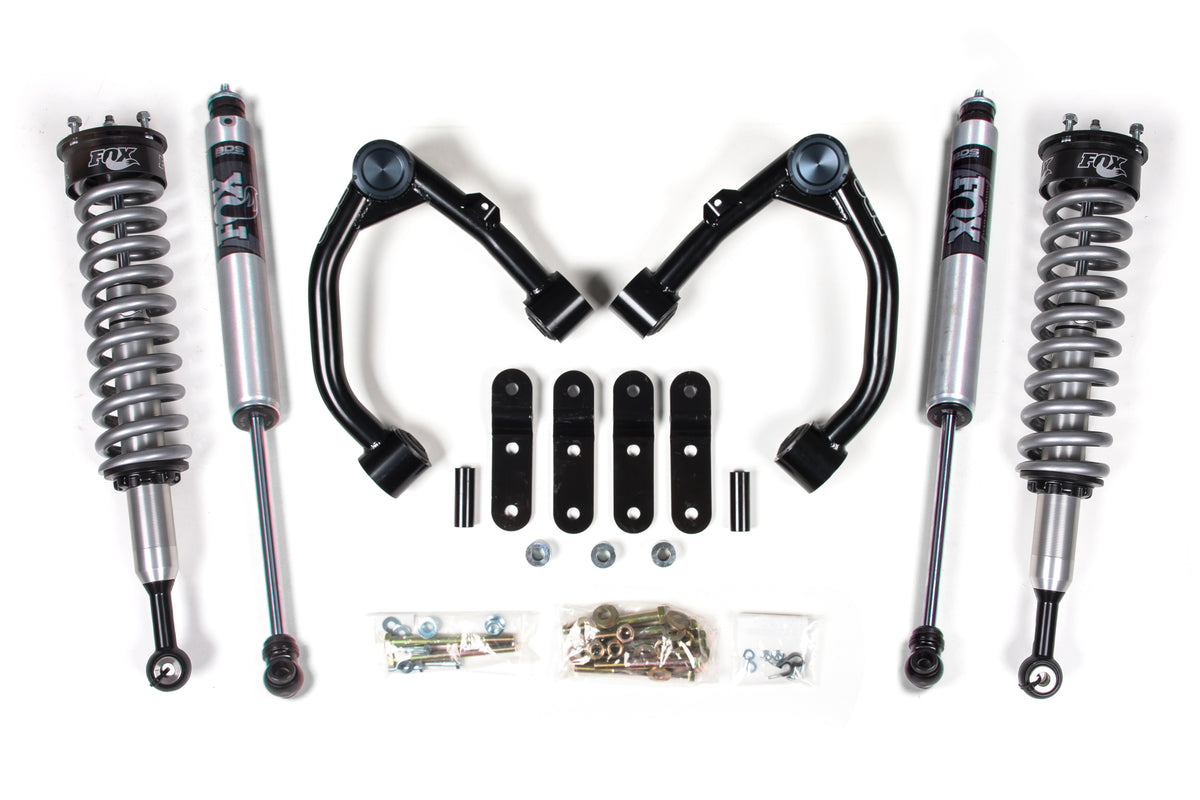

Includes

• BDS028305, 2007-2021 Toyota Tundra 3 inch Box Kit (UPC 658848616169)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98602026, Kit: BDS, 07-ON Toyota Tundra Front Coilover, PS, 2.0, Internal Floating Piston, 6.4 inch, 0-3 inch Lift (UPC 814897013773)
