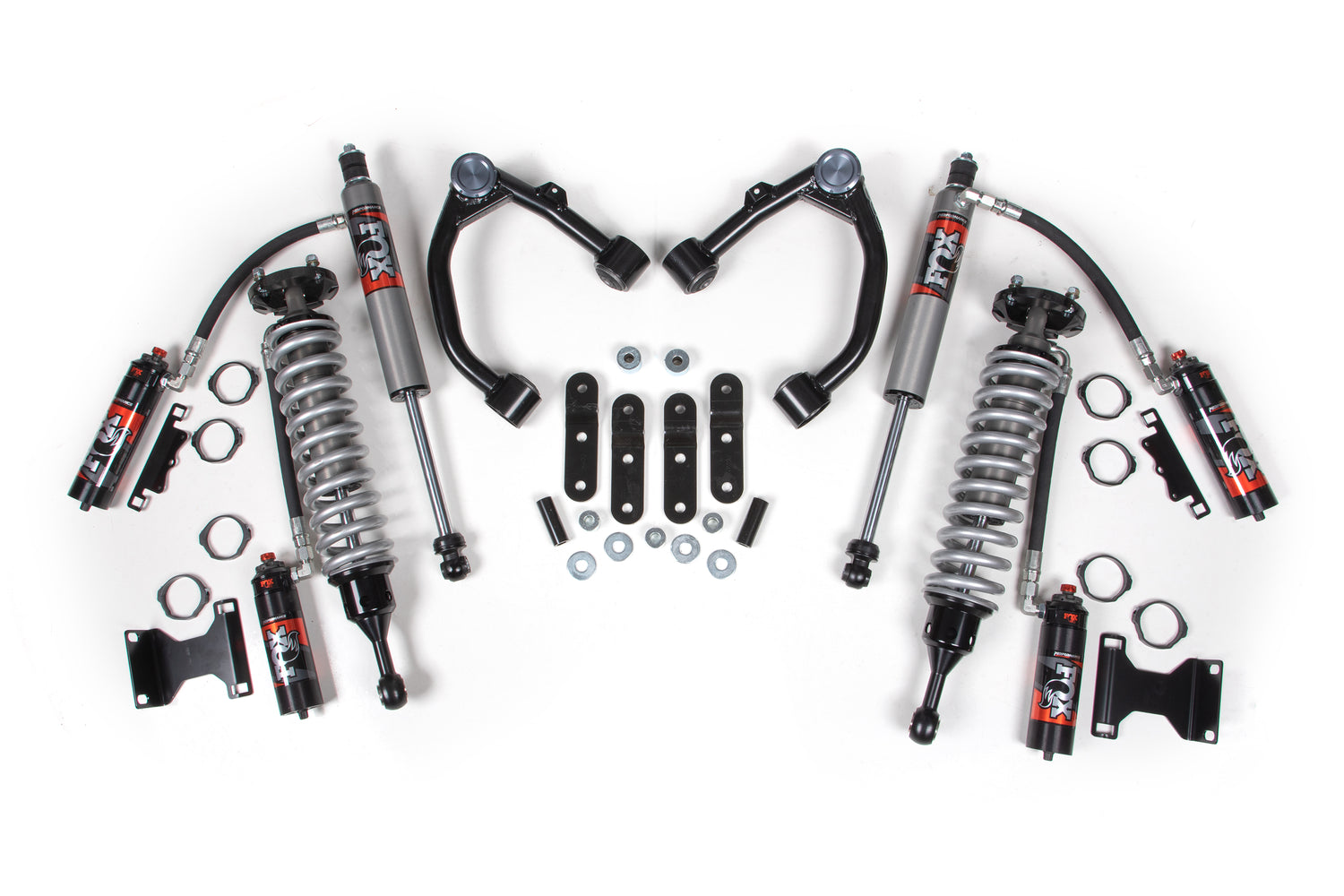

2007-2021 Tundra 3" Lift Fox 2.5 PES C/O (BDS824FPE)

Engineered for Toyota Tundra owners seeking serious off-road performance, this BDS Suspension lift kit delivers a commanding 3-inch height increase paired with Fox 2.5 Performance Elite Shocks. The system elevates your truck's geometry to maximize ground clearance and tire fitment while the premium damping technology preserves ride composure on both technical terrain and highway driving. A complete suspension overhaul that balances aggressive capability with everyday drivability.

Features

• Highly engineered upper control arms featuring 1.5" tubualr steel construction with indexed ball joint to provide maximum travel with facotry style rubber bushings which provide long lasting maintenance free operation.
• Fox Performance Elite 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body with smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster. 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster.
• Vehicle-specific spring and valving to maximize performance.
• 7/8" hard chromeplated steel shafts

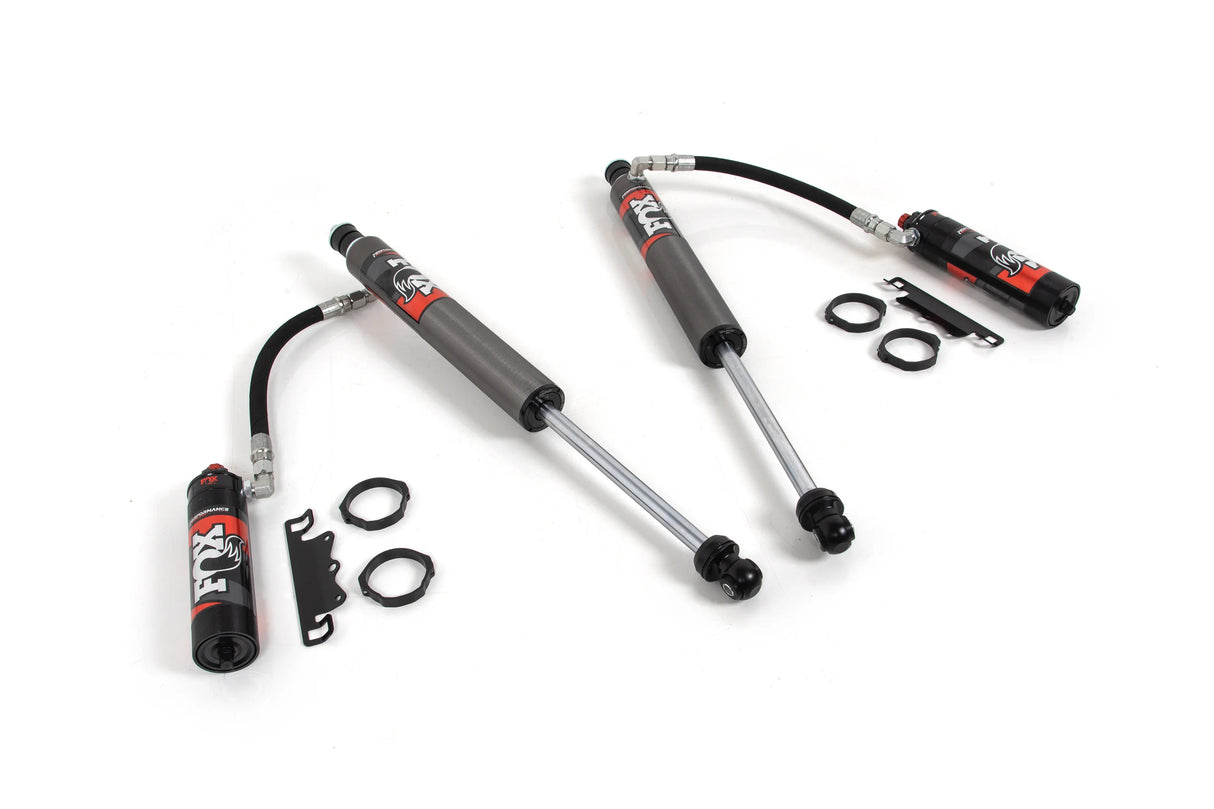

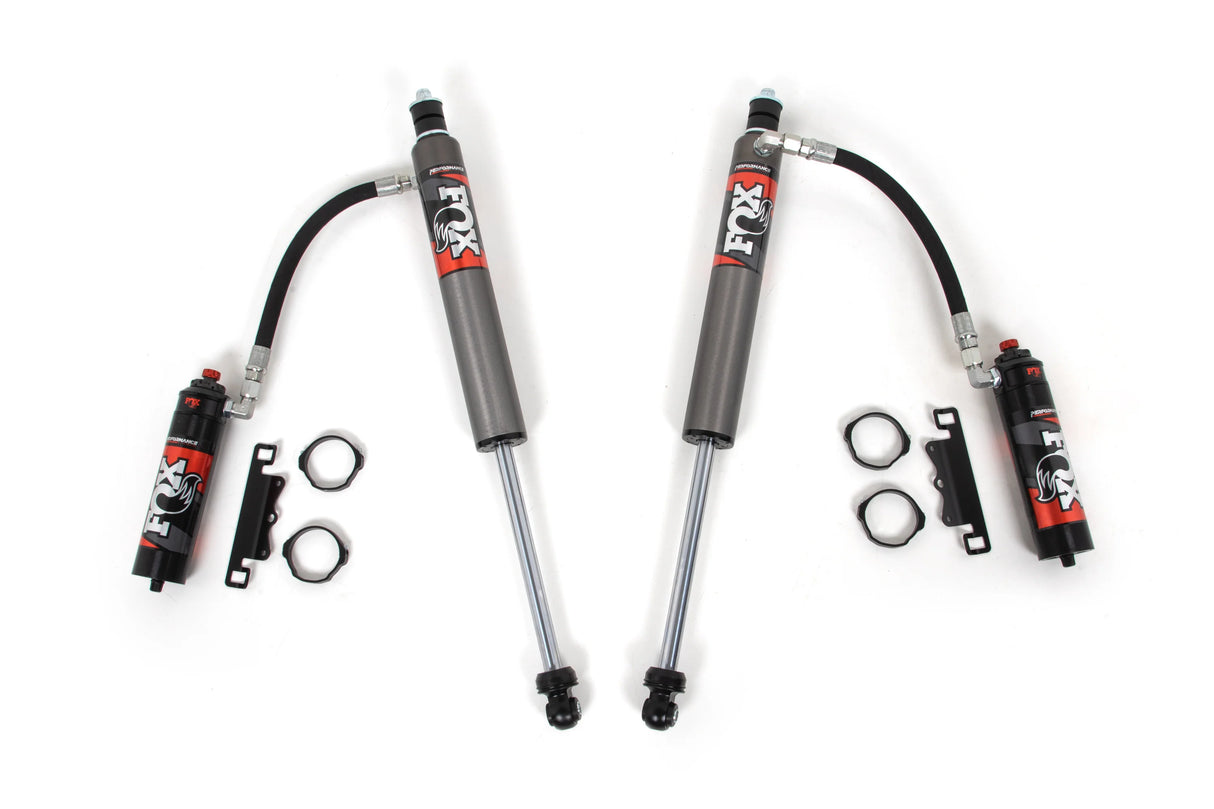

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
• Can be installed on 2WD models, differential drop brackets are not used during installation.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 3"
• Rear Lift Method : Shackle
• Rear Lift Height : 1"

• Lift Height : 2-3.5"

Tire Fitment

• 33 x 12.5 with 17 x 9 and 5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace
