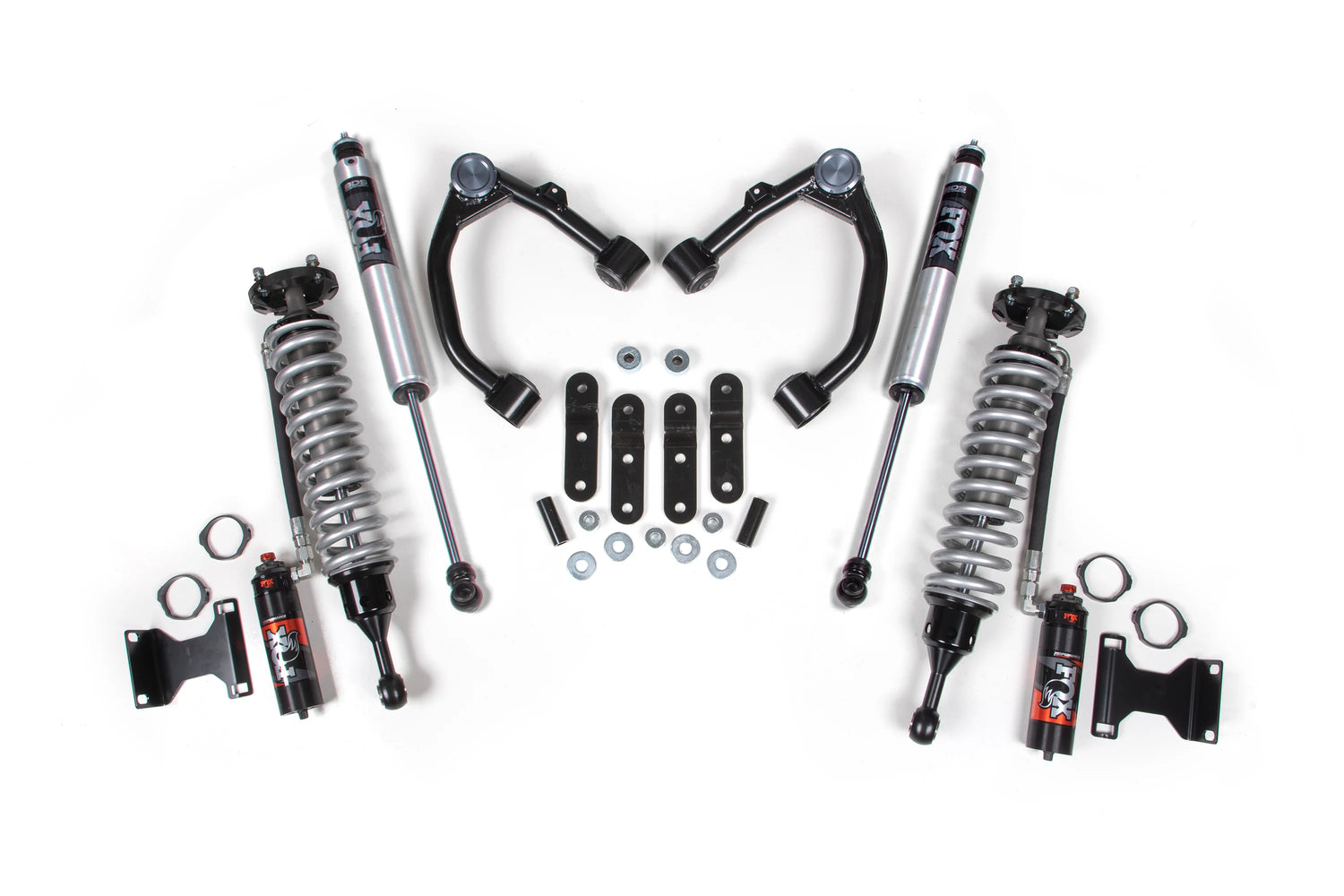

2007-2021 Tundra 3" Lift Fox 2.0 PS Suspension System (BDS824FPS)

Engineered for Toyota Tundra owners seeking serious capability, this 3" lift system pairs rugged BDS upper control arms with Fox Performance Series Shocks to deliver enhanced ground clearance and responsive handling. Whether tackling rough terrain or highway miles, the combination of durable control geometry and advanced damping technology ensures confident control, extended wheel articulation, and a refined ride quality that outperforms stock suspension across diverse driving conditions.

Features

• Vehicle-specific spring and valving to maximize performance.
• 7/8" hard chromeplated steel shafts
• Highly engineered upper control arms featuring 1.5" tubualr steel construction with indexed ball joint to provide maximum travel with facotry style rubber bushings which provide long lasting maintenance free operation.

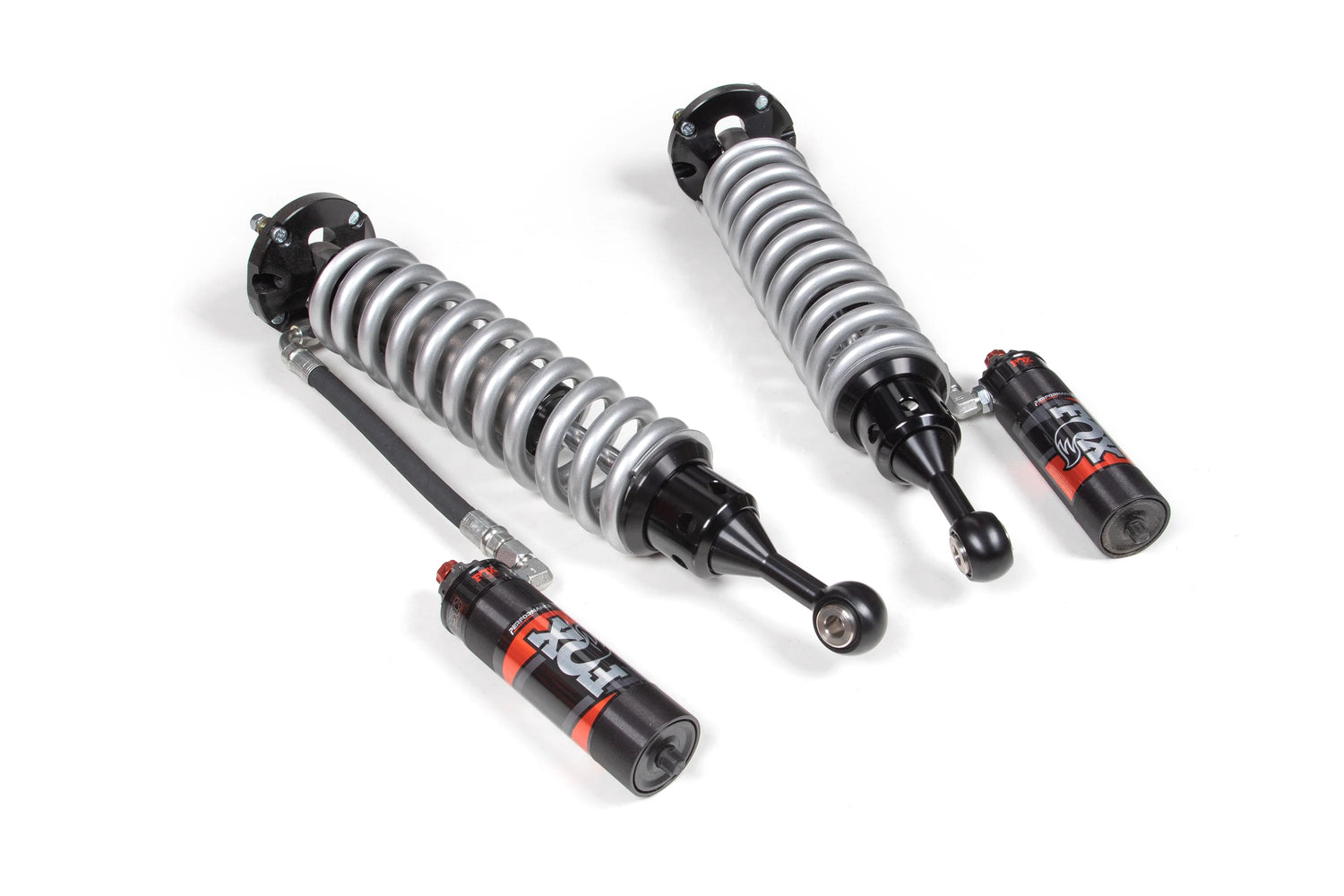

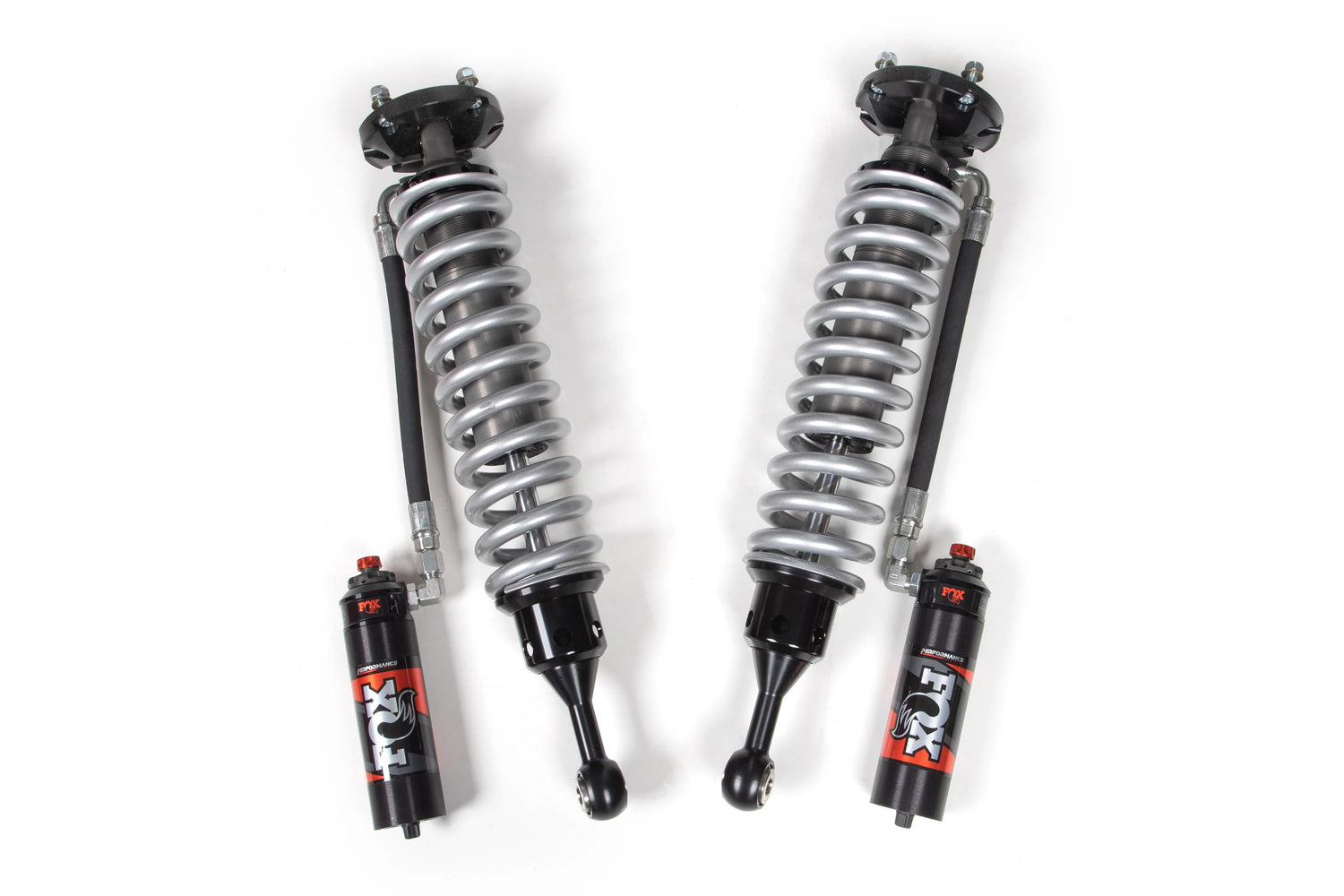

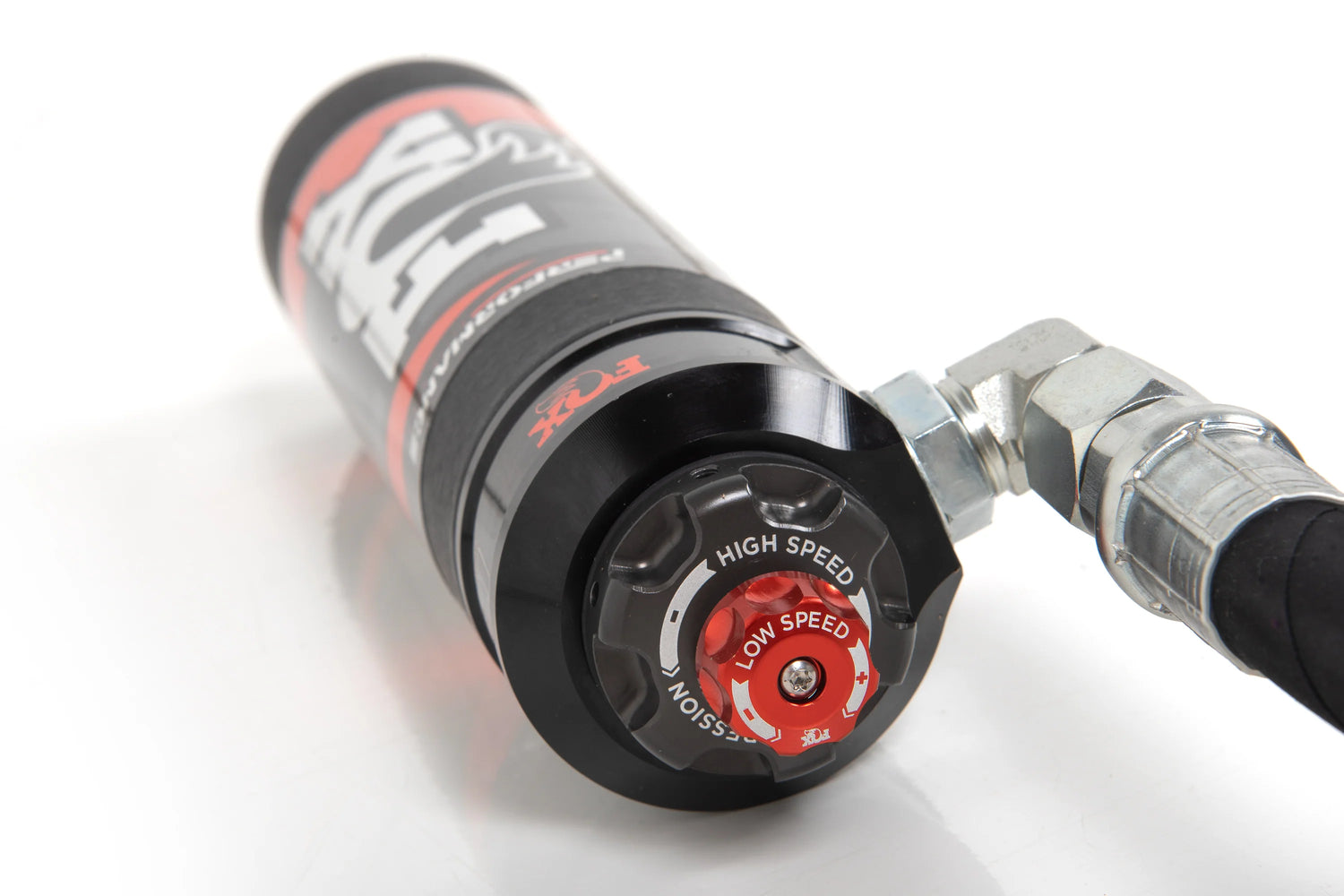

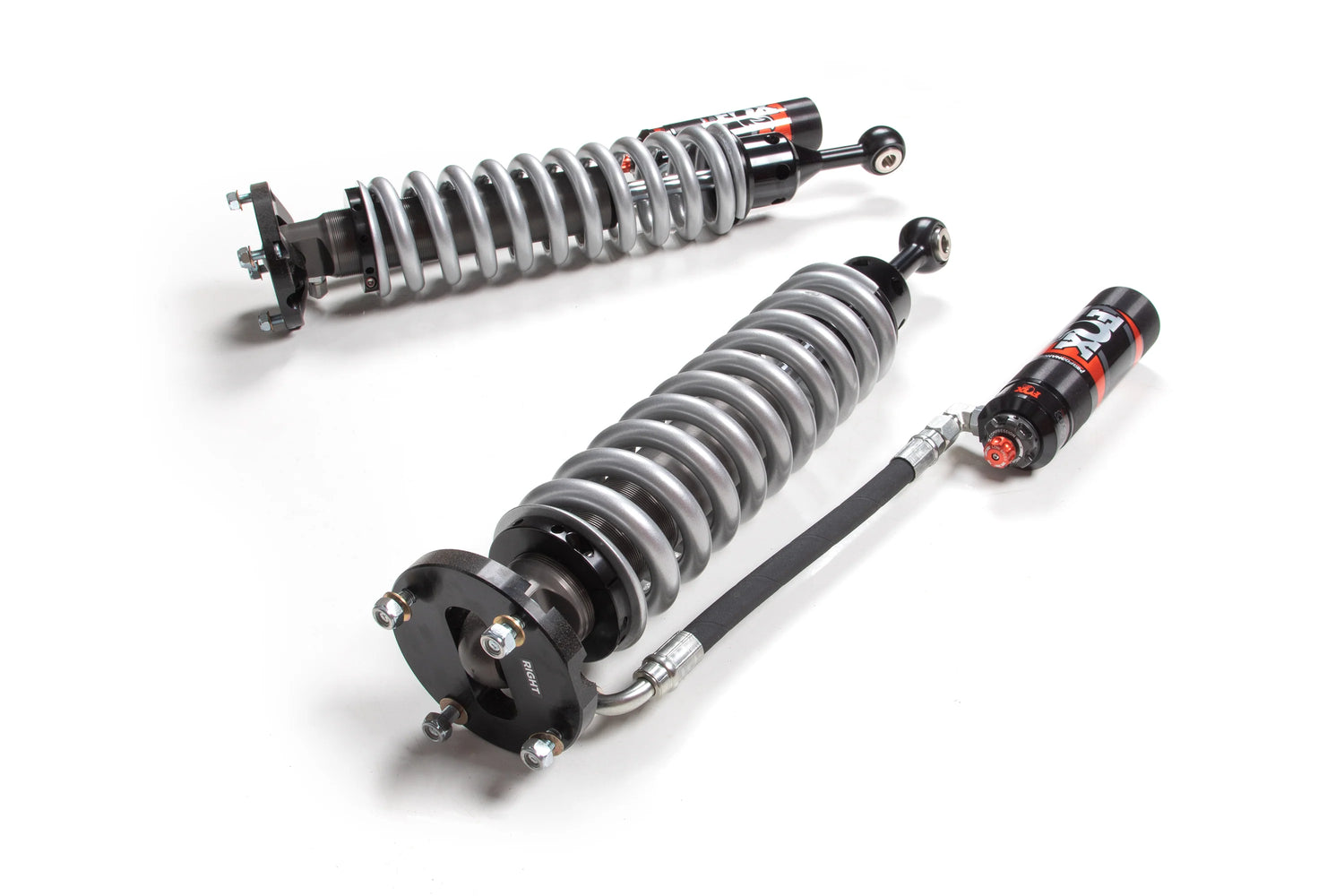

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
• Can be installed on 2WD models, differential drop brackets are not used during installation

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 3"
• Rear Lift Method : Shackle
• Rear Lift Height : 1"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 33 x 12.5 with 17 x 9 and 5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace
