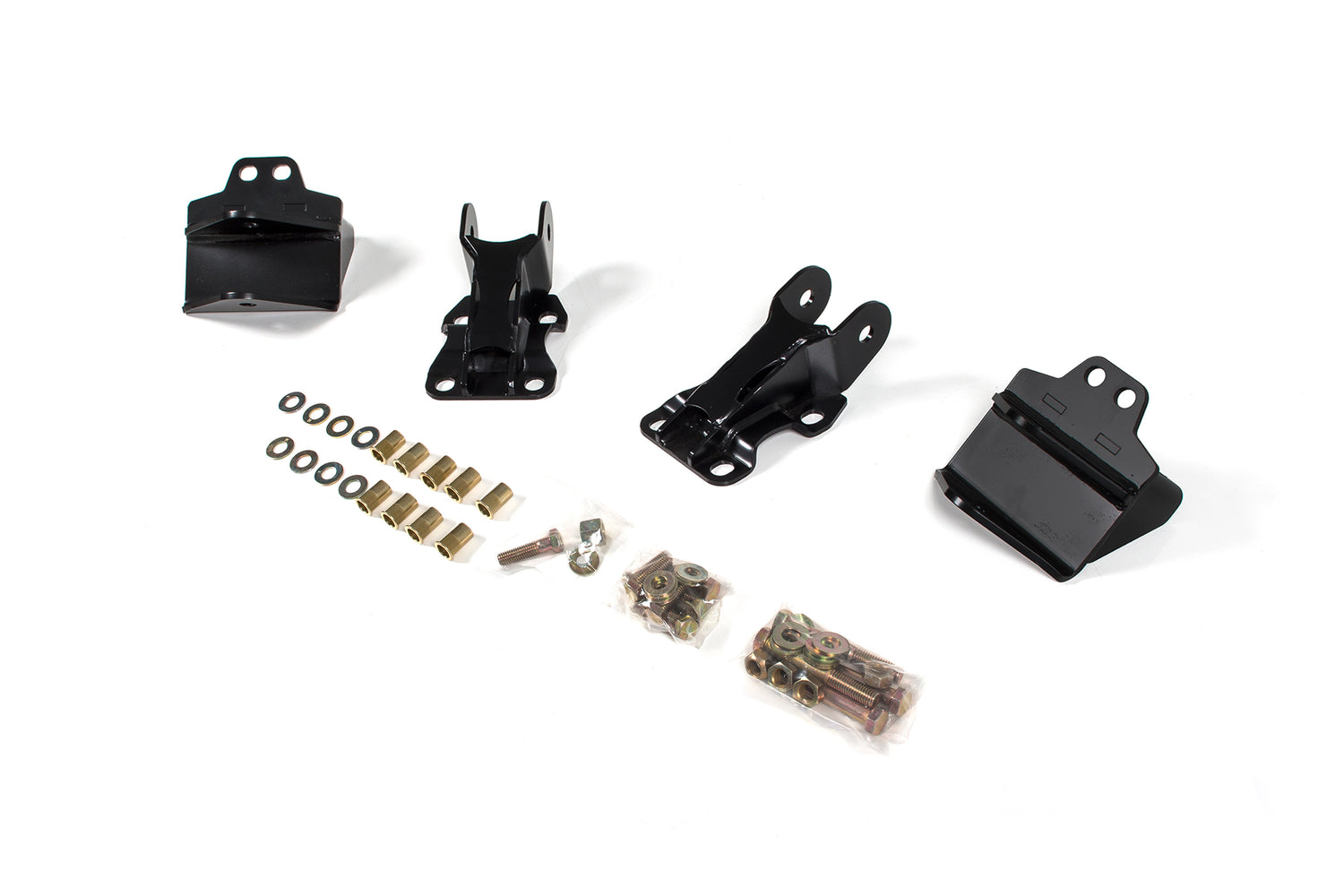

2007-2023 GM 1500 Recoil Traction Bar Mounting Kit (BDS121409)

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design for bind-free performance throughout full wheel travel
• Heavy wall construction with 2-inch OD x 3/16-inch wall steel tubing
• Built with durable forged flex ends capable of up to 15 degrees of misalignment
• Includes polyurethane bushings and UHMW polyurethane bearings for smooth operation
• Designed to fit 2007-2023 Chevy Silverado and GMC Sierra 1500 models
• Can be installed with a range of lift heights
• Aftermarket product made in the USA

The 2007-2023 GM 1500 Recoil Traction Bar Mounting Kit enhances traction for your Chevy Silverado or GMC Sierra 1500 without limiting wheel travel. It features a full-floating design with heavy wall steel tubing and internal compression springs to control axle wrap effectively. This kit is engineered to prevent binding and allow full suspension articulation, improving off-road performance and vehicle stability.

Constructed from 2-inch OD by 3/16-inch wall steel tubing, the mounting kit includes a threaded bung welded near the axle and a CNC-machined end at the frame. The axle mount utilizes large forged flex ends paired with a jam nut and a forged housing with a 1-1/4-inch by 12 threaded shank. Its single-sided snap ring and one-piece flex ball accommodate up to 15 degrees of misalignment in either direction. At the frame end, the traction bar incorporates a specific durometer polyurethane bushing and free floats through dual-stage internal compression springs and UHMW polyurethane bearings. This design ensures reliable, bind-free performance to maximize traction and suspension travel for 2007-2023 GM 1500 trucks.
