2007-2024 Sprinter S&B 22 Gallon Undercarriage Fresh Water Tank (Drivers Side) (10-3012)

Description

These products have an average lead time of 5-7 weeks

Check out the video overview detailing the installation process and features and benefits for the S&B 22 Gallon water tank for the Sprinter.

The S&B 22 gallon driver side undercarriage fresh water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. S&B's tanks are perfect for your home build or build needing RVIA certification. S&B makes tanks in-house and pressure test every tank.

The 22 gallon is designed to mount on the drivers side undercarriage. Get ready to hit the road with this complete package. Includes a mounting kit.

Part Number: 10-3012

Features

• Works on drivers side
• 22 Gallon Tank

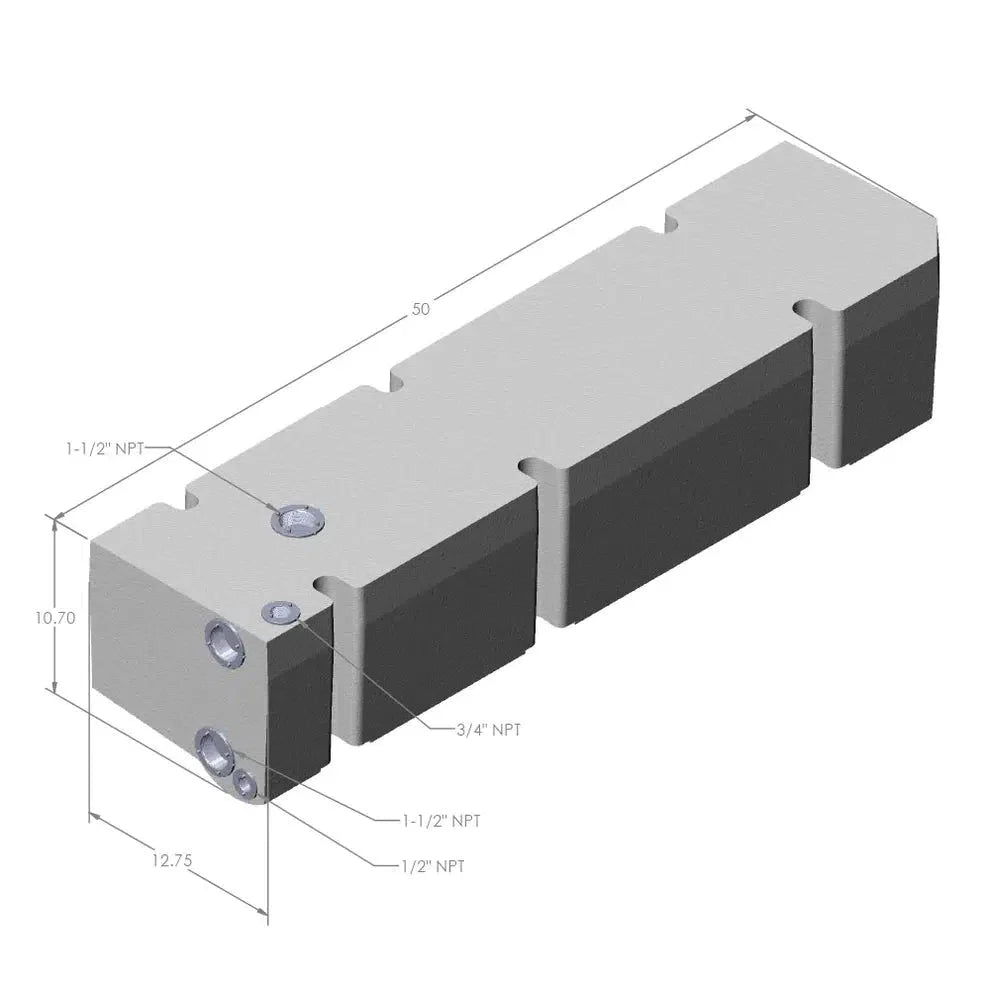

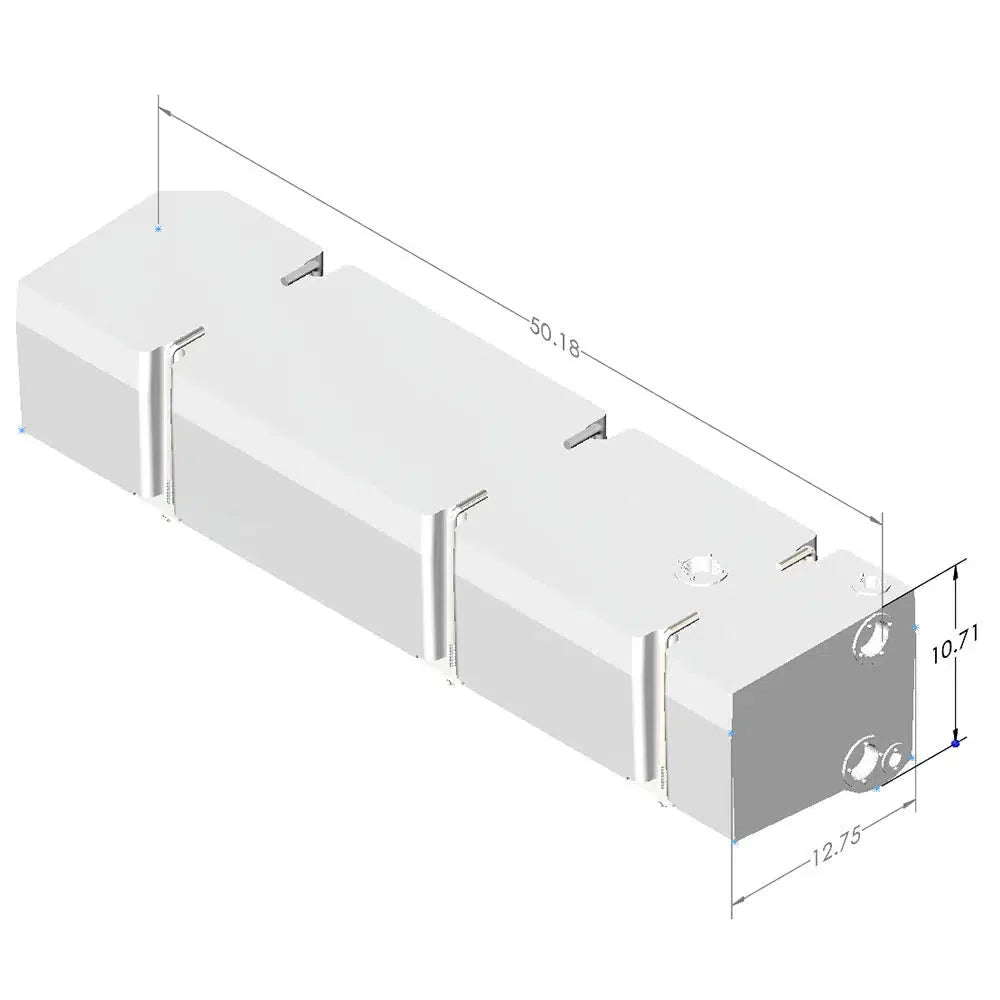

• 50.18" Length x 12.75" Width x 11" Height
• Includes mounting kit
• Ability to use external or KUS internal level sensors (PN: S5U-8 not included)

• Level Sensor Height: 8"
• TEI Tested & Listed / RVIA Approved


Installation

• Click Here

Notes

• Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .4" between the tank and body(where the side steps mount)

Warranty

S&B is firmly committed to providing our customers with best in class, reliable products from Authorized Dealers. S&B products purchased from Authorized Dealers by the original purchaser are backed by S&B’s Million Mile Limited Warranty when used under typical driving conditions and on vehicles for which they were designed. If one of our products is not performing properly or is defective, S&B will replace it. S&B will not be responsible for any consequential, indirect, contingent, special or other damages not outlined in this warranty.
