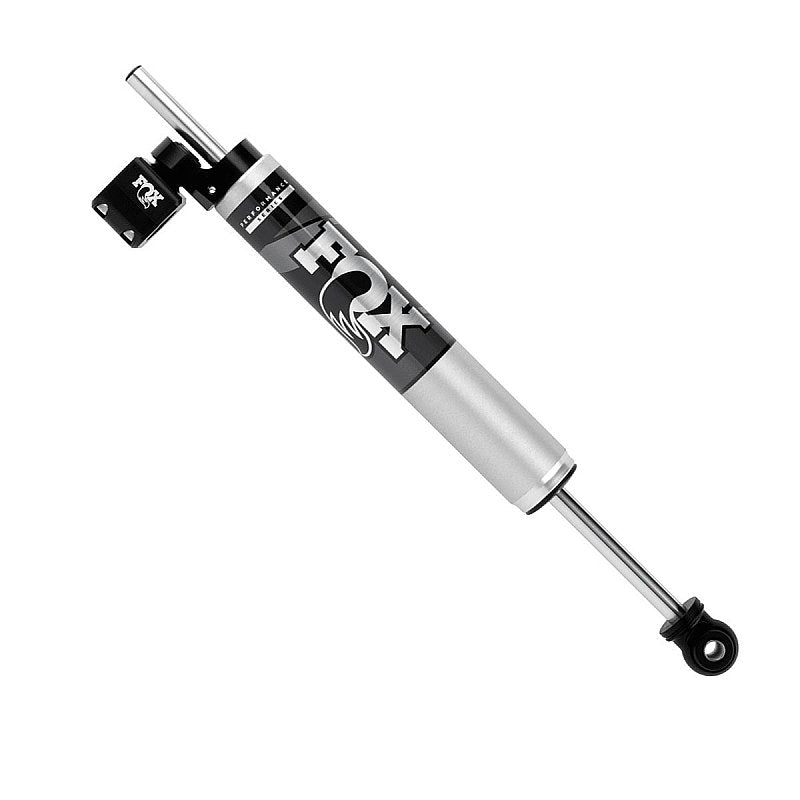

2007-2025 Wrangler / Gladiator Synergy Tuned FOX TS 2.0 Steering Stabilizer, 1-1/2" Clamp (6402-03)

Description

The Synergy tuned FOX TS stabilizers use a Through Shaft architecture that eliminates shaft fluid displacement across the entire stroke in both directions. A conventional stabilizer builds pressure as the shaft occupies more volume in the body, which the driver feels as a push or pull as it returns to neutral. By removing that displacement the TS delivers neutral, consistent damping of unwanted steering feedback from a single bolt on unit, with no second stabilizer or extra mounting hardware required.

Part Number: 6402-03

Features

• Through Shaft design eliminates shaft fluid displacement, delivering neutral damping in both directions.
• Removes the need for dual opposing stabilizers and the extra mounting hardware they require.
• Shares the load when running oversized tires, keeping the tires tracking true and preventing premature steering wear.
• Synergy specific valving tuned for heavy duty truck weight and steering geometry.

Notes

• Verify your tie rod outer diameter before selecting a clamp size.
• To run the stabilizer in the flipped position, the 8806-01 stabilizer stud is required.
• JL and JT applications using the Synergy or Titan tie rod use the axle mount option with the 4050-75 clamp and 4051-01 adapter.
