2007-2026 Sprinter 2500/3500 SRW AlphaXD 7500 Air Suspension Kit w/ Ride Height Sensors (HP10731-X)

Description

Note: This kit fits Sprinters equipped with ride height sensors, which the standard HP10395-X kit does not.

The heavy duty option for a Sprinter that is always loaded. The ALPHA XD uses big 7 inch double convoluted bellows with far more air volume than a standard spring, which is what gets you 7,500 lbs of load leveling capacity instead of 5,000.

Distribute the weight evenly to the tires, keep the van level and stop overtaxing the factory rear suspension. One piece aluminum end caps and 20 support wires mean it holds up to Canadian winters instead of cracking.

Part Number: HP10731-X

Features

• 7,500 lbs of load leveling capacity
• Big 7 inch double convoluted bellows for extra volume
• One piece aluminum end caps, not plastic
• 20 support wires for maximum strength and durability
• Lifetime warranty

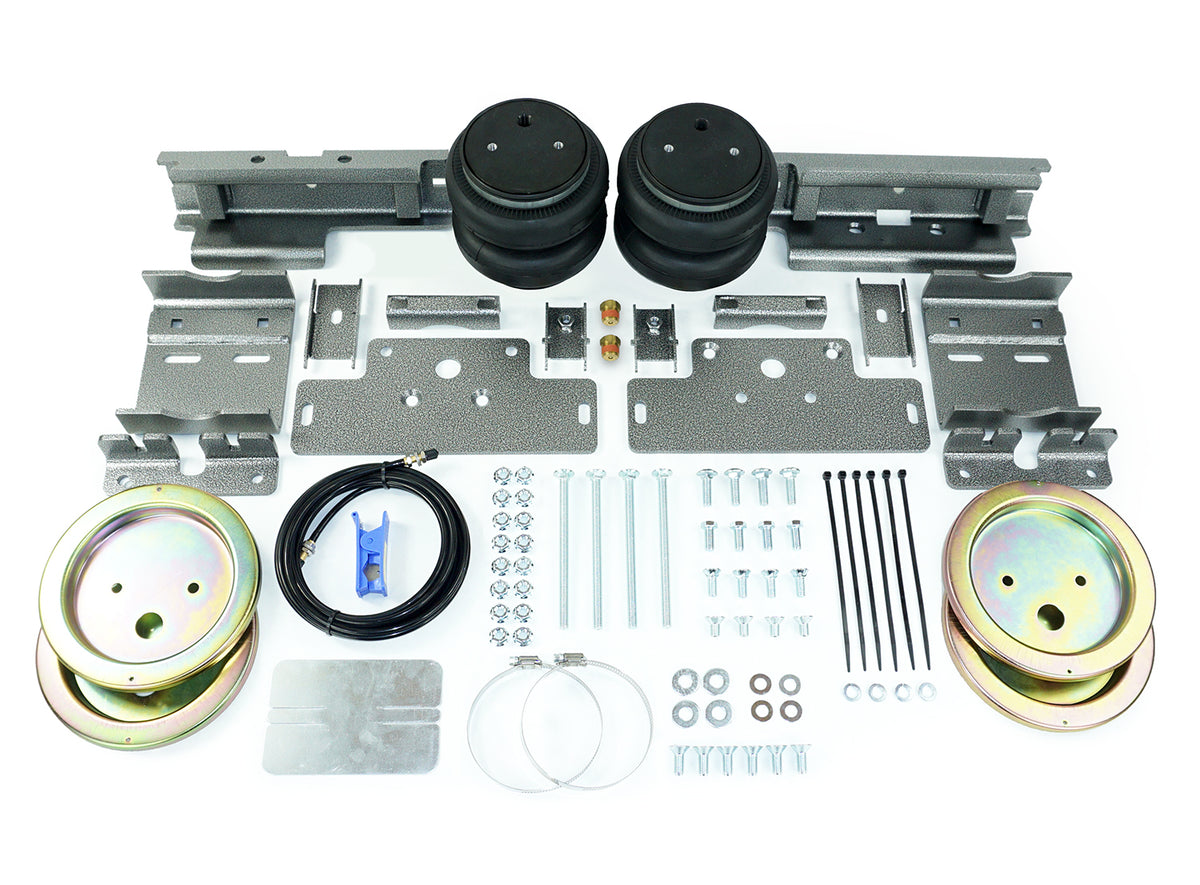

Included:

• 2 air springs
• Corrosion resistant roll plates
• Precision laser cut powder coated steel brackets
• Grade 5 plated hardware
• All accessories required for the perfect bolt on install
• Comprehensive installation guide

Notes

• Fits vehicles with ride height sensors
• Will not fit DRW (dual rear wheel) vehicles
• Will not fit E-Sprinter models
• ALPHA XD kits are not compatible with Pacbrake 2", 4" or 6" air spring spacers
• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating
