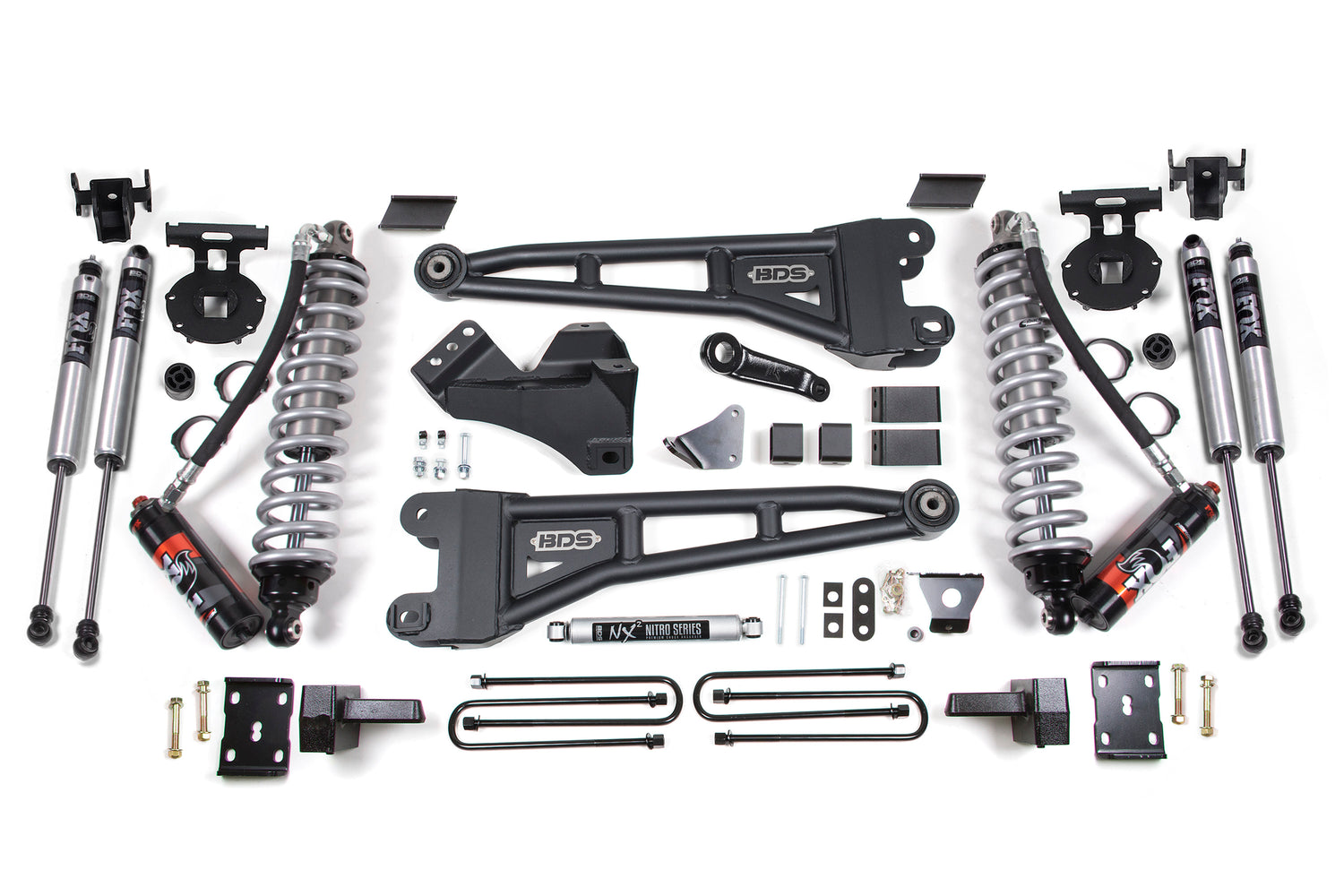

2008-2010 Superduty 6" FOX 2.5 Performance Elite Conversion Kit (BDS1953FPE)

Upgrade your 2008-2010 Ford Super Duty F250 and F350 diesel truck with this BDS 6" radius arm lift kit with FOX Performance Elite coil-over conversion, with clearance for up to 37" tires. Up front it includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks. The rear uses high-strength lift blocks, longer u-bolts, brake line brackets, and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Bolt-on FOX 2.5 Performance Elite coil-overs mount in the factory coil bucket location, built for abuse with race-proven technology
• Remote reservoir adds fluid capacity to keep shocks running cool
• Dual Speed Compression Adjust offers 10 low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir
• Adds a secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 3 inch

Notes

• Removal of the factory block is required.
• Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
• These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs (an extra leaf set above the main pack). Identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
• Although extremely rare, front driveline vibration may occur.
• Front exhaust modification may be required to clear the front driveshaft on gas models.
• U-bolts will not fit dually models.
• Dropped pitman arm will not fit 10-lug wide track F350 models.

Includes

• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS013621, 2008-2010 Ford F250/F350 4wd 6 inch Radius Arm Box Kit - Front (UPC 711745611818)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 inch Lift, Dual Speed Compression Adjust
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
