2008-2010 Superduty 8" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS567H)

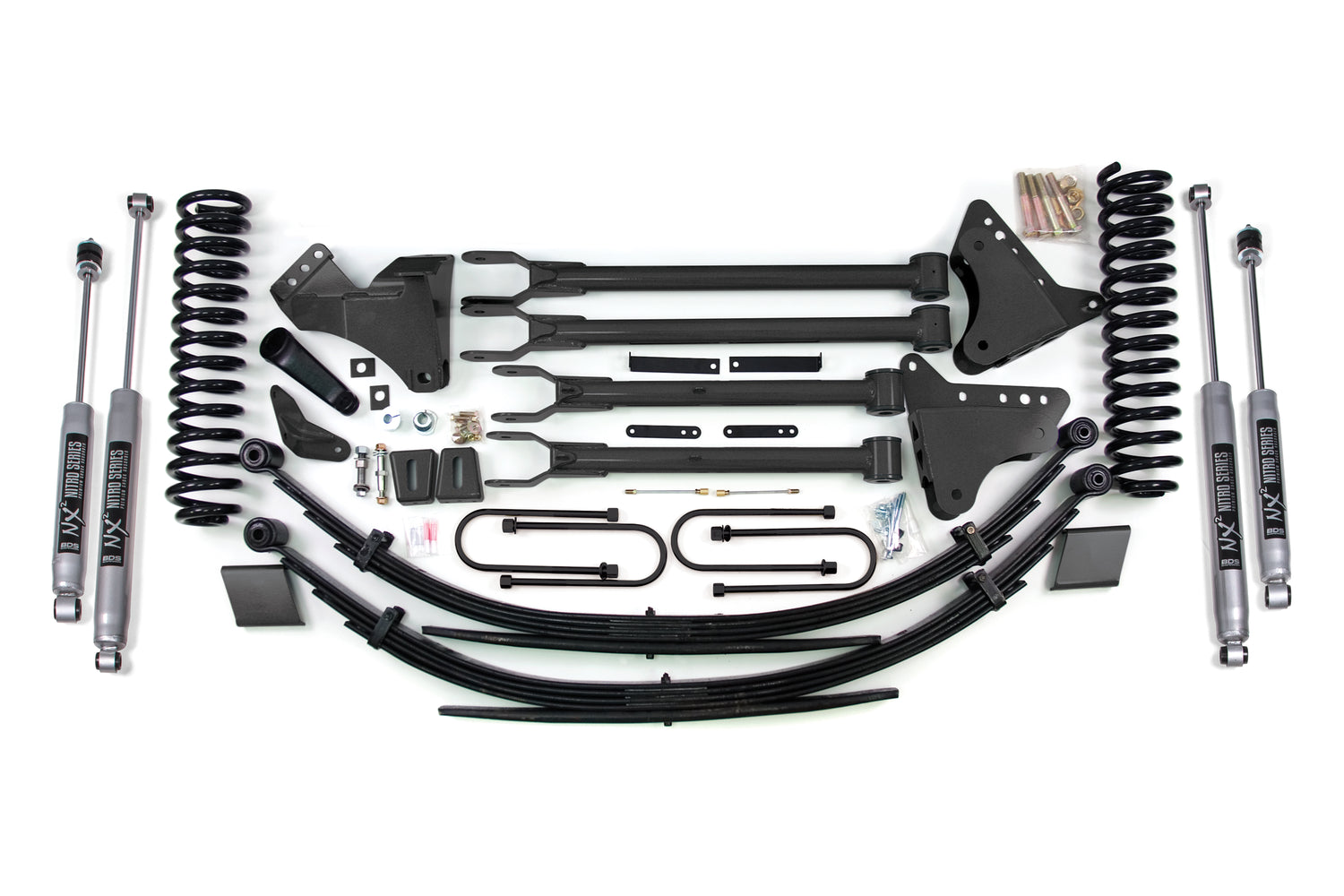

Go big with this BDS 8" lift kit and 4-link conversion for your 2008-2010 Ford Super Duty F250 and F350 diesel, with clearance for up to 38" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms that convert the factory stamped steel radius arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. The rear uses replacement Glide-Ride leaf springs with an integrated overload leaf, u-bolts, brake line brackets, and a matching set of NX2 Nitro or FOX Performance shocks.

The triple-stage Glide-Ride leaf springs run a progressive rate: the primary leafs handle everyday driving, the secondary leafs engage under moderate load, and the bottom overload engages when fully loaded for maximum hauling capacity. This reduces axle wrap and maintains ride quality unloaded without sacrificing payload.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glide-Ride leaf springs to provide full lift height and increased capacity with a built in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• If your vehicle is equipped with a rear anti-sway bar, you will need to order 123009 in the options section.
• If your vehicle is equipped with a carrier bearing, you will need to order 123406 in the options section.
• Front exhaust modification may be required to clear the front driveshaft.
• This system can clear 38's with the addition of a front bumper spacer available in the accessories - part 123020.
• Although extremely rare, front driveline vibration may occur.
• U-bolts will not fit dually models.
• Dropped pitman arm will not fit 10 lug wide track F350 models.

Includes

• BDS003829, 08-16 Ford F250 8 inch Rear Leaf (UPC 658848611430)
• BDS013810, 05 Ford F250/350 4-link Box Kit (1of2) (UPC 658848613854)
• BDS013812, 2008-2010 Ford F250/350 4-link Box Kit (2of2) (UPC 658848613878)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609112)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85765, Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1 (UPC 711745609747)
