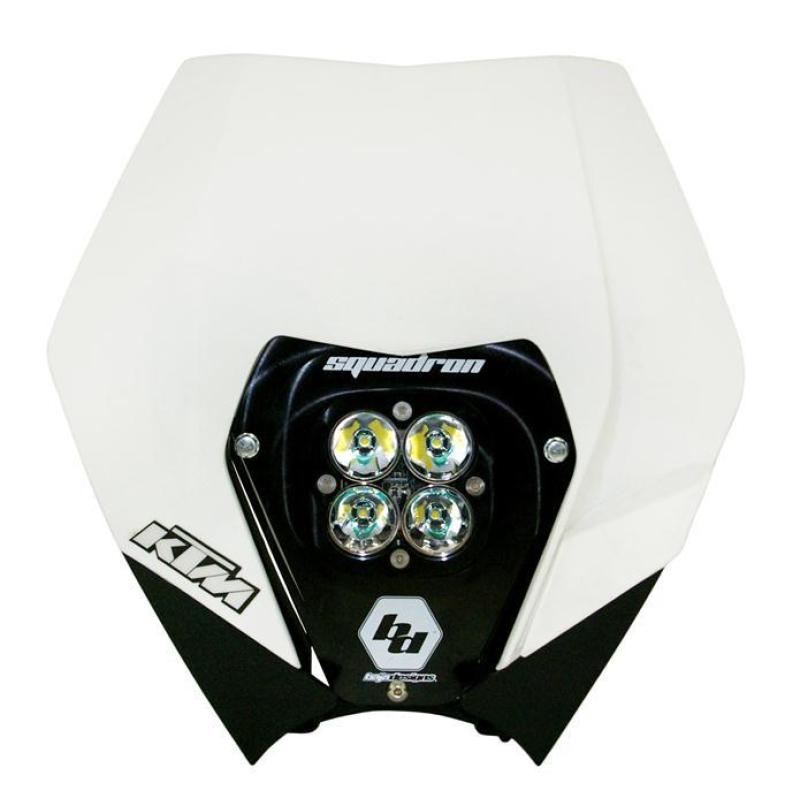

2008-2013 KTM Headlight Kit White Squadron Sport (BAJ557061)

The KTM Squadron Sport Headlight Kit is a comprehensive lighting upgrade designed for KTM models ranging from 2008 to 2013. This kit replaces the factory headlight with a high-intensity LED system, significantly increasing nighttime visibility and safety during technical trail rides. Utilizing the Driving/Combo pattern, it integrates 42-degree wide cornering optics for immediate peripheral coverage and 9-degree spot optics for long-range illumination. The unit is housed in a KTM-specific headlight shell, ensuring a perfect fit and finish that maintains the motorcycle’s aggressive styling while delivering professional-grade lighting performance.

Features

• Direct replacement kit designed specifically for KTM 2008-2013 headlight shells.
• Driving/Combo beam pattern provides a versatile blend of near-field and distance lighting.
• ClearView optics ensure maximum light transmission with a highly controlled beam.
• MoistureBlock technology provides a complete waterproof and submersible seal for all-weather reliability.
• CopperDrive system maximizes LED life and output through advanced thermal management.
• 5000K daylight color temperature minimizes eye fatigue and provides natural terrain rendering.

Specifications

• Brightness: 3,162 Lumens
• Wattage: 30 Watts
• Amperage: 2.2 Amps
• LED Life Expectancy: 49,930 Hours
• Housing Material: Powder Coated Cast Aluminum
• Bezel Material: Billet Machined Aluminum
• Lens Material: Hard Coated Polycarbonate
• Hardware Material: Stainless Steel

Notes

• Exceeds MIL-STD810G standards for thermal shock, vibration, and mechanical impact.
• IP69K certified, ensuring protection against high-pressure washdowns and submersion up to 9 feet.
• IK10 compliant for extreme resistance to high-energy impacts from roost or debris.
