2008-2008 Ram HD 6" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS642H)

BDS Suspension 6" long-arm conversion lift kit for the 2008 Dodge Ram 2500/3500 gas-powered truck, with clearance for up to 37" tires. Long tubular lower control arms reduce caster change through wheel travel for a more controlled feel and retain factory arm triangulation for stability. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, all four control arms, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matched set of NX2 Nitro shocks.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 Nitro Series nitrogen-charged shocks tuned for improved on- and off-road ride
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
• Power Wagon applications require sway bar link kit 122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
• If driveline vibration occurs, order transfer case index kit 122801 or 122802.
• If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.

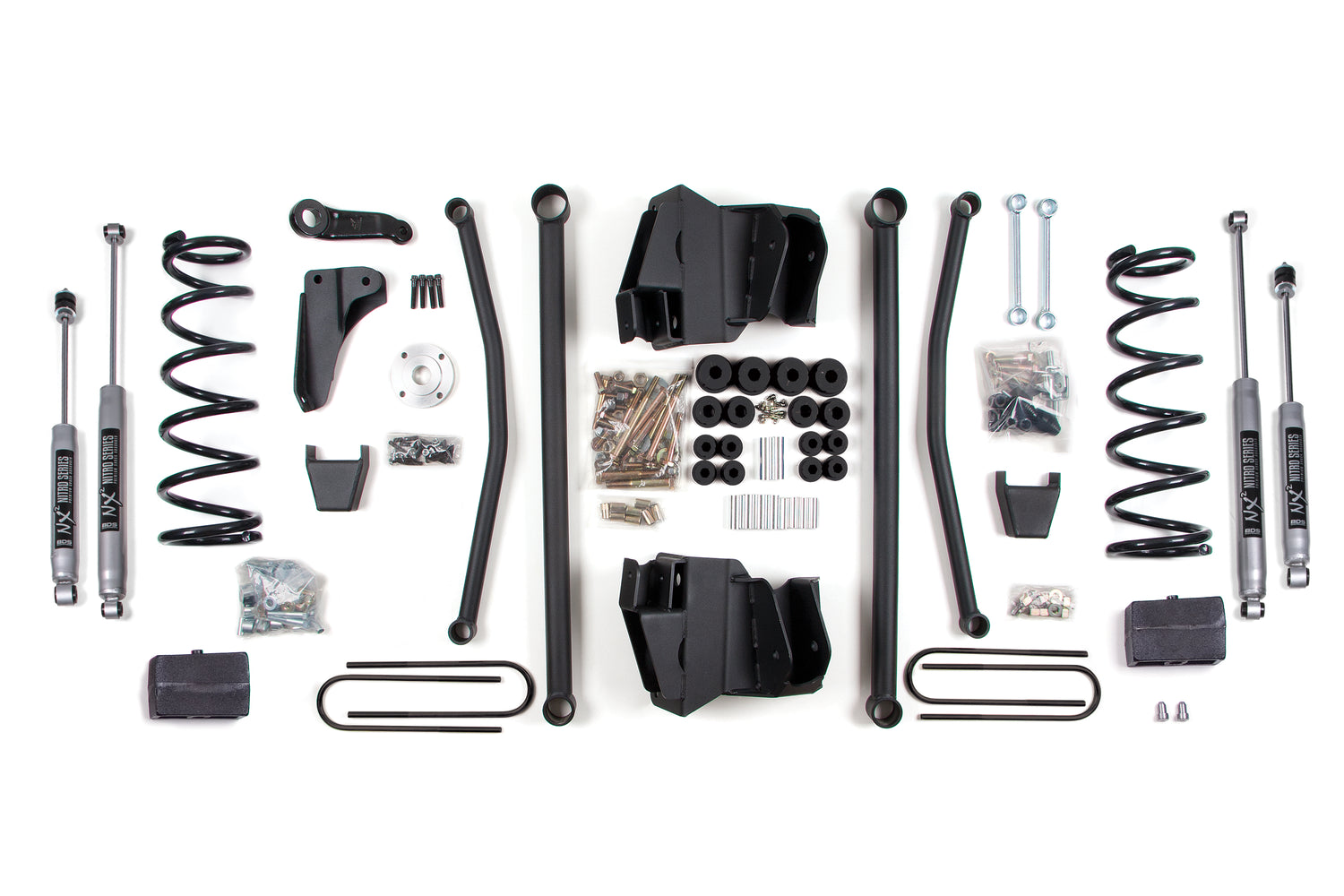

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012602, 08 Ram 6 Inch Long Arm Box kit (UPC 658848612680)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
