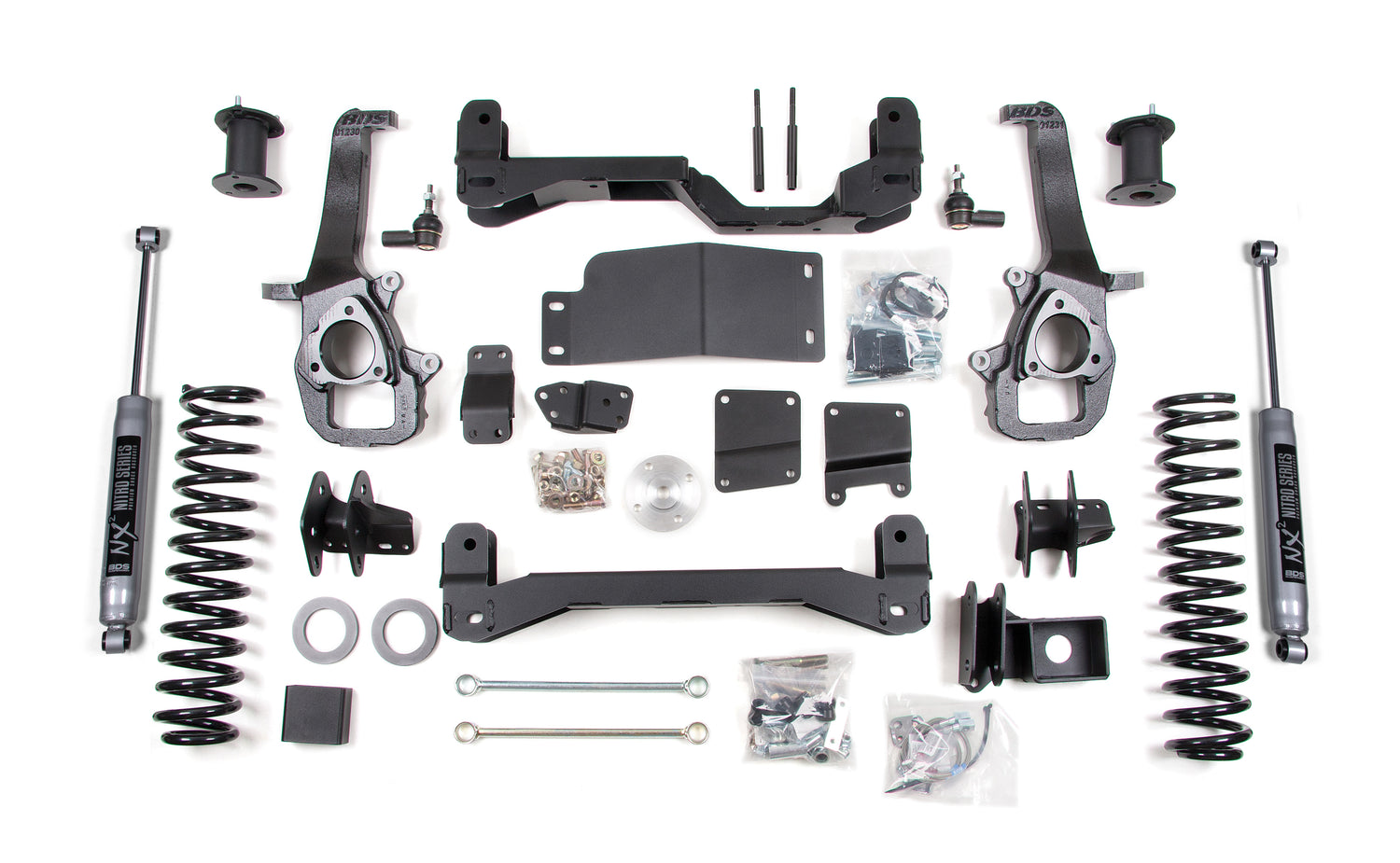

2009-2011 Ram 1500 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1750FS)

BDS 4" suspension lift kit for the 2009-2011 Dodge Ram 1500 4WD, clearing up to 35" tires. The high-clearance front end uses top-mounted strut spacers, 1/4" thick steel crossmembers, a multi-piece differential relocation bracket, and heavy duty skid plates that bolt together into a rigid protective subframe. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry and keep the ESC system compliant, joined by sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear runs progressive-rate Pro-Ride coil springs, upper control arm and track bar relocation brackets, bump stop extensions, and sway bar links.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Maintains factory ride quality
• Heavy-duty steel construction with powder coat finish
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish
• FMVSS No.126 compliant
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• These trucks vary from 1" to 3" tail high from the factory. Measure your vehicle before ordering. Part numbers 022209, 022309 and 022509 can be substituted to achieve the desired stance.
• Not recommended for AWD models.
• The rack and pinion steering is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination; larger tire diameter and/or reduced backspacing increase sensitivity and can cause minor steering wheel shimmy.
• Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be reinstalled with factory tires.

Includes

• BDS022209, 09-12 Dodge 1500 2 Inch Rear Spacer Kit (UPC 658848615315)
• BDS022401, 06-10 Dodge 1500 4 Inch Front Box Kt (3of4) (UPC 658848615360)
• BDS022605, 06 Dodge 1500 6 Inch (4of4) (UPC 658848615421)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
