2009-2011 Ram 1500 6" Lift Kit with NX2 Nitro Shocks (BDS1751H)

BDS 6" suspension lift kit for the 2009-2011 Dodge Ram 1500 4WD, clearing up to 37" tires. The high-clearance front end uses top-mounted strut spacers, 1/4" thick steel crossmembers, a multi-piece differential relocation bracket, and heavy duty skid plates that bolt together into a rigid protective subframe. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry and keep the ESC system compliant, joined by sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear runs progressive-rate Pro-Ride coil springs, upper control arm and track bar relocation brackets, bump stop extensions, and sway bar links.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• BDS NX2 nitrogen-charged gas shocks
• Twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston and self-lubricating seals
• Silver powder coat finish
• FMVSS No.126 compliant
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• These trucks vary from 1" to 3" tail high from the factory. Measure your vehicle before ordering and select the appropriate rear kit. Part numbers 022209, 022309 and 022509 can be substituted to achieve the desired stance.
• Use the 3" rear coil springs if your vehicle is 3" tail high from the factory; use the 5" rear coil springs if your vehicle is level to 1" tail high.
• Not recommended for AWD models.
• The rack and pinion steering is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination; larger tire diameter and/or reduced backspacing increase sensitivity and can cause minor steering wheel shimmy.
• Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be reinstalled with factory tires.
• TRX models will achieve approximately 1" additional lift. This lift is not recommended on TRX models due to possible CV shaft vibration; instead consider the 4" lift system for 5" of lift, or replace the TRX struts with standard struts for use with this system.

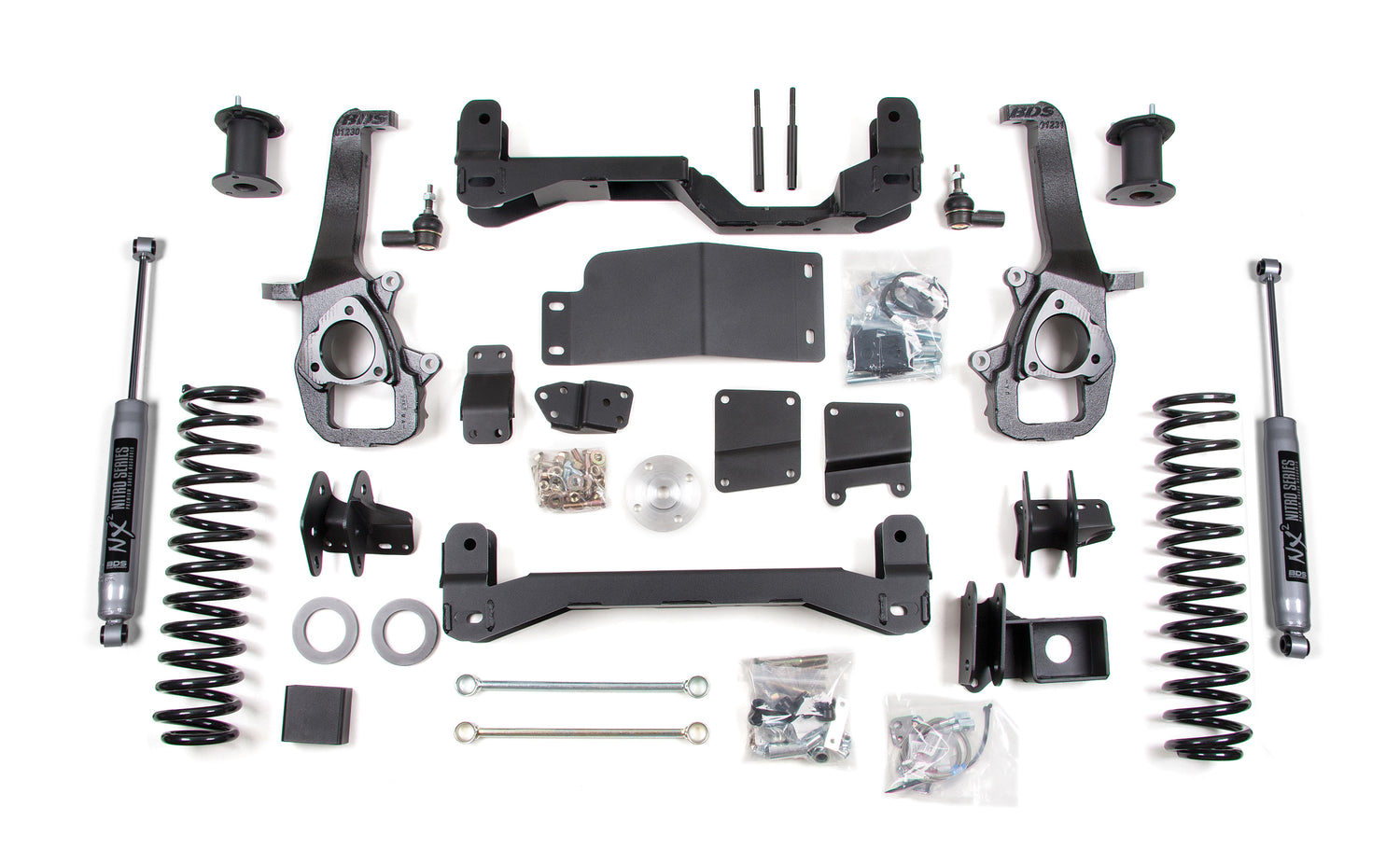

Includes

• BDS022309, 09-18 Dodge 1500 3in Rear Box Kit (UPC 658848615353)
• BDS022605, 06 Dodge 1500 6 Inch (4of4) (UPC 658848615421)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022623, 06-10 Dodge 1500 6 Inch Front Box Kt (3of4) (UPC 658848615476)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
