2009-2011 Ram 1500 6" Lift Kit with FOX 2.0 Performance Shocks (BDS622FS)

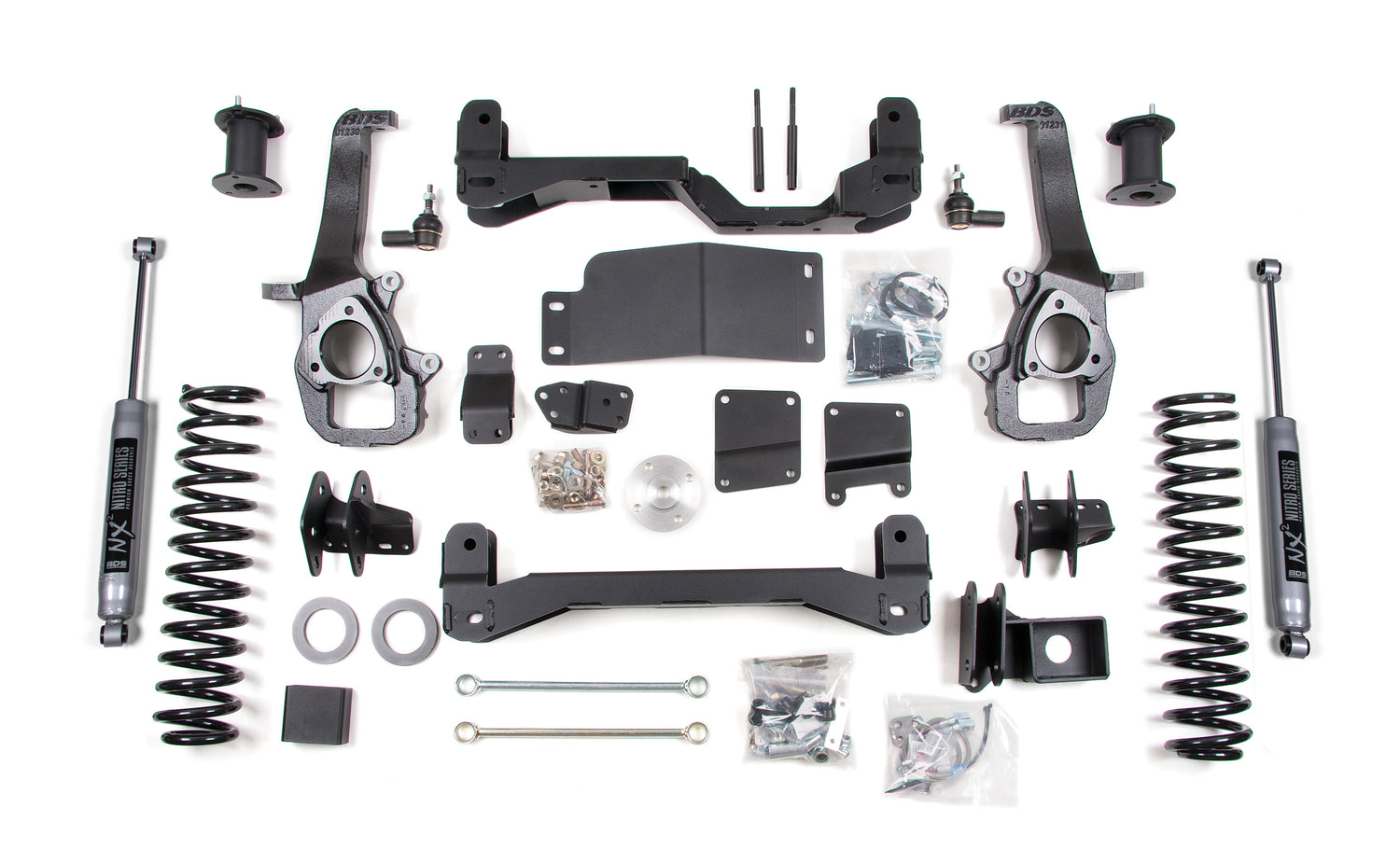

BDS steps up your 2009-2011 Dodge Ram 1500 4WD with this 6" suspension lift kit, with clearance for up to 37" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry for solid on-road handling. Up front it uses top mounted strut spacers, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions, sway bar links, and your choice of NX2 Nitro or FOX 2.0 IFP shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series IFP gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• FMVSS No.126 Compliant
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• These trucks can vary from 1 inch to 3 inch tail high from the factory. Be sure to measure your vehicle before ordering. Part numbers 022209, 022309 and 022509 can all be substituted to achieve the desired stance.
• 3 inch coil springs: use if your vehicle is 3 inch tail high from the factory.
• 5 inch coil springs: use if your vehicle is level to 1 inch tail high from the factory.
• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or decreased wheel backspacing can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be reinstalled with factory tires.
• TRX models will achieve approximately 1 inch additional lift. This lift is not recommended for use on TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider the 4 inch lift system for 5 inch of lift or replace the TRX struts with standard struts for use with this system.

Includes

• BDS022509, 09-10 Dodge 1500 5in Rear Box Kit (UPC 658848615414)
• BDS022605, 06 Dodge 1500 6 Inch (4of4) (UPC 658848615421)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022623, 06-10 Dodge 1500 6 Inch Front Box Kt (3of4) (UPC 658848615476)
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
