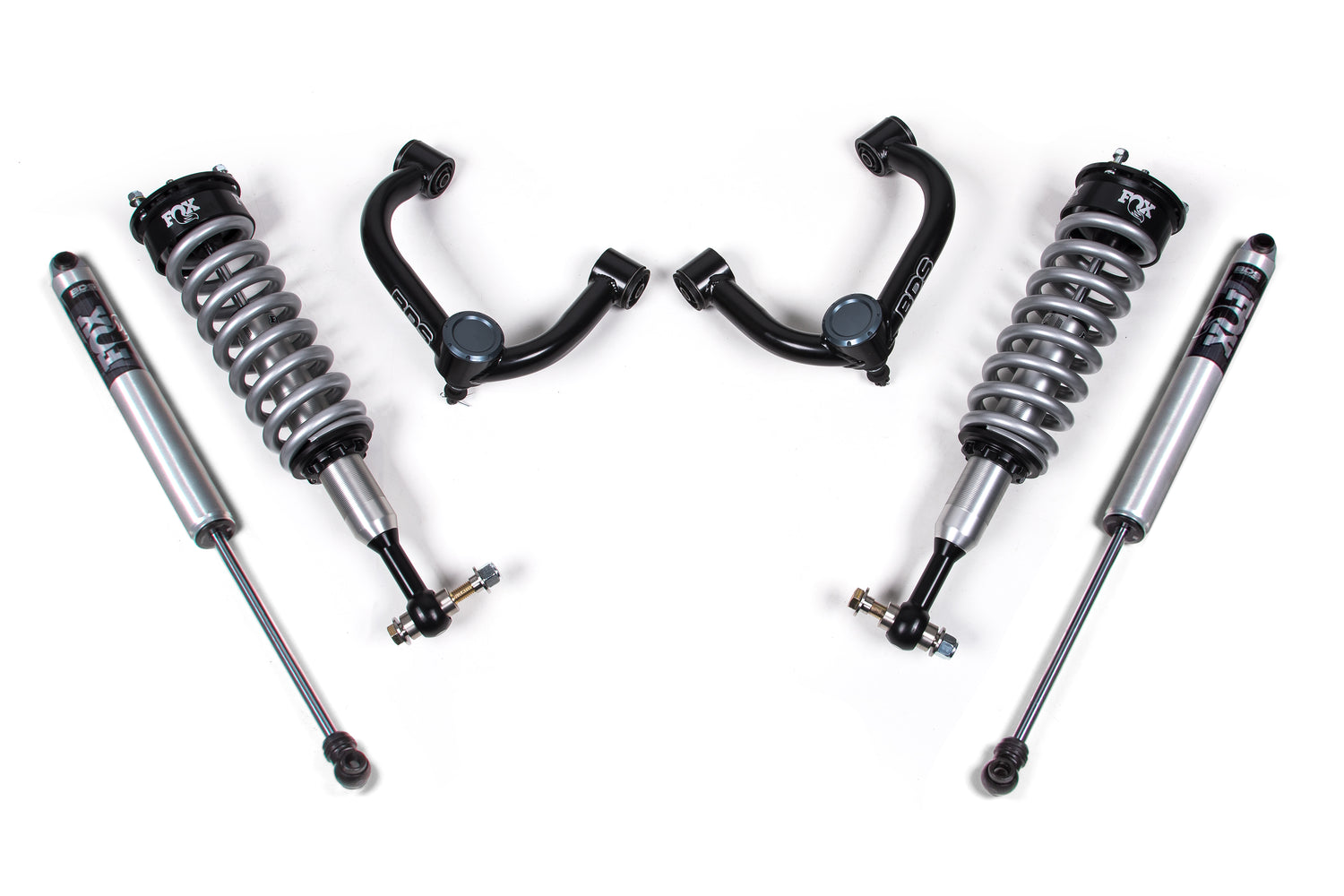

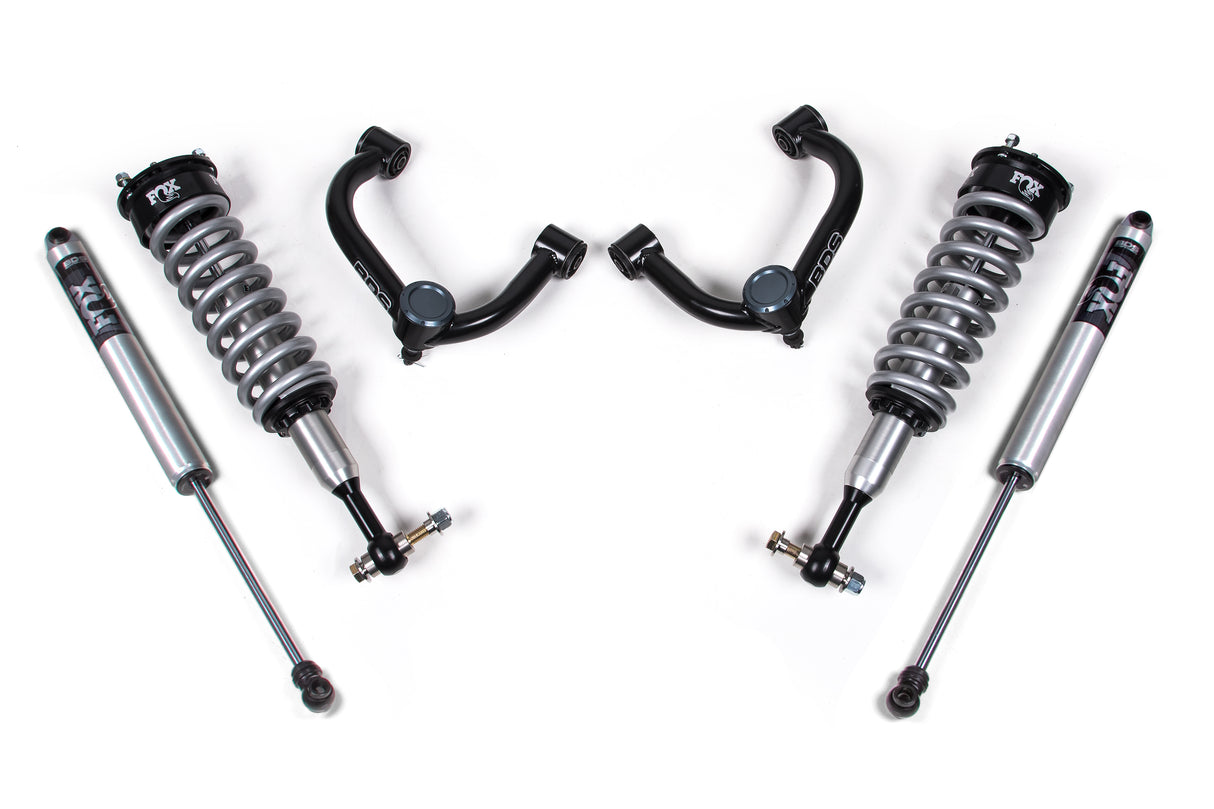

2009-2013 F-150 2" Lift Kit with FOX 2.0 Performance Shocks (BDS1554FSL)

BDS 2" leveling kit with FOX 2.0 coil-over shocks for 2009-2013 Ford F150 trucks, with clearance for up to 35" tires. Up front are FOX 2.0 Performance Series coil-overs and heavy-duty tubular upper control arms. The rear uses matching FOX 2.0 Performance shocks.

The FOX 2.0 coil-overs are a direct bolt-in replacement for the factory strut, with a 6061 T6 aluminum body, internal floating piston, and a 5/8" hard chrome plated alloy shaft. The HD upper control arms use 1.5" OD x .120-wall tubing with an indexed ball joint cup for additional down travel and camber adjustment, durometer-specific frame bushings, and a greaseable ball joint.

Features

• FOX 2.0 IFP shocks eliminate oil aeration for max performance from the factory-tuned valving
• HD upper control arms provide superior strength and proper alignment
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts level the stance

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

Notes

• Will not fit HD models (7 lug)
• Does not fit SVT Raptor

Includes

• BDS123253, 2004-2020 F150 Upper Control Arm Box Kit (UPC 711745604100)
• FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
• FOX98502006, 09-ON Ford F150 4WD Front Coilover, PS, 2.0, Internal Floating Piston, 5.4 inch, 0-2 inch Lift (UPC 714686858748)
