2009-2013 F-150 4" Lift Kit with FOX 2.0 Performance Shocks (BDS599FS)

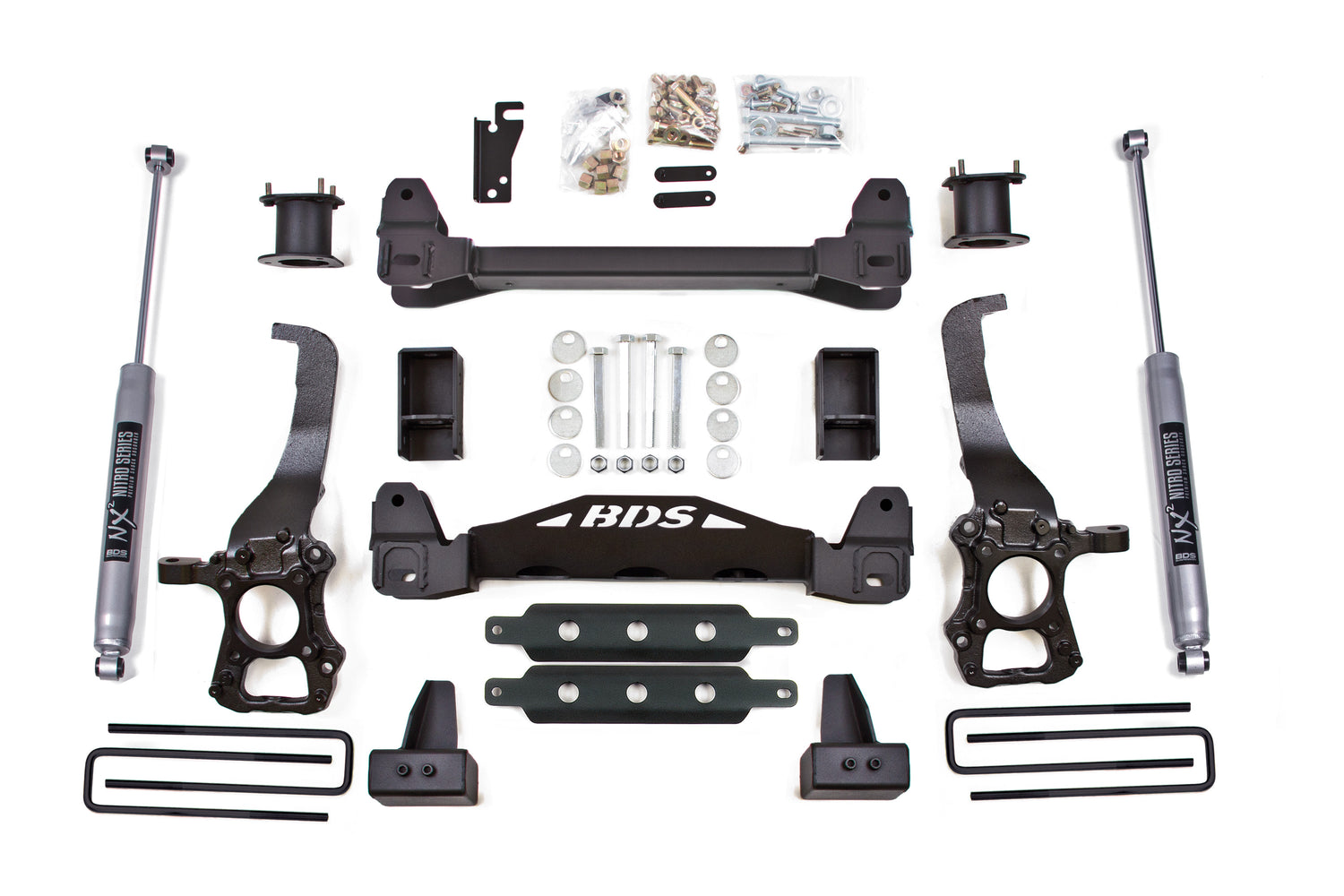

This BDS 4" suspension lift kit updates the style and ride of your 2009-2013 Ford F150 2WD truck with clearance for up to 35" tires on BDS's high-clearance design. Up front it runs high-arched 1/4" steel crossmembers, a steel top mount strut spacer, a skid plate, massive CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar relocation brackets, brake line brackets, and alignment cam bolts. The rear uses high strength cast steel lift blocks, longer u-bolts, and FOX 2.0 Performance Series shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• FMVSS No.126 compliant
• 2-inch Impact extruded aluminum shock body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Will not fit HD models (7 lug).
• 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 tire.
• E-brake bracket (123018) required for factory powersteps.
• For a level to tail low appearance use #023415 with Kit #599H. Block kits replace the factory 1-1/4 inch block.
• Early 2009 models may require brake assembly modification.
• Vehicles equipped with a 2-piece rear driveshaft may require carrier bearing drop kit #122406.

Includes

• BDS023415, 09-13 F150 4 Inch Frt/2in Rear Box Kit (UPC 658848615728)
• BDS023624, 09 Ford F150 2wd Front Box Kit (3of3) (UPC 658848615841)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
• FOX98224828, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
