2009-2013 F-150 6" Lift Kit with NX2 Nitro Shocks (BDS577H)

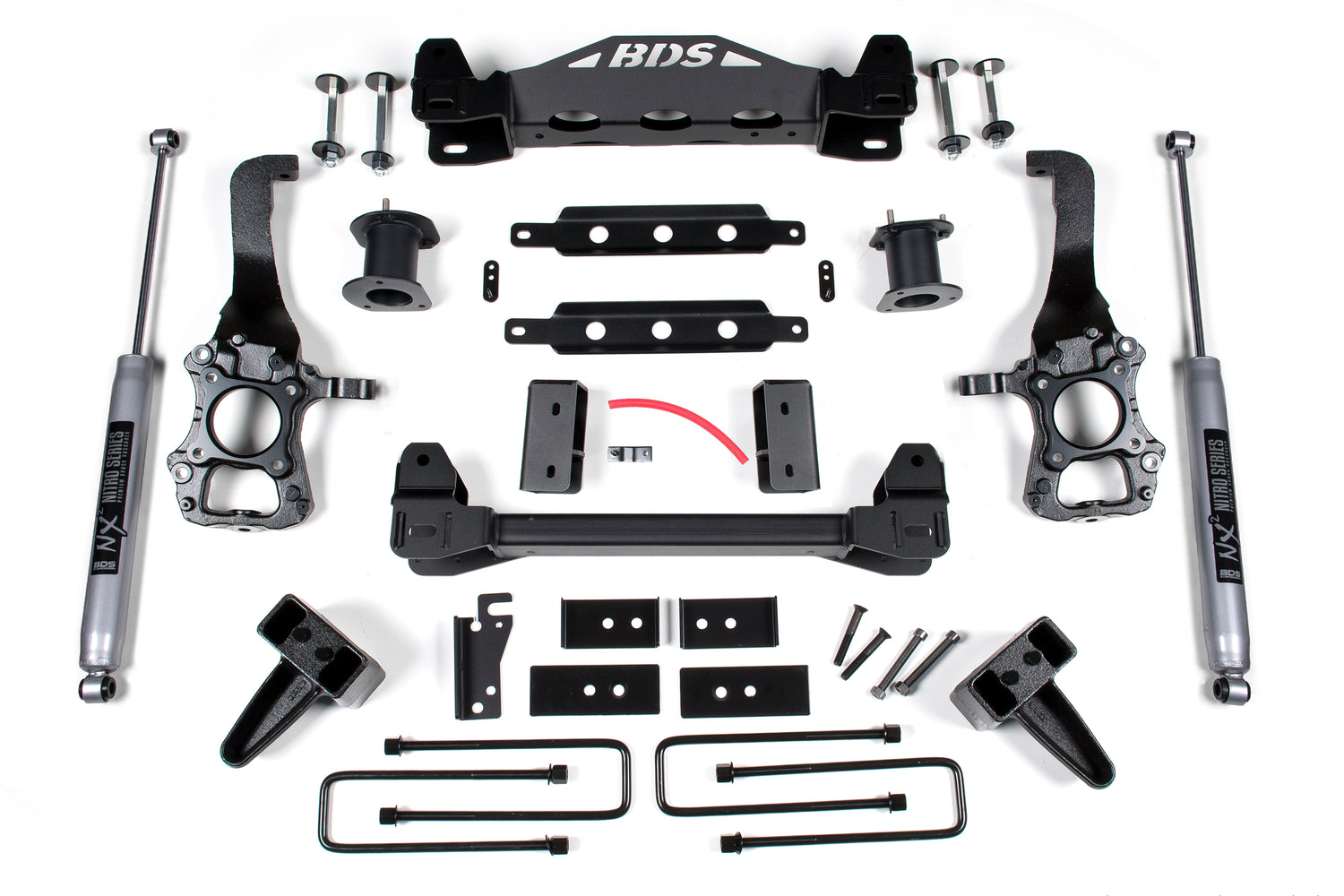

This BDS Suspension 6" lift kit is a 2WD-specific system for your 2009-2013 Ford F150 2WD truck, with clearance for up to 37" tires on BDS's high-clearance design. Up front it runs high-arched 1/4" steel crossmembers, top mounted strut spacers, a differential skid plate, massive CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar relocation brackets, brake line brackets, and alignment cam bolts. The rear uses high strength cast steel lift blocks, longer u-bolts, and NX2 Nitro shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• FMVSS No.126 compliant
• Nitrogen-charged twin-tube shock design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.5

Notes

• Strut compressor required for installation.
• Will not fit HD models (7 lug).
• 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 tire.
• E-brake bracket (123018) required for factory powersteps.
• The 4 inch blocks net a level/tail LOW stance; the 5 inch blocks net a level/tail HIGH stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405.

Includes

• BDS013529, 2009-2016 Ford F150 Rear Box Kit (UPC 658848613656)
• BDS023624, 09 Ford F150 2wd Front Box Kit (3of3) (UPC 658848615841)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
• BDS98163, 09 Ford F150 6 Inch Strut Kit (UPC 711745610354)
