2009-2013 F-150 4" Lift Kit with FOX 2.0 Performance Shocks (BDS598FS)

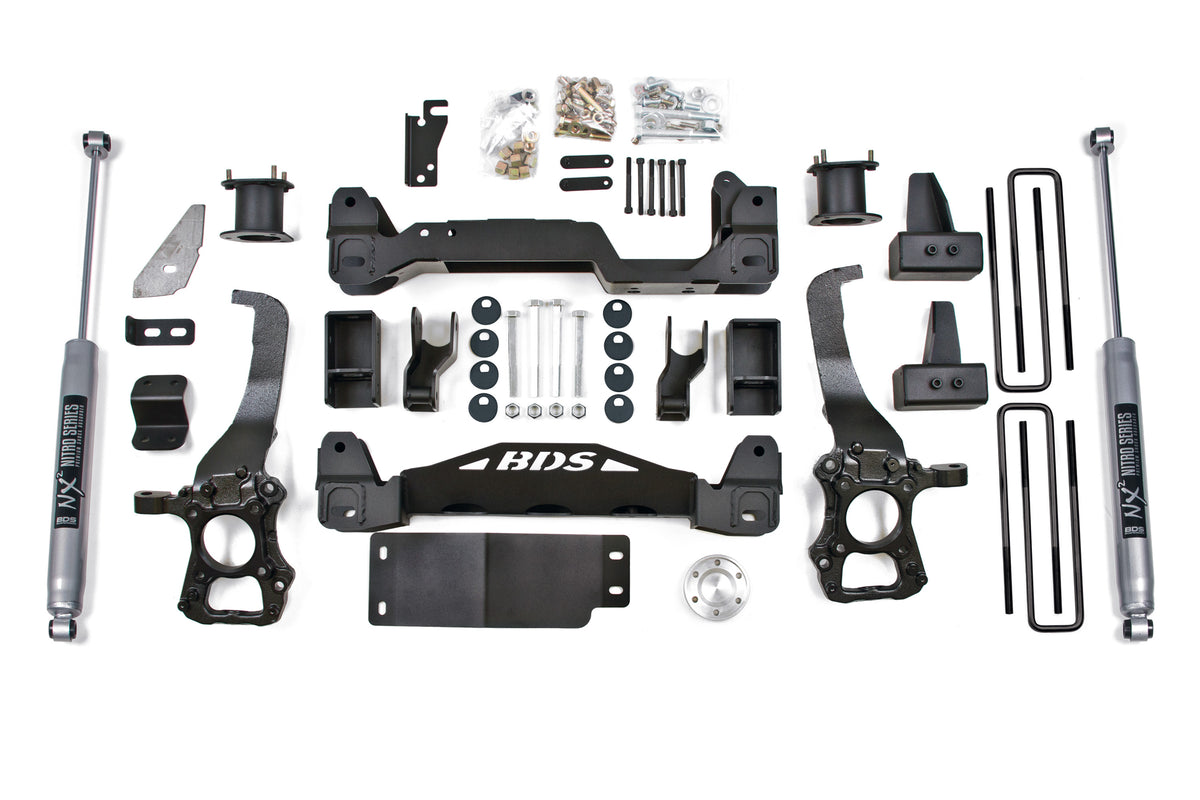

This BDS 4" suspension lift kit sets up your 2009-2013 Ford F-150 4WD right, with clearance for up to 35" tires. The high-clearance front end uses 1/4" thick steel crossmembers, top-mounted strut spacers, multipiece differential relocation brackets and a skid plate, while CNC-machined ductile iron steering knuckles correct steering geometry at ride height and maintain ESC compatibility. In the rear, cast steel lift blocks and longer u-bolts level the stance. This kit ships with FOX 2.0 Performance Series shocks: 2" extruded aluminum body, internal floating piston monotube design, 5/8" hard chrome heat-treated shaft and application-specific valving.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• FOX 2.0 Performance Series shocks for maximum on and off-road performance
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Long-lasting clear anodized finish
• FMVSS No.126 Compliant

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Requires frame bracket modification and welding.
• 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 tire.
• E-brake bracket required for factory powersteps (123018).
• For a level to tail low appearance use #023415 with Kit #598H. Block kits replace factory 1-1/4 inch block.
• Will fit EcoBoost models.
• Models equipped with AWD/Auto 4WD may require front driveshaft replacement.
• Will not fit HD models (7 lug).

Includes

• BDS023405, 09-13 F150 4 Inch Strut Spacer Box Kit (UPC 658848615643)
• BDS023622, 2009-2014 Ford F150 Box Kit (3of4) (UPC 658848615827)
• BDS023623, 2009-2014 Ford F150 Box Kit (4of4) (UPC 658848615834)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
• FOX98224828, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
