2009-2013 F-150 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1919FS)

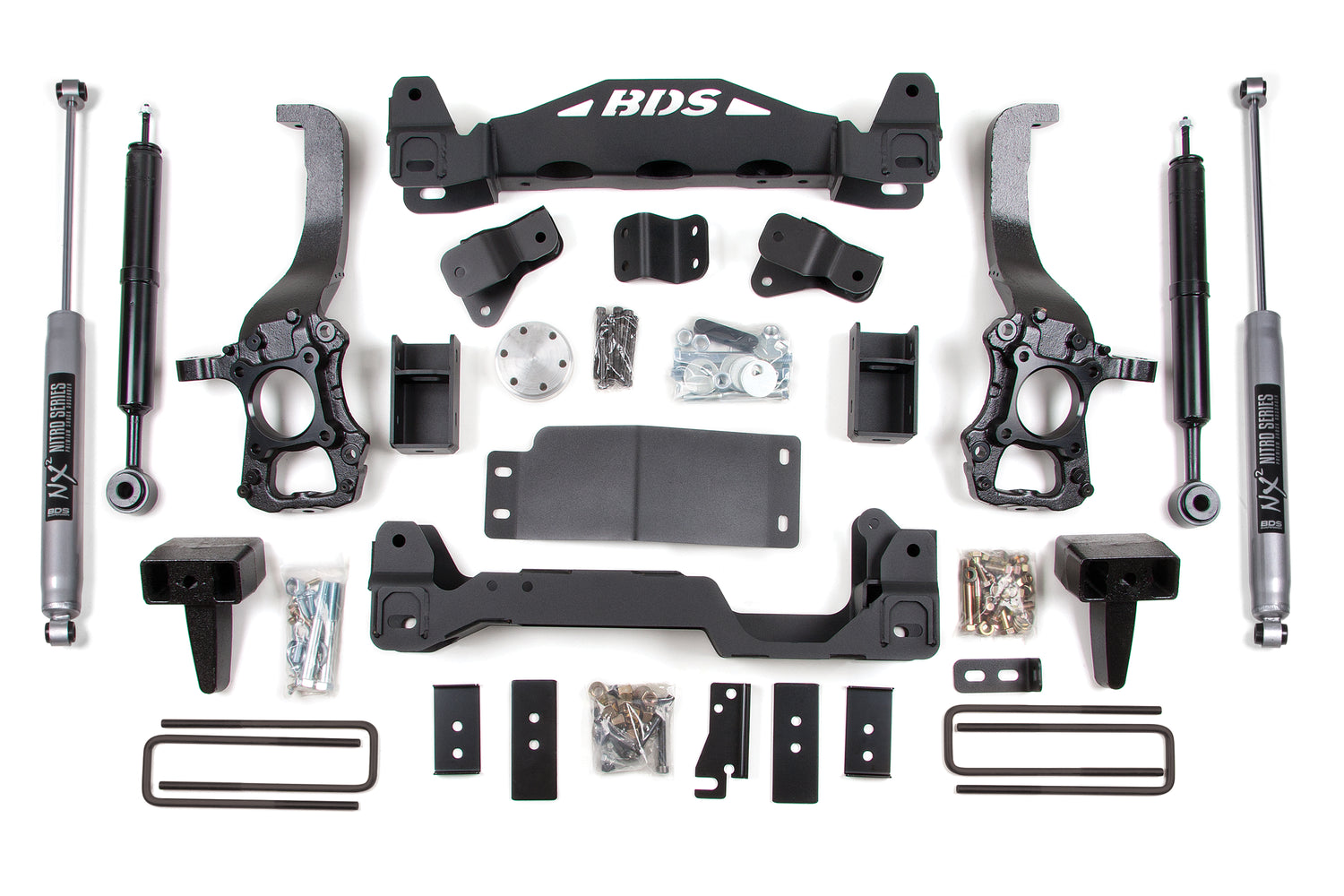

Take your 2009-2013 Ford F-150 4WD truck to new heights with this BDS 6" lift kit with clearance for up to 37" tires. The high-clearance front end uses 1/4" thick high-arched steel crossmembers, top-mounted strut spacers, multipiece differential relocation brackets, a skid plate, and CNC-machined ductile iron steering knuckles with sway bar relocation brackets, brake line brackets, and alignment cam bolts. The rear uses high-strength cast steel lift blocks and longer u-bolts with NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• This kit is FMVSS No.126 Compliant
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Strut compressor required for installation.
• Requires frame bracket modification and welding.
• 18 inch wheels with 5-5.5 inch total backspacing should be test fit prior to mounting Tire to ensure proper clearance to BDS steering knuckle.
• 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
• E-brake bracket required for factory powersteps (123018). Block kits replace factory 1-1/4 inch block.
• The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #123406.
• Will fit EcoBoost models.
• Models equipped with AWD/Auto 4wd may require front driveshaft replacement.
• Will not fit HD models (7 lug).

Includes

• BDS013429, 09-15 F150 4 inch Rear Block Kit (UPC 658848613519)
• BDS023622, 2009-2014 Ford F150 Box Kit (3of4) (UPC 658848615827)
• BDS023623, 2009-2014 Ford F150 Box Kit (4of4) (UPC 658848615834)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
• BDS98163, 09 Ford F150 6 Inch Strut Kit (UPC 711745610354)
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
