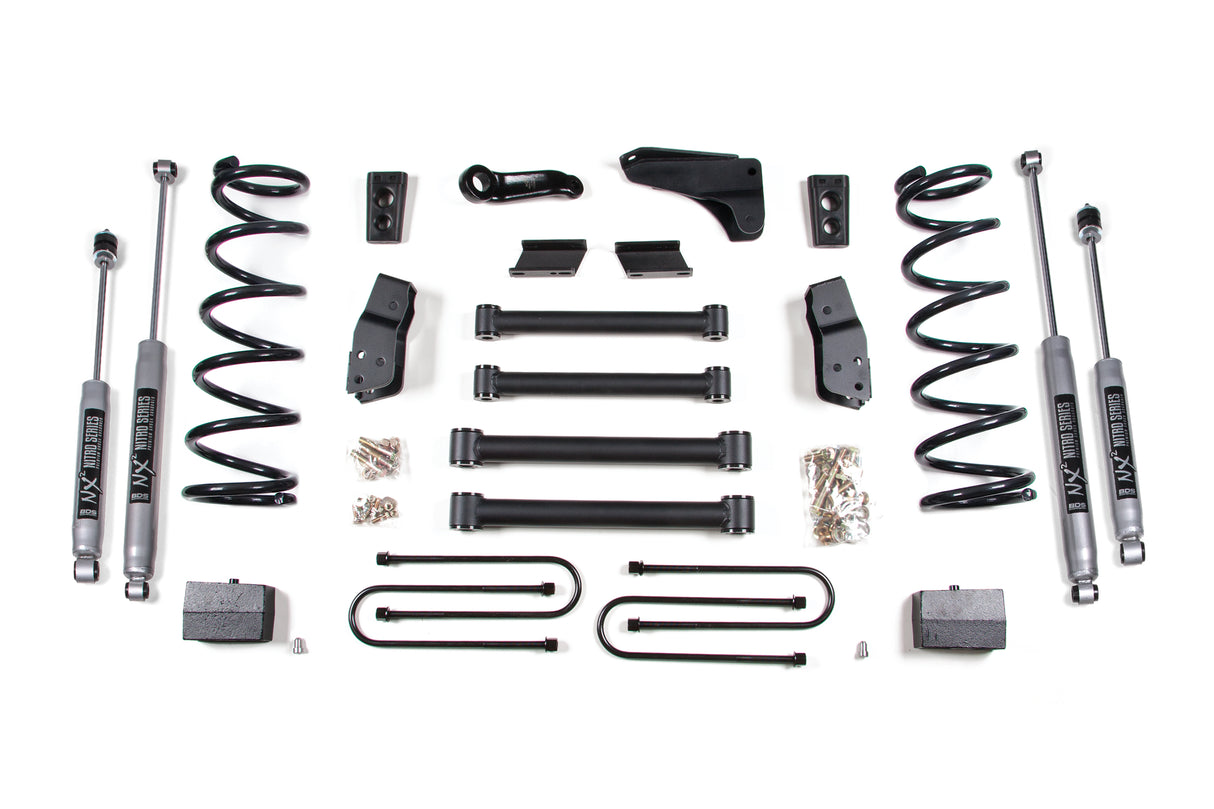

2008-2008 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS290FS)

BDS 6" lift kit for the 2009-2013 Dodge Ram 2500 and 3500 4WD, with clearance for up to 36" tires. Up front it uses longer-than-stock tubular lower control arms with a relocation bracket to rotate the axle and flatten the upper arm angle, full-length gas-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar relocation bracket for steering correction, bump stops, sway bar links and FOX 2.0 Performance Series shocks. The rear runs heavy duty cast steel blocks, longer u-bolts and matching FOX 2.0 Performance Series shocks.

Features

• Tubular short control arms improve strength, handling and caster control
• Heavy duty control arm relocation brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs for ride quality on any terrain
• Front track bar relocation bracket repositions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• Rear cast iron block and u-bolt kit for 4" of rear lift, tapered for correct pinion angle with offset pin to restore axle position
• FOX 2.0 Performance Series shocks: 2" Impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4068.
• Power Wagon applications require sway bar link kit #22401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".
• If driveline vibration occurs, order transfer case index kit 122801 or 122802.
• If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2"-1-5/8" you will need to add part # BDS082404 to your kit.

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012621, 2008 Dodge 6 Inch Box Kit (UPC 658848612802)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
