2008-2008 Ram HD 6" Lift Kit with NX2 Nitro Shocks (BDS687H)

This BDS 6" lift kit fits the 2009-2013 Dodge Ram 2500 and 3500 4WD gas truck, with clearance for up to 36" tires. Up front it runs gas-specific Pro-Ride progressive rate coil springs, all four control arms plus relocation bracket, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, sway bar links and NX2 Nitro nitrogen charged shocks. The longer lower control arms rotate the axle for proper alignment while the relocation bracket flattens the upper arm angle to keep factory handling. In the rear it uses heavy duty cast steel blocks, longer u-bolts and a matching set of NX2 Nitro shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 Nitro IFP gas shocks for improved ride and offroad performance
• BDS leaf springs provide a 5" rear lift and come with u-bolts
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4068.
• Power Wagon applications require sway bar link kit #22401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".
• If driveline vibration occurs, order transfer case index kit 122801 or 122802.
• If your truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2" to 1-5/8", you will need to add part BDS082404 to your kit.

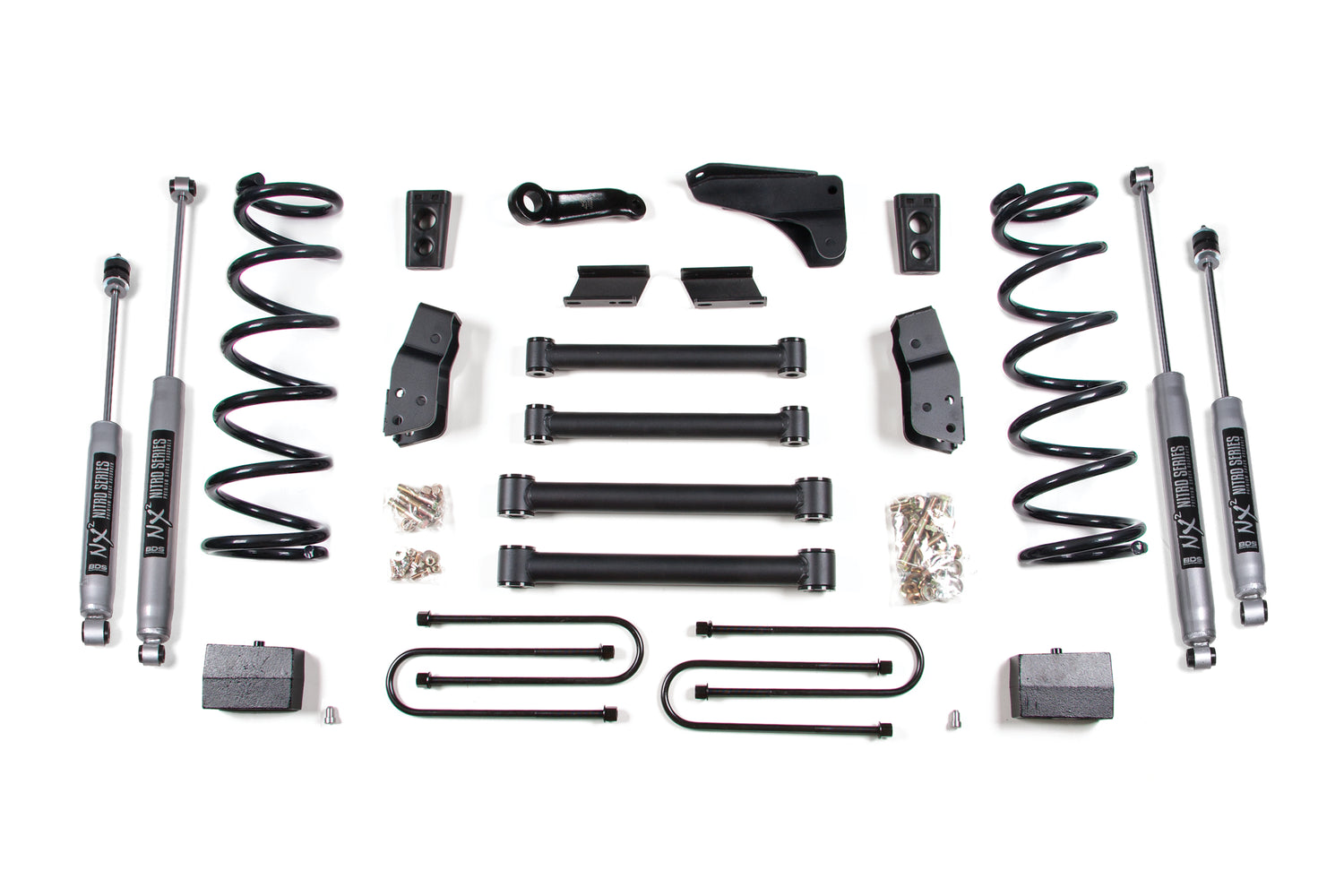

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012621, 2008 Dodge 6 Inch Box Kit (UPC 658848612802)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
