2009-2013 Ram HD 6" Lift Kit with NX2 Nitro Shocks (BDS673H)

BDS Suspension 6" lift kit for the 2009-2013 Dodge Ram 2500 diesel-powered truck, with clearance for up to 36" tires. Lower control arms run longer than stock to rotate the axle into proper alignment, with a relocation bracket to preserve factory handling. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, all four control arms, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matched set of NX2 Nitro shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 Nitro Series nitrogen-charged shocks tuned for improved on- and off-road ride
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
• Although unusual, if driveline vibration occurs, order appropriate transfer case drop kit 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA) available in options or t-case index kit. 122801 auto or 122802 for manual transmission.
• Optional transfer case drop kits fit automatic transmission models only.
• Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
• 102009 Rear brake lines will not fit 2012-13 models.

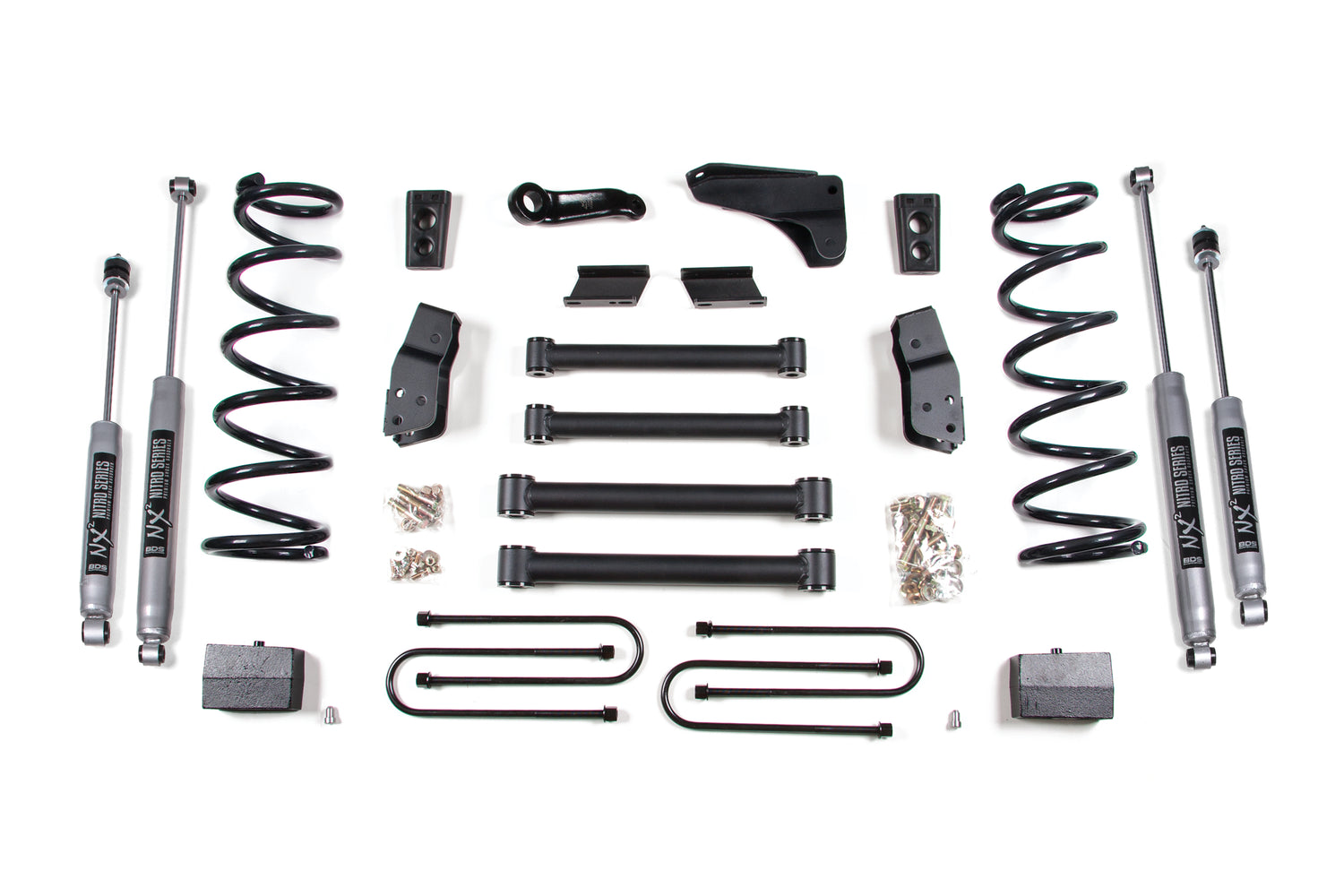

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012622, 09-10 Dodge Ram 2500 6 Inch Box Kit (UPC 658848612819)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
