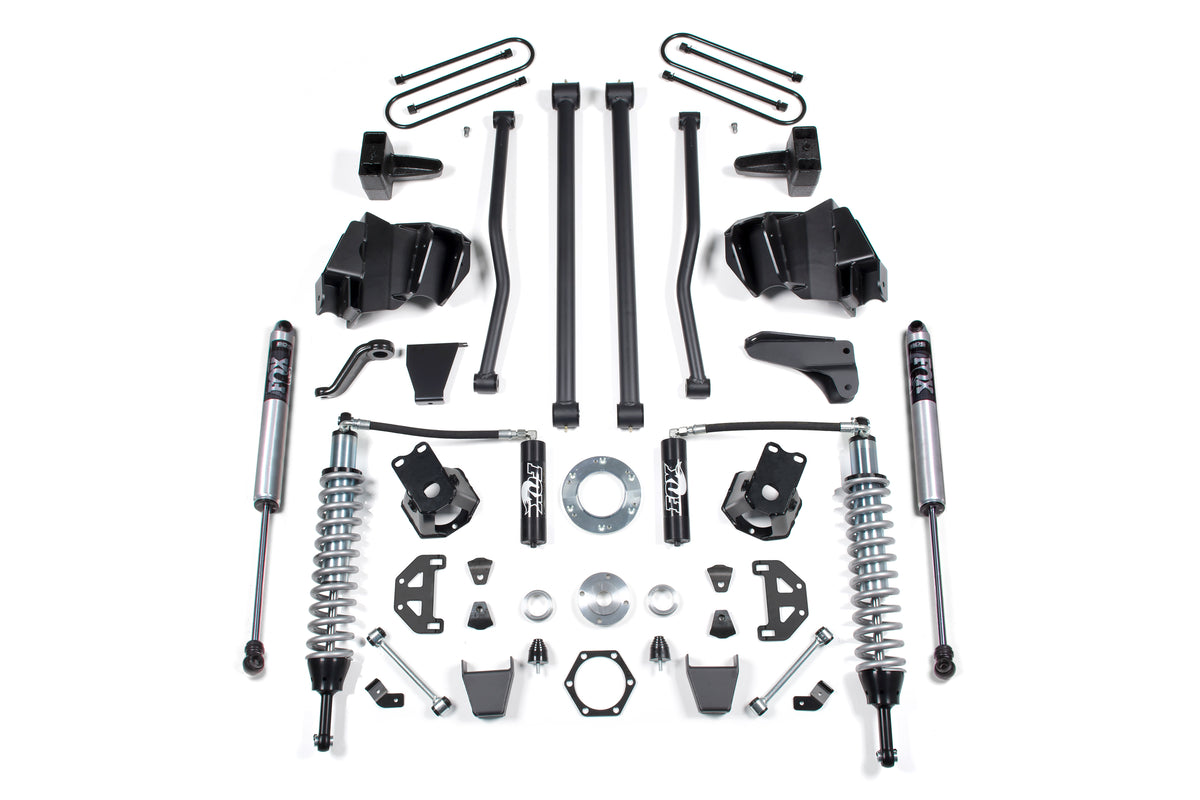

2009-2013 Ram HD 6" Long Arm Conversion Kit with FOX 2.5 Performance Shocks (BDS674F)

This BDS 6" long arm conversion kit maximizes the capability of your 2009-2013 Ram 2500 4WD diesel, with clearance for up to 37" tires. Up front it runs FOX 2.5 remote-reservoir coil-overs, all four control arms plus mounting brackets, a forged drop pitman arm and track bar bracket for steering correction, bump stops and sway bar links. The long-arm upgrade uses massive 1/4" steel frame brackets and oversized formed upper and lower arms (greaseable polyurethane bushings) to add strength, reduce caster change through travel, and improve offroad articulation. The rear uses heavy duty cast steel blocks, longer u-bolts and matching FOX 2.0 Performance shocks.

Features

• FOX 2.5 remote-reservoir coil-overs for improved damper performance over stock
• Tubular long arms reduce caster change for a more controlled feel on and off road
• Includes weld-in axle reinforcements for superior strength
• Retains factory triangulation of the arms for added suspension stability
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs
• Front track bar relocation bracket to reposition axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Rear FOX 2.0 performance series gas shocks for improved ride and offroad performance
• Multi-leaf progressive rear design maintains factory payload weight ratings

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
• Although unusual, if driveline vibration occurs, order the appropriate transfer case drop kit: 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA), available in options or t-case index kit 122801 auto or 122802 for manual transmission.
• Optional transfer case drop kits fit automatic transmission models only.
• Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
• 102009 rear brake lines will not fit 2012-13 models.

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012601, 09-10 Ram 6 Inch Long Arm Box Kit (UPC 658848612673)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS122810, 03-12 Ram 2500 Coilover Mount Kit (UPC 658848619825)
• FOX88402096, Kit: BDS 03-13 Ram 2500/3500 Front Coilver, 2.5 Series, R/R 6 inch Lift (UPC 814897013650)
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
