2009-2013 Ram HD 8" Long Arm Conversion Kit with FOX 2.0 Performance Shocks (BDS675FS)

BDS Suspension 8" long-arm conversion lift kit for the 2009-2013 Dodge Ram 2500 diesel-powered truck, with clearance for up to 38" tires. Long tubular lower control arms reduce caster change through wheel travel for a more controlled feel and retain factory arm triangulation for stability. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, all four control arms, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matched set of FOX 2.0 Performance shocks.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• FOX 2.0 Performance Series nitrogen-charged shocks tuned for improved on- and off-road ride
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

Notes

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 4.5 in. Backspace

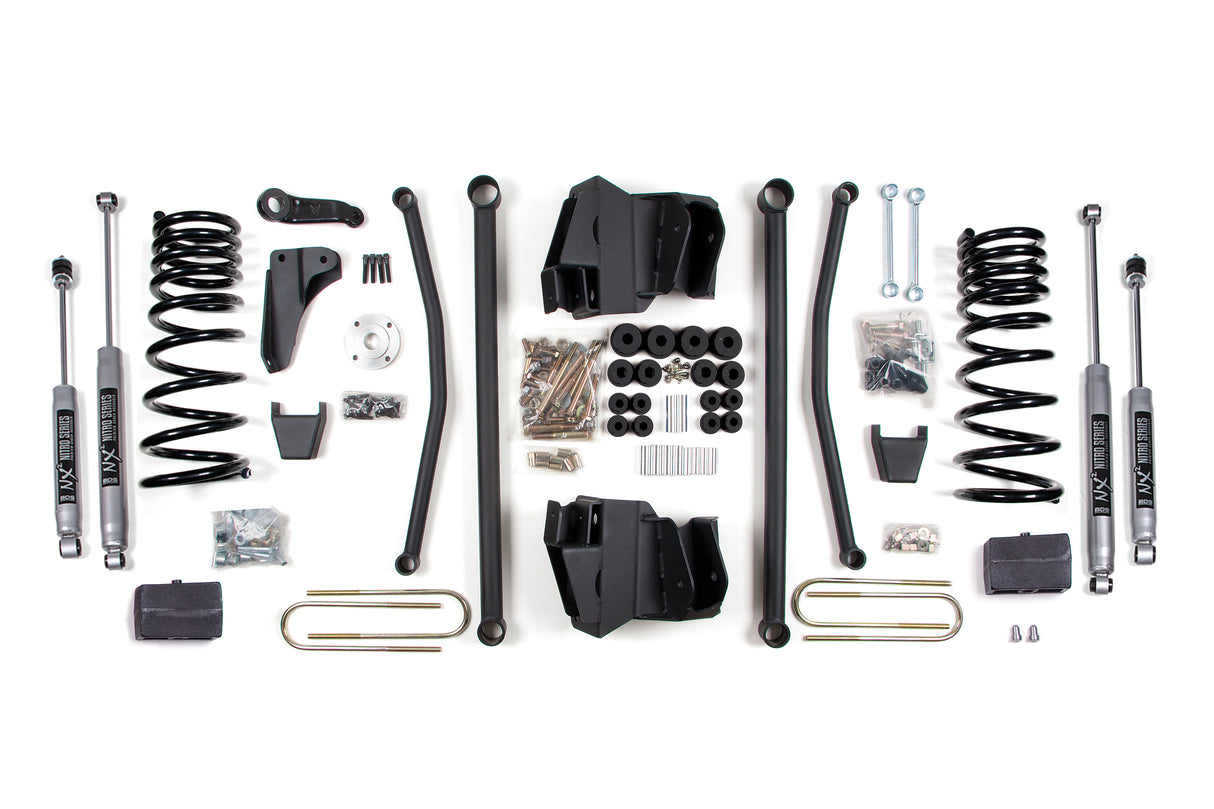

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS012803, 09-10 Dodge Long Arm Box Kit (UPC 658848612864)
• BDS032801, Dodge 8in Coil spring (UPC 658848616442)
• BDS122811, 2009-13 Ram 2500 6bolt Indexing Ring Kit (UPC 658848619832)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1 Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
