2009-2013 Ram HD 8" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS630H)

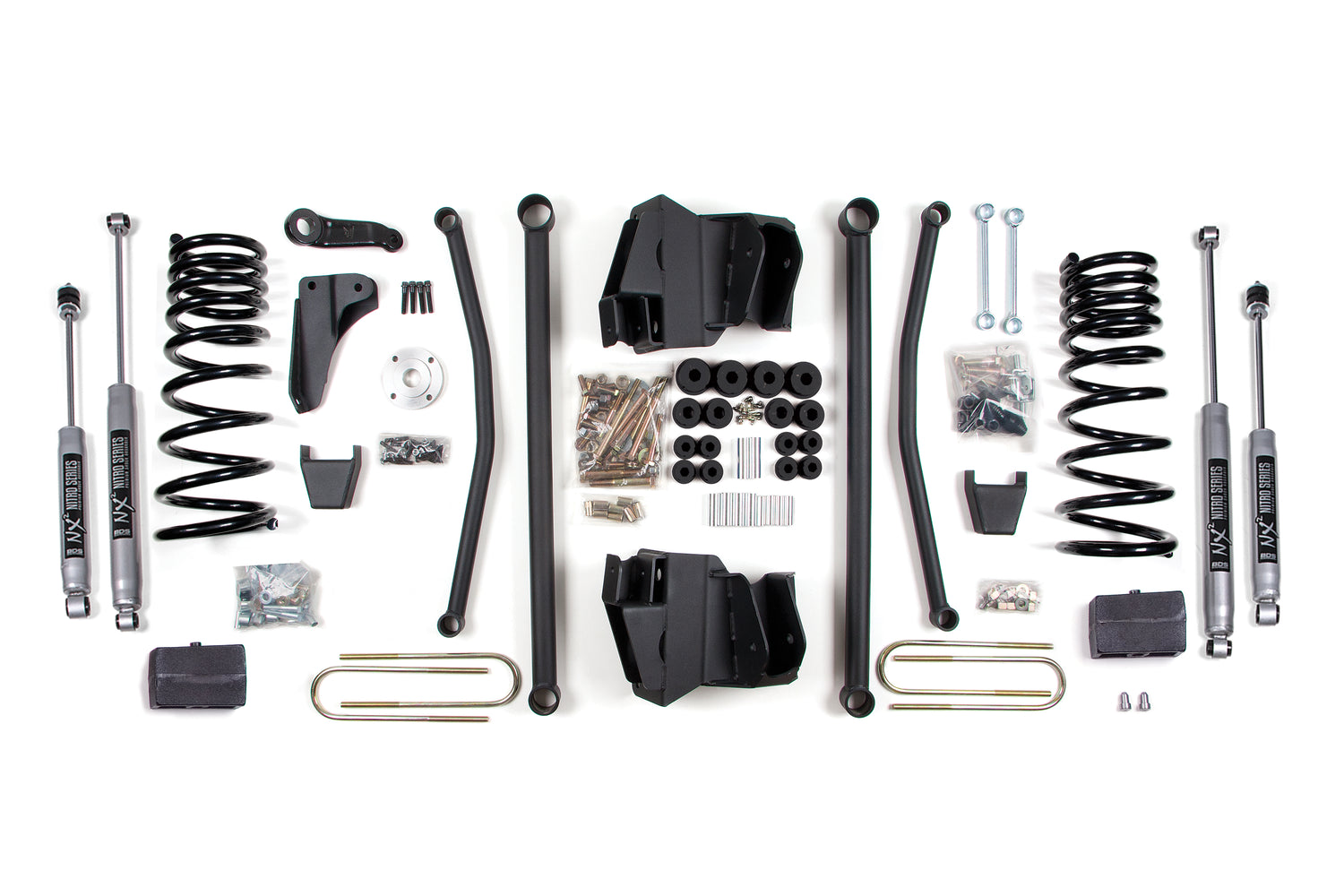

This BDS 8" long arm lift kit sets up your 2009-2013 Dodge Ram 2500 right with clearance for up to 38" tires. Tubular long lower control arms reduce caster change through the travel for a more controlled feel while keeping the factory arm triangulation. Up front it includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm and track bar bracket, bump stops, and sway bar links. The rear runs heavy duty cast steel blocks and longer u-bolts, matched to NX2 Nitro shocks.

Features

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Blocks are made from cast iron for strength.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require UBT4068.
• Rear lift options will not fit dually applications.
• If driveline vibration occurs, order either transfer case drop. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
• 102009 Rear brake lines will not fit 2012-2013 models.
• Additional front driveline modification may be required.
• Exhaust modification will be required for dual rear shock kit 122009.
• 2500 Gas models will require modification to the front exhaust crossover pipe on driver side for proper clearance when a transfer case indexing ring kit is installed

Includes

• BDS012518, Dodge 5in Rear Block Kit w/3-1/2 (UPC 658848612611)
• BDS012801, Dodge Control Arm Mounts (UPC 658848612840)
• BDS012802, Dodge Control Arm Box Kit (UPC 658848612857)
• BDS012803, 09-10 Dodge Long Arm Box Kit (UPC 658848612864)
• BDS032801, Dodge 8in Coil spring (UPC 658848616442)
• BDS122801, 03-10 Ram T-Case Indexing kit (UPC 658848619801)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
