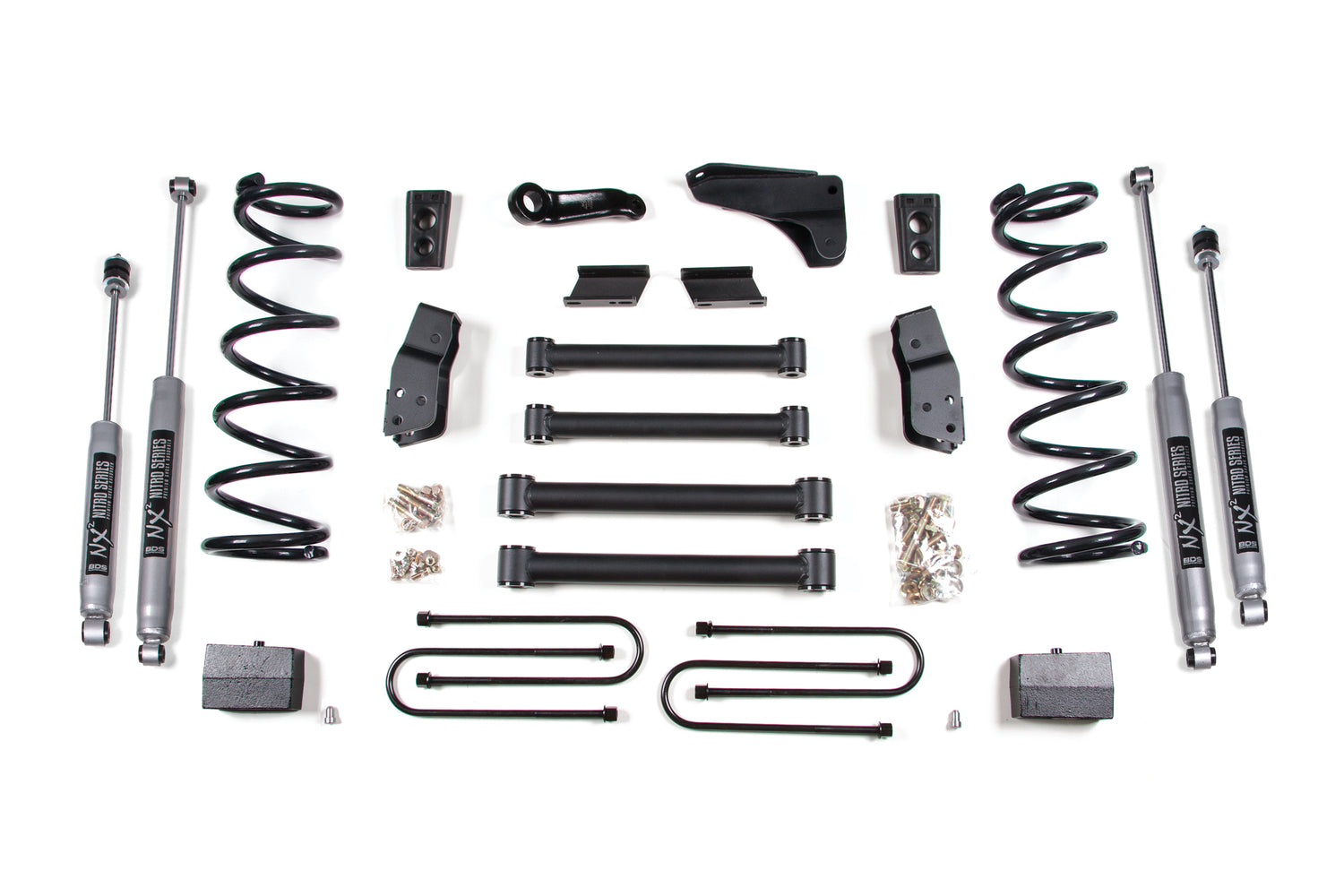

2009-2013 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS677FS)

BDS Suspension 6" lift kit for the 2009-2013 Dodge Ram 2500 gas-powered truck, with clearance for up to 36" tires. Lower control arms run longer than stock to rotate the axle into proper alignment, with a relocation bracket to preserve factory handling. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, all four control arms, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matched set of FOX 2.0 Performance shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• FOX 2.0 Performance Series nitrogen-charged shocks tuned for improved on- and off-road ride
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Notes

• Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
• Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
• If driveline vibration occurs, order transfer case index kit #122801 or 122802.
• 102009 Rear brake lines will not fit 2012-13 models.

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012622, 09-10 Dodge Ram 2500 6 Inch Box Kit (UPC 658848612819)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003)
