2009-2013 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS1770H)

Improve the ride and style of your 2009-2013 Dodge Ram 2500 Power Wagon 4WD with this BDS 4" lift kit that clears up to 36" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, all four control arms with a relocation bracket to keep proper suspension geometry, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned NX2 shocks. The rear uses heavy-duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 performance shocks.

Features

• Tubular short arms improve strength, handling, and caster control
• Heavy-duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive-rate coil springs
• Front track bar relocation bracket to reposition the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• These vehicles were manufactured with two different diameter rear axles. Measure the diameter of your rear axle before ordering; it should be 3-1/2" or 4".
• May require front exhaust modification to clear the front driveshaft at full droop.

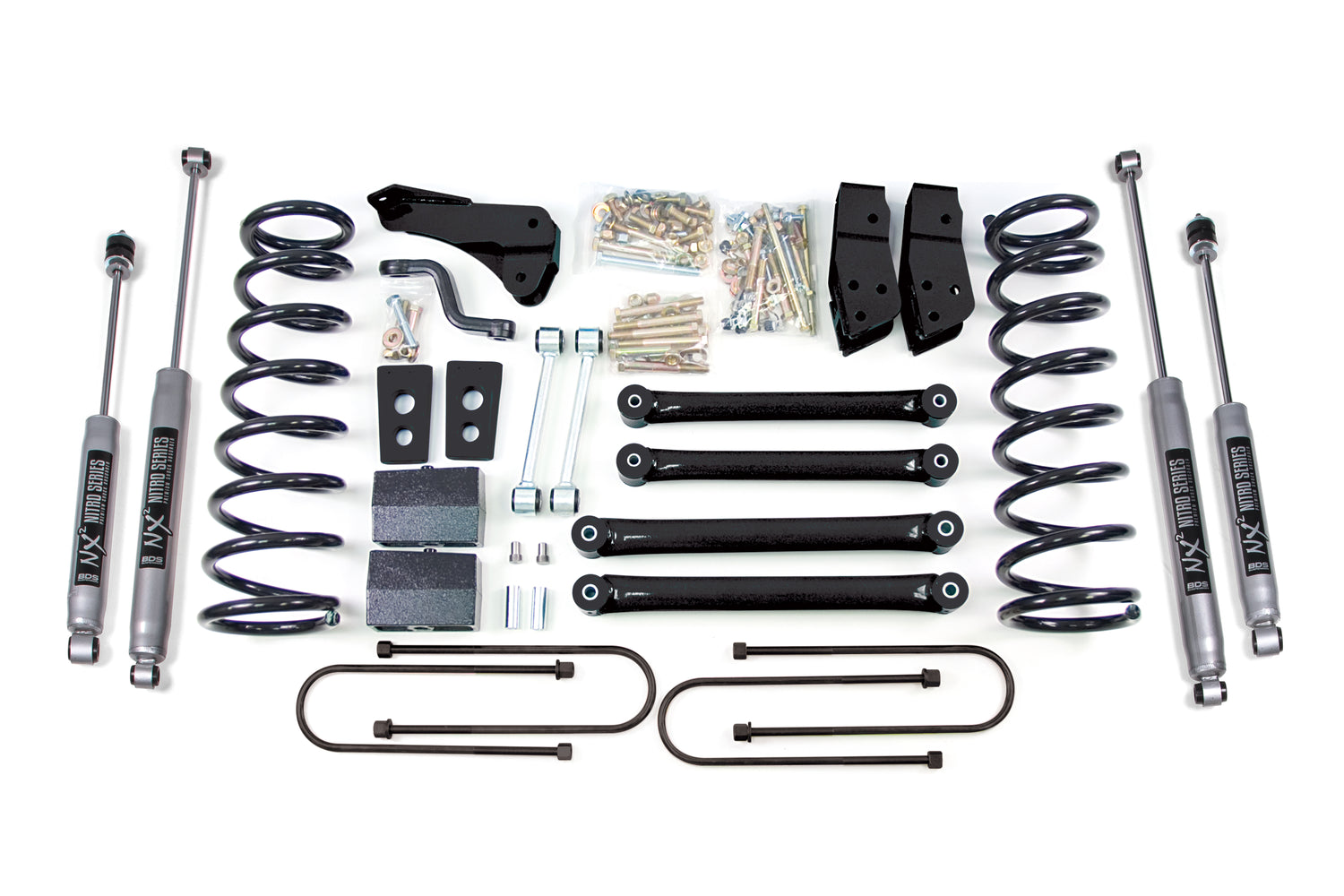

Includes

• BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring (UPC 658848611294)
• BDS012622, 09-10 Dodge Ram 2500 6 Inch Box Kit (UPC 658848612819)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS122401, 05-13 Power Wagon Sway Bar Links (UPC 658848619467)
• BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2 (UPC 711745609617)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
• UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt (UPC 711745613027)
