2009-2013 Ram HD 4" Lift Kit with FOX 2.0 Performance Shocks (BDS615FS)

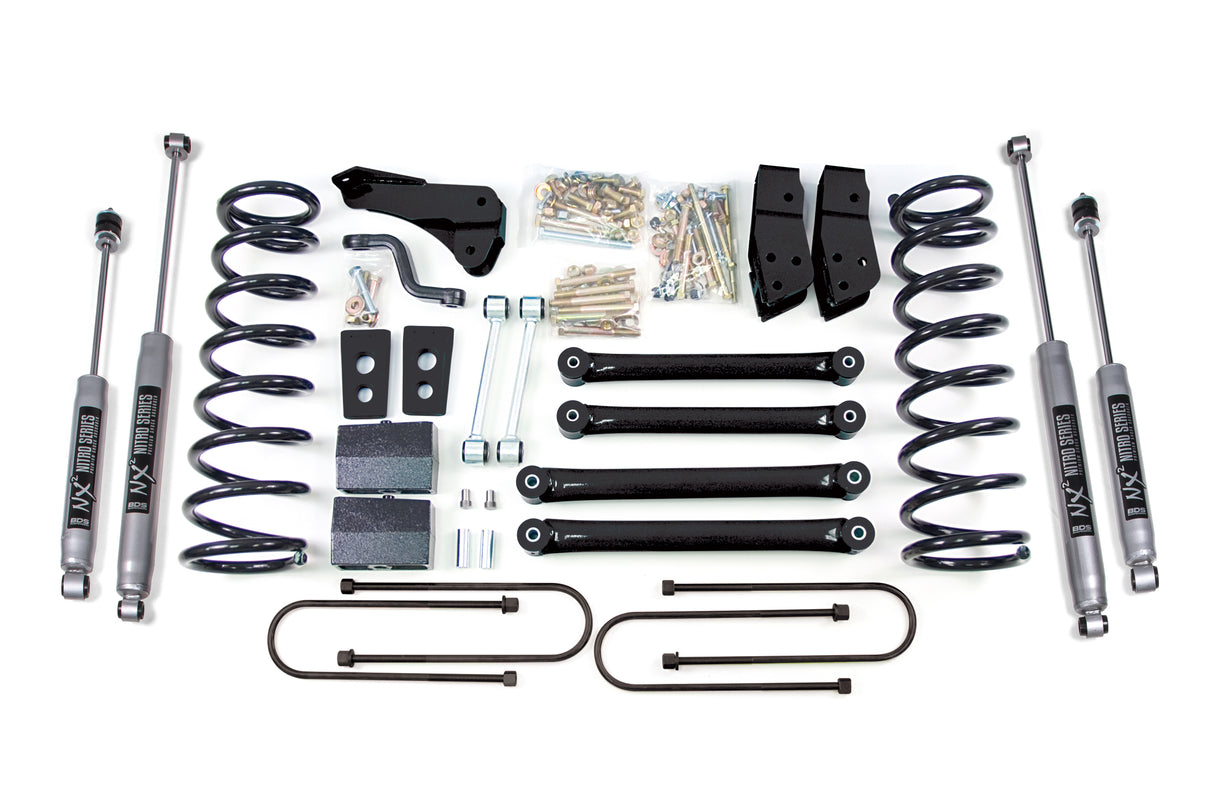

Improve the ride and style of your 2009-2013 Dodge Ram 2500 Power Wagon 4WD with this BDS 4" lift kit, with clearance for up to 36" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, all four control arms plus a relocation bracket (longer lower arms rotate the axle for proper alignment), a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and NX2 or FOX 2.0 shocks. The rear uses heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series IFP gas shocks for improved ride and offroad performance
• Blocks are made from cast iron for strength
• Tapered for correct pinion angle
• Steel pin and hole are offset to restore axle position
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• These vehicles were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
• May require front exhaust modification to clear front driveshaft at full droop.

Includes

• BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle (UPC 658848612376)
• BDS012622, 09-10 Dodge Ram 2500 6 Inch Box Kit (UPC 658848612819)
• BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit (UPC 658848616411)
• BDS122401, 05-13 Power Wagon Sway Bar Links (UPC 658848619467)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
