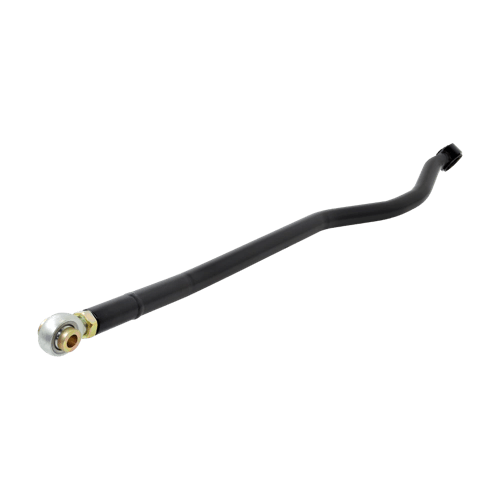

2009-2013 Ram HD Front Adjustable Heavy Duty Track Bar (77-1509)

The ReadyLIFT Adjustable Heavy-Duty Front Track Bar for 2009-2013 Dodge Ram 2500/3500 4WD trucks is a critical upgrade for both stock and lifted vehicles. Designed to address the lateral "swing" of the front axle that occurs when a straight front axle truck is lifted, this track bar ensures the axle remains properly centered under the frame. Constructed from 1-3/8" solid steel—larger and stronger than the 1.25" stock bar—it improves steering response, handling, and overall driving comfort for trucks with up to 6 inches of lift.

Features

• Constructed from high-strength 1.325" (effectively 1-3/8") solid steel for maximum durability and rigidity.
• Adjustable design allows for precise axle centering on trucks ranging from stock height to 6 inches of lift.
• Includes a 7/8-14 threaded heavy-duty rod end for fine-tuned adjustability.
• Features an OEM-type Clevite rubber bushing pressed into a welded steel end fitting for a quiet, reliable pivot.
• Significantly improves handling and driving comfort by reducing unwanted axle movement.
• Eliminates the steering "shimmy" often associated with lifted straight-axle trucks.
• Direct replacement for the factory track bar with no permanent vehicle modifications required.

Notes

• A professional wheel alignment is required after installation to ensure optimal steering and tire wear.
• Headlamp aim should be checked and adjusted for safety following any changes to the vehicle's ride height.
• Advanced Driver Assistance Systems (ADAS) should be recalibrated to maintain proper monitoring and function.
• Installation by a certified mechanic is recommended due to the heavy-duty nature of the suspension components.
• Specifically designed for the older steering/suspension geometry and is not compatible with newer radius arm trucks.

Compatibility Notes

• Fits 2009–2013 Dodge Ram 2500 and 3500 4WD Heavy Duty models.
• Compatible with trucks ranging from stock height up to 6.0 inches of lift.
• Not for use with the newer style radius arm design suspension found on later model years.

Specs

• Material: 1-3/8" Solid Steel.
• Adjustment Range: Stock height up to 6.0" of lift.
• Bushing Type: OEM-Style Clevite Rubber.
• Rod End: 7/8-14 Threaded.
• Kit Contents: One (1) Adjustable Heavy-Duty Front Track Bar and all necessary mounting hardware.
