2009-2013 Ram HD Lift Kit (ICOK214550T)

Level up your 2009-2013 Ram HD with this complete ICON suspension system. 4.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.25" Backspace / 13mm Offset
• ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
• ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
• Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

Important Notes

• Springs Are Rated For Diesel Engines Only
• An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Call ICON For 2013 Ram 2500/3500 Vehicles
• Ships in Multiple Boxes

Manufacturer Description

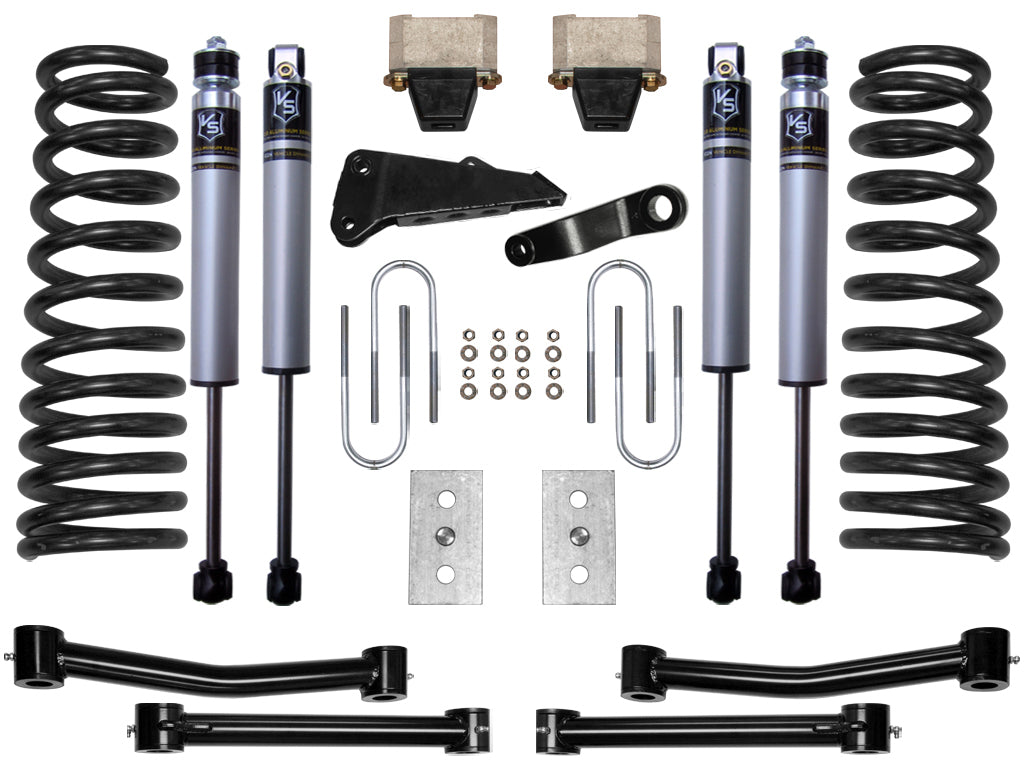

2009-2012 Ram 2500/3500 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 1 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This entry level system with billet link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
