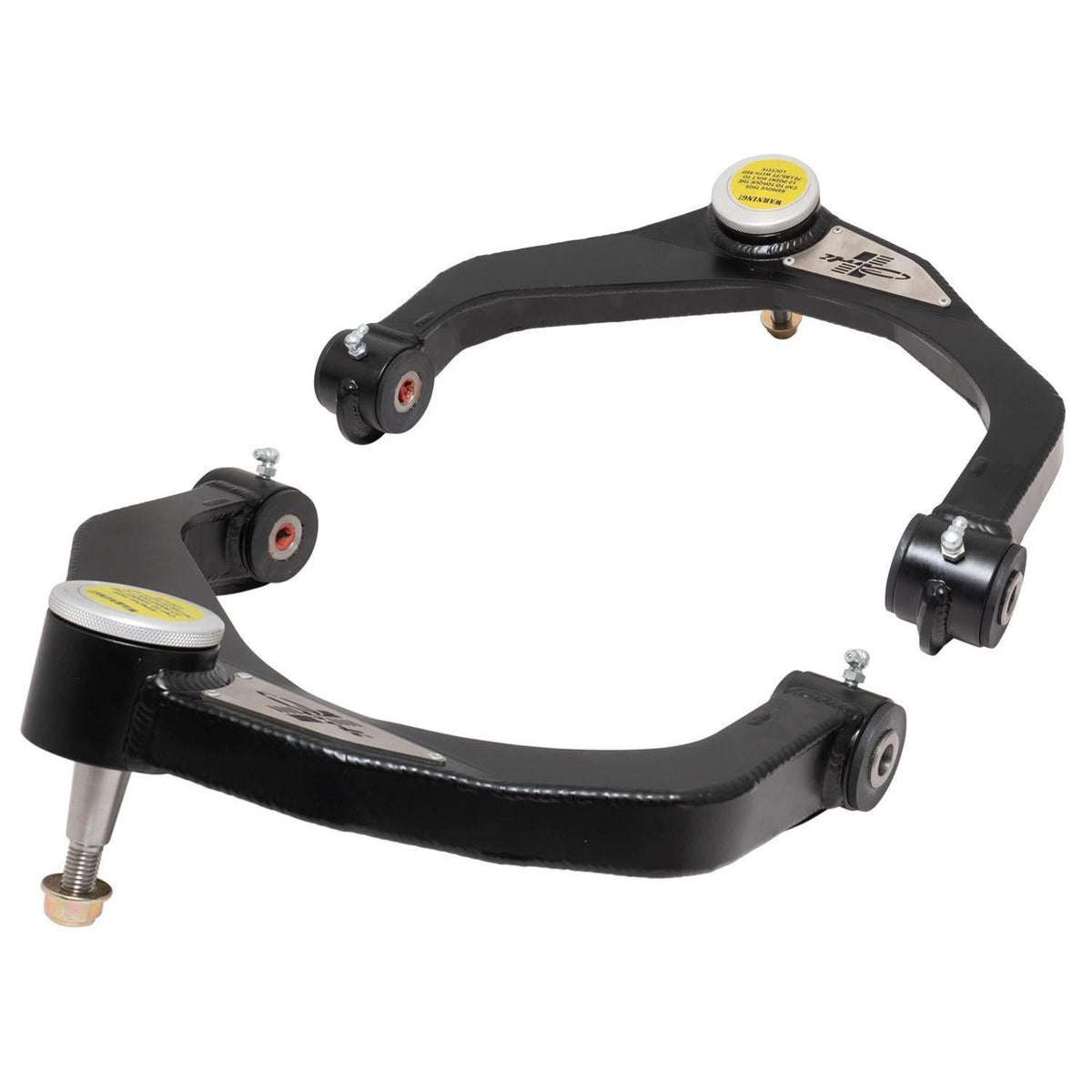

2009-2024 Ram 1500 Boxed Fabricated Upper Control Arms (CS-RAM15UCA-09)

Description

Make these the last set of control arms you'll ever buy; Utilizing a strategic combination of 1/8" and 3/16" cold rolled steel, 1" FK Uniball, and in-house machined 17-4 Stainless Uniball Pin combined to allow 1" more misalignment. This provides superior strength, increased droop travel, and reduced vibrations even under the most stringent conditions and driving applications.

Part Number: CS-RAM15UCA-09

Features

• 1" K uniball with 17-4 stainless uniball pin and anodized aluminum cap for protection against the elements
• Corrects geometry on leveled Ram 1500 suspension systems
• Frame side mounting bushings are serviceable and equipped with easily accessible grease fittings
• Finished in durable black powder coat
• Designed to be used with 2.5" of front lift
• Pivot point position was modified to correct the geometry for the 2.5" Carli lift systems

Notes

From Carli Suspension

Taking the Commuter and Performance Suspension Systems to the next level, the Carli Upper Control Arms correct for leveled geometry while extending both travel and service life. Utilizing a strategic combination of 1/8" and 3/16" cold rolled steel ensures the backbone of the arm is strong enough to exceed the expectations of even the most stringent Carli customer while the black powder coat keeps them looking as good as they perform.

Protected by an anodized aluminum cap, the 1" FK Uniball and in-house machined 17-4 Stainless Uniball Pin combine to allow 1" more misalignment (droop travel) than the restrictive factory ball joint. Next, the pivot point position was modified to correct the geometry for the 2.5" Carli lift systems. At the frame, serviceable Energy Suspension bushings and crush sleeves reduce vibrations and provide a solid, reliable mounting solution. The uniball and bushings are replaceable making this the last set of arms you’ll ever need to buy.

These arms are designed to be used with 2.5" of front lift. With this, we recommend an 8.5" Wide wheel with 4.5" Backspace be utilized with a 33" tire for best fitment and minimal trimming. Customers most commonly run 4.5"-4.75" Backspace wheels with 35" Tires requiring more trimming. 4.5" Backspace is strongly recommended.
