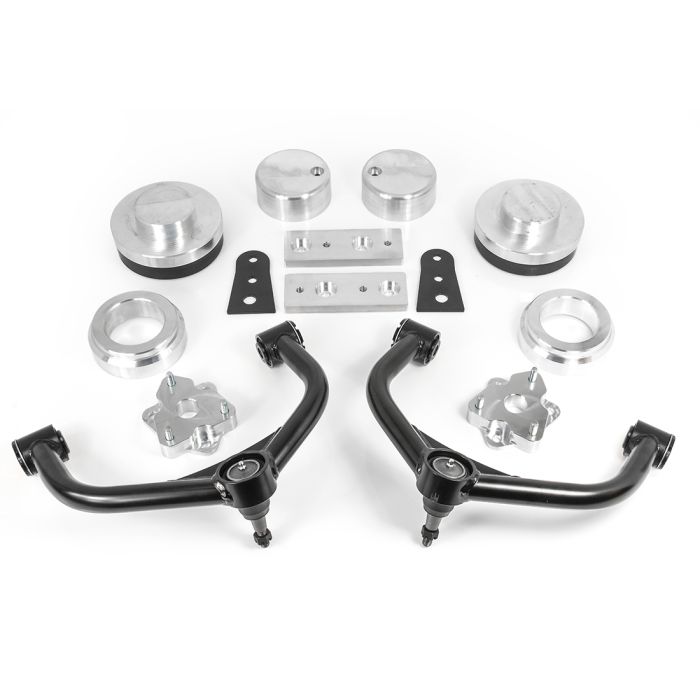

2009-2024 Ram 1500 4" Lift Kit (69-1040)

Description

Unlike urethane spacer kits that can compress the springs and deteriorate over time, this ReadyLift 4" SST lift kit features CNC-machined aircraft-grade billet Aluminum construction designed to last the life of the vehicle. Tubular Upper Control Arms resolve the common problem of the factory ball joint falling out of the stock control arm. And pre-load spacers to limit droop without increasing CV angles, working well within OEM tolerances.

Part Number: 69-1040

Features

• 4" front lift - 2" rear lift
• Tubular control arms with corrected ball joint angle & HD ball joints
• CNC-machined billet aluminum top strut extensions
• Spring preload spacers
• CNC-machined billet rear bump stop extensions
• Front sway bar mount spacers
• Rear sway bar end link drop brackets
• Poly/CNC billet rear coil spring spacers

Tire Fitment:

• 35x12.50 Max on a 9" wide wheel with 0 offset
• Some minor trimming may be necessary, depending on the tire design
• 285-50-R22
• 285-65-R20
• 285-75-R18
• 35x11.50 Max on the factory wheels - 295-65-R20

Notes

• No cutting of OEM parts (may require minor trimming) or welding
• NOT intended for off-road abuse.
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
• Not for use on trucks with factory air suspension
