2010-2011 Ram HD 4x4 Diesel 3.0" Lift Unchained Long Arm System (CS-DUC35-10-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$19,681.92 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

The Unchained 3.0" is the apex of heavy-duty suspension, transforming your 2010-2011 Cummins into an elite off-road weapon without sacrificing its soul on the pavement. By swapping the short arms for a massive long-arm geometry and King 3.5" shocks, this system delivers trophy-truck levels of damping and travel designed to handle high-speed desert runs and technical terrain with absolute composure.

Torsion Sway Bar

Required

Full Progressive Leaf Springs

Required

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Long Travel Airbag Option

Optional

Steering Stabilizer

Optional

Front Hydraulic Bump Stops

Optional

Axle Truss

Optional

Subtotal

Part Specs
Warranty
Description

The Unchained 3.0" is the apex of heavy-duty suspension, transforming your 2010-2011 Cummins into an elite off-road weapon without sacrificing its soul on the pavement. By swapping the short arms for a massive long-arm geometry and King 3.5" shocks, this system delivers trophy-truck levels of damping and travel designed to handle high-speed desert runs and technical terrain with absolute composure.

Part Number: CS-DUC35-10-D

Features
  • Massive 3.5" King Shocks.
  • Internal Gusseted Long Arms.
  • Tunable Rear Bypass Shocks.
  • Increased 11.25" Front Travel.
  • Full Progressive Leaf Springs.
  • Superior 17-4 Stainless Shafts.

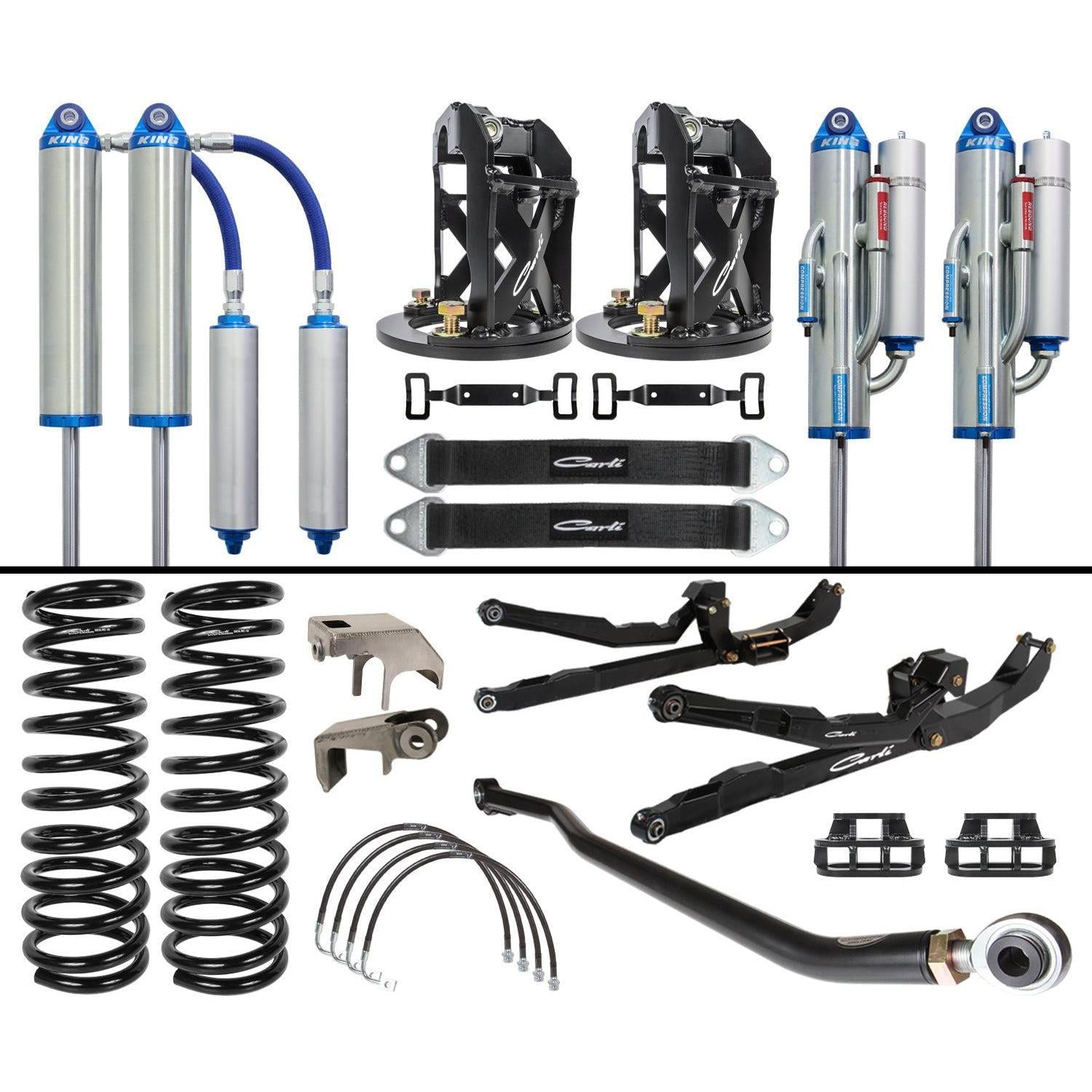

Includes
  • Linear-Rate Coils
  • Long Arm System
  • Track Bar
  • Unchained 3.5 Shocks, Stainless Shafts, Limit
  • Straps, Reservoir Mounts
  • Fabricated Shock Tower
  • Rear Shock Mounts
  • Front Bump Drop 1"
  • Braided Brake Lines
  • Rear Gusset Kit
  • 4" Hole Saw and Arbor
Notes
  • Fits Single Rear Wheel (SRW) models ONLY!
  • This System Requires the Torsion Sway Bar and Full Progressive Leaf Springs to properly function
  • Requires Cutting: Installation requires cutting off factory control arm mounts to install the Long Arm brackets
  • Fabrication Needed: Requires boring the factory spring buckets to clear the 3.5" shock bodies (Hole saw included)
  • Safety Recommendation: Given this kit's extreme off-road capability, a roll cage is highly recommended
  • Payload: Rear leaf springs reduce payload; use Long Travel Airbags to restore factory towing specs

Warranty
Limited 1 (One) Year Warranty
