2010-2013 Ram HD 4x4 Diesel 3.0" Lift Pintop System (CS-DPT25-10-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$5,980.32 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

One of the best off-road suspension systems Carli offers, the Pintop 3" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Sway Bar Options

Required

Rear Leaf Spring Options

Required

The HD Options is ONLY for those running a CONSTANT 1,000lbs in the bed at all times.*

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Long Travel Airbags

Optional

Control Arms

Optional

Steering Stabilizer

Optional

Subtotal

Part Specs
Warranty
Description

One of the best off-road suspension systems Carli offers, the Pintop 3" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5" shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-10-D

Features

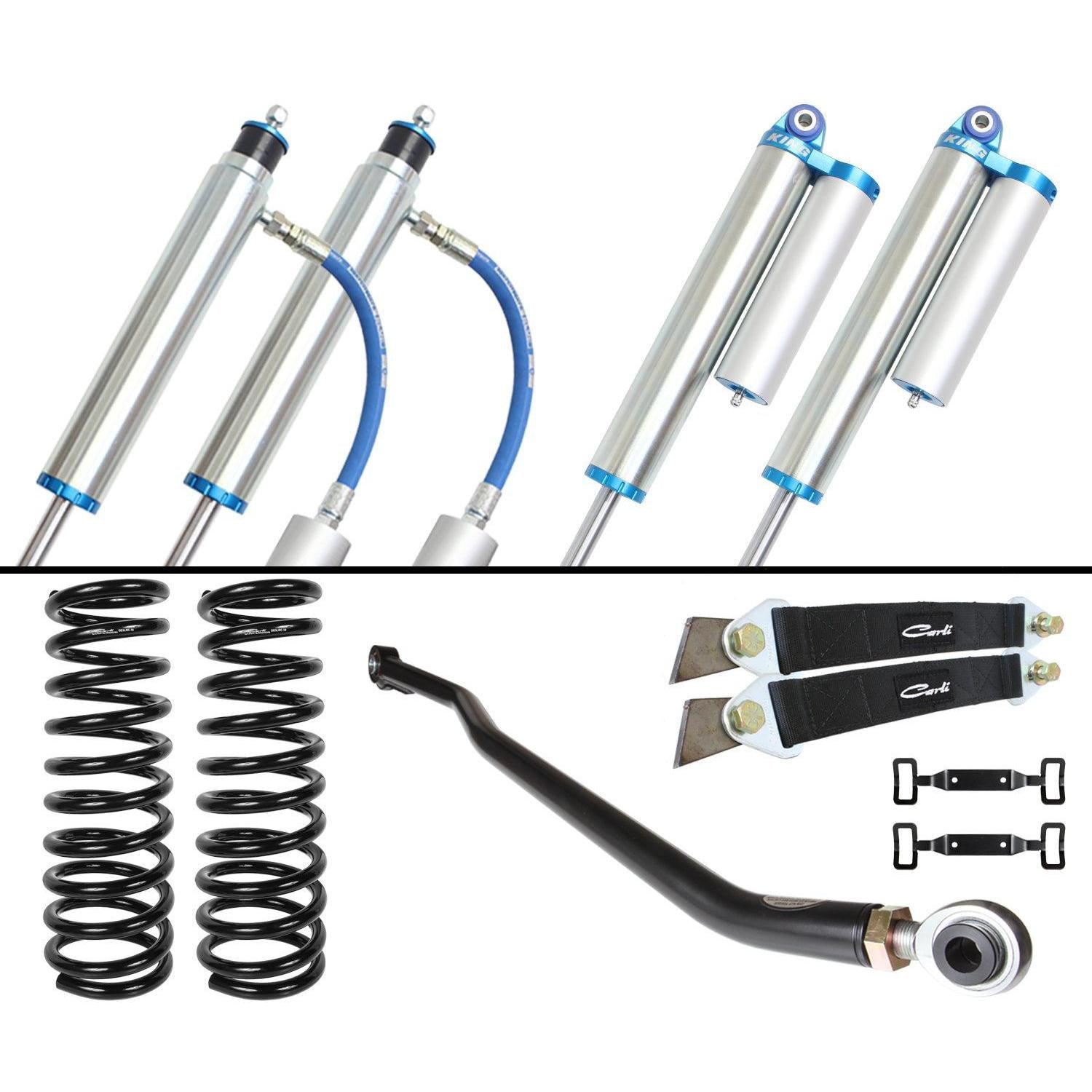

  • Linear-rate front coil springs, front and rear shock package, and adjustable track bar
  • The truck will sit 2.5-3" higher (year/cab configuration dependent), and wheel travel will be increased by 50% thanks to the taller, lighter-rate coil springs.
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
Notes
  • A "Base Kit" SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system

Warranty
Limited 1 (One) Year Warranty
