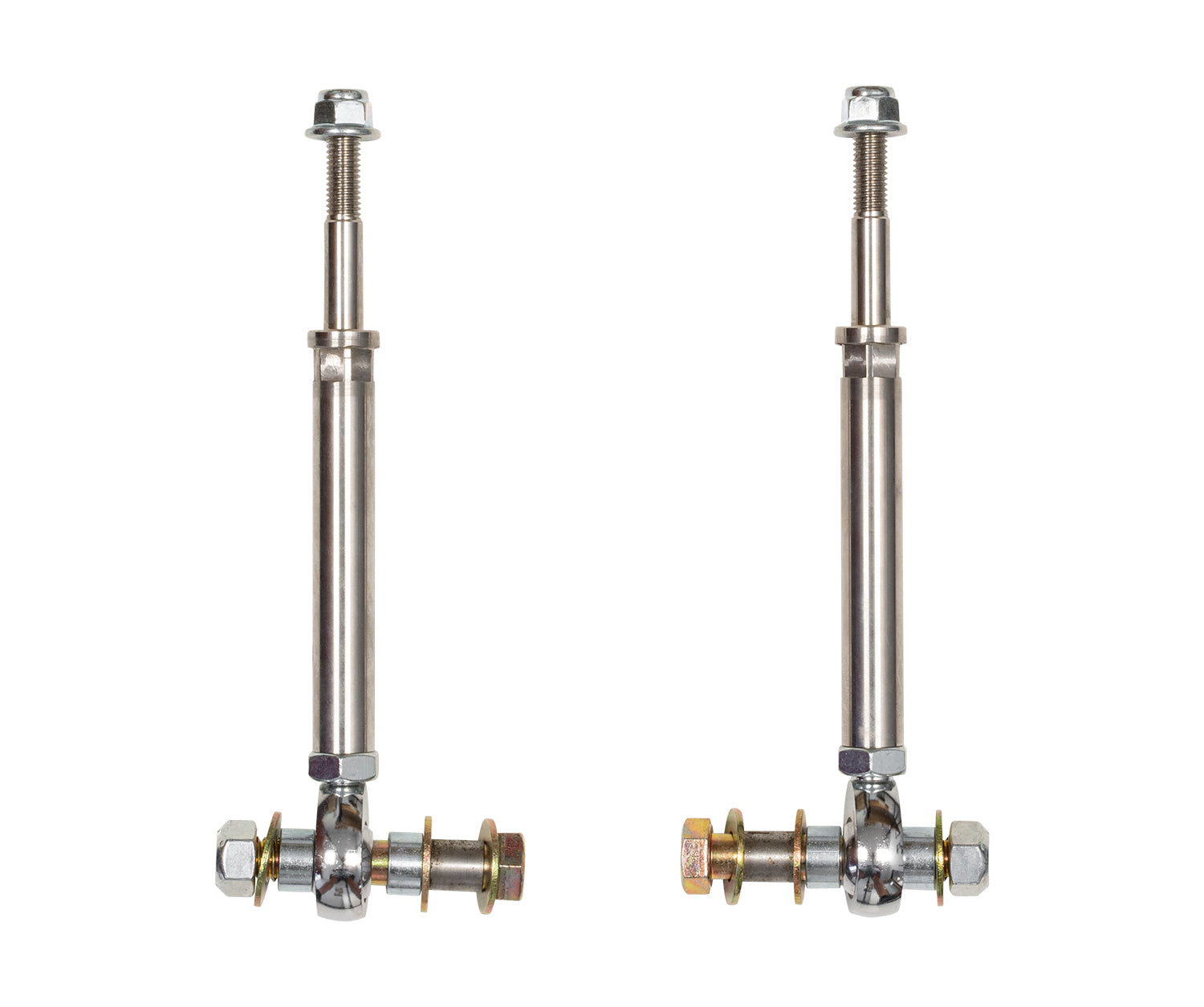

2010-2012 Ram HD Extended Sway Bar End Links (CS-DEL-10)

Carli 12mm Sway Bar End Links for the 2010-2012 Ram HD. These end links are designed for trucks with the 12mm sway bar bolt pattern, restoring proper sway bar geometry on lifted applications. Eliminates sway bar preload for controlled, predictable handling at lift height.

Key Features

• 12mm bolt pattern for specific Ram HD applications
• Corrects sway bar geometry on lifted trucks
• Heavy-duty construction
• Direct bolt-on replacement

From Carli Suspension

Carli’s adjustable stainless end links are machined out of the highest quality 17-4 stainless material making them a lifetime product. Each end link goes through a five stage machining process. At the end of each end link is a 1/2 inch F.K. nylon lined bearing to replace the much weaker factory ball and socket design.

Using an 18mm Deep Socket, check the upper sway bar end link nut (retains the link bushing to the sway bar itself) to see if it fits. 18mm fitment signifies a 12mm end link (CS-DEL-10-12MM). If it’s too large, these are the correct links.
