2010-2013 F-150 4" Lift Kit (BDS1511H)

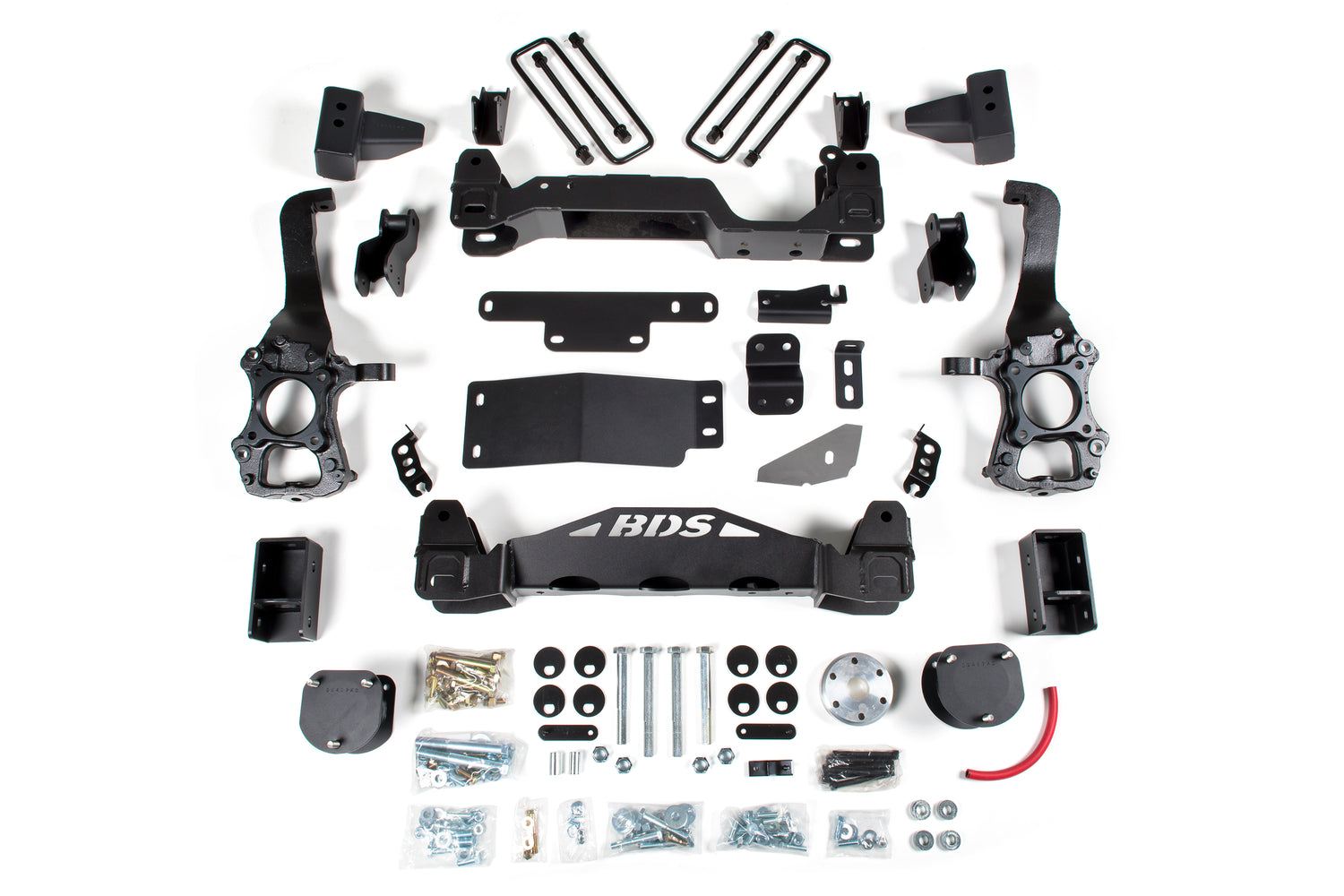

BDS 4" suspension lift kit for the 2010-2013 Ford F150 Raptor 4WD, allowing an easy upgrade to 37" tires. BDS engineered the 4" height to make the best use of the factory FOX shocks while keeping full factory suspension travel. The high-clearance front end uses 1/4" steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets, a skid plate, and CNC-machined ductile iron steering knuckles to correct steering geometry, plus sway bar relocation and brake line brackets. The rear uses lift blocks, longer u-bolts, and shock relocation brackets that retain the factory FOX internal bypass rear shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts level the stance
• Shock relocation brackets retain the factory FOX shocks

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: No
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 58

Notes

• Frame bracket modification and welding required
• Stock wheels cannot be installed
• 37x12.50 on 18x9 w/5" BS - check for proper tie rod end clearance
• FMVSS No.126 Compliant

Includes

• BDS023407, 2010-13 Ford F150 Raptor 4in (UPC 658848615667)
• BDS023622, 2009-2014 Ford F150 Box Kit (3of4) (UPC 658848615827)
• BDS023623, 2009-2014 Ford F150 Box Kit (4of4) (UPC 658848615834)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
